The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.

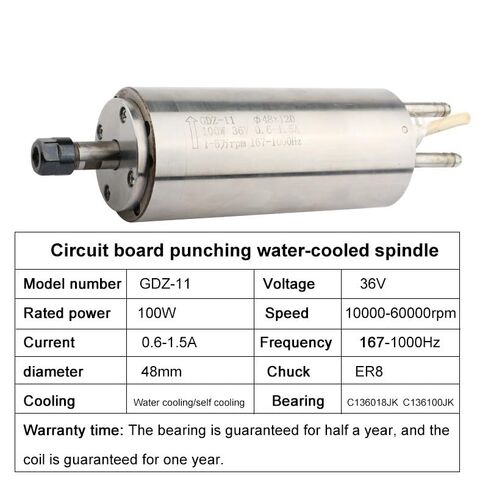

C136018JK C136100JK fully sealed angular contact ball series bearings.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
Accuracy is 0.01mm, coaxial cable is less than 0.0025mm

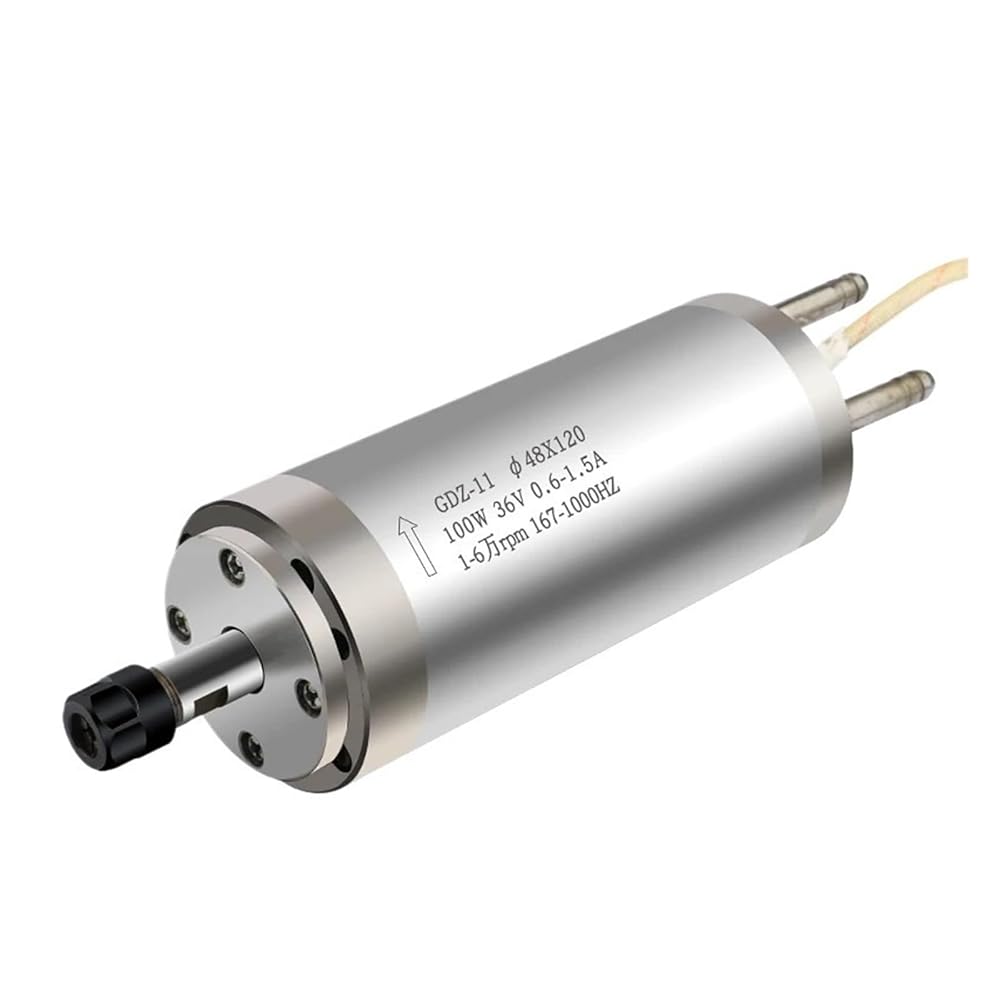

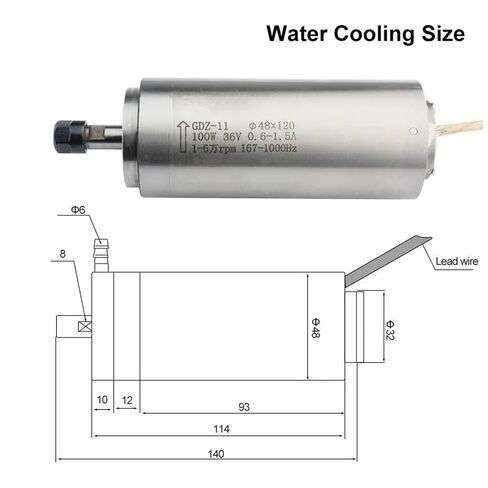

GDZ-11 is divided into water-cooled spindle and self-cooled spindle
The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will break quickly.
The AC spindle motor must be used together with the inverter. The power of the inverter must be equal to or greater than the power of the main shaft.
Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.
When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.

When storing and transporting the spindle, the bearing status inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then slowly increase at 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter sets of the inverter match the spindle parameters.

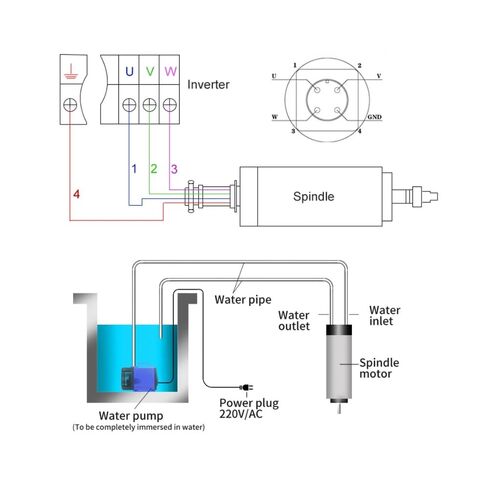

The GDZ-11 spindle motor has lead wires, which are connected to the inverter respectively. If you reverse, you only need to swap any two of the lines. If you have technical questions, please contact us.

Before using the spindle every day, it must run at low speed for 15-20 minutes. Clamp the cutter on the spindle, the chuck nut, chuck and cutter must be clean enough. The shank inserted into the chuck must be larger than 15mm.

The spindle frequency power supply is connected to the rated voltage, and th
