مميزات خاصة

Shaft heat treatment, ultra-high hardness, full grinding, better use effect.

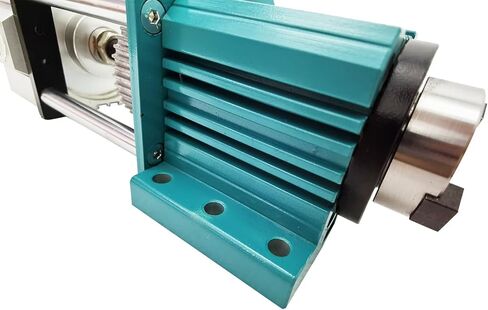

The shell is made of 7075 aluminum alloy, and the spindle is integrated spindle seat, which is durable.
High processing precision, shaft after ultra-high hardness heat treatment and full grinding, spindle taper runout is 0.02-0.05mm.
The servo motor is used as the power, and the servo motor has the function of precise stop, so it can be stopped at the same Angle every time.
BT30 non-powered spindle, equipped with BT30ER20 tool handle, can be used for drilling, tapping, flying tool, milling and other heavy cutting processes. Shaft heat treatment, ultra-high hardness, full grinding; High quality material, longer service life. Suitable for home computers, minicomputers, microcomputers, and automatic tool change function. Mainly used for rough machining, such as drilling, tapping, milling head, milling and other heavy cutting, not suitable for finishing.

وصف

Product Overview

BT30 non-powered spindle, equipped with BT30ER20 tool handle, can be used for drilling, tapping, flying tool, milling and other heavy cutting processes. Shaft heat treatment, ultra-high hardness, full grinding; High quality material, longer service life. Suitable for home computers, minicomputers, microcomputers, and automatic tool change function. Mainly used for rough machining, such as drilling, tapping, milling head, milling and other heavy cutting, not suitable for finishing.
Product Specification

Model: BT30

Color: Blue

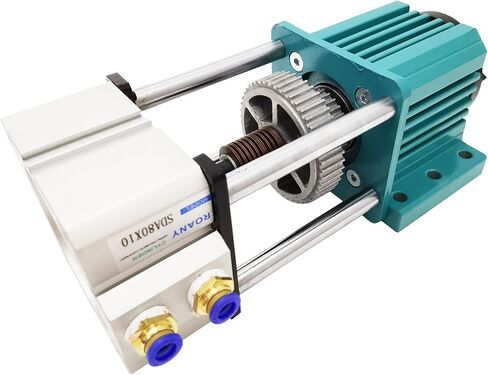

Cylinder type: SDA80X10; 0.8air pressure

Tension: 300KGF

Top speed: 5000rpm

Bearings: 5 Deep groove ball bearings

Machining accuracy: 0.02mm

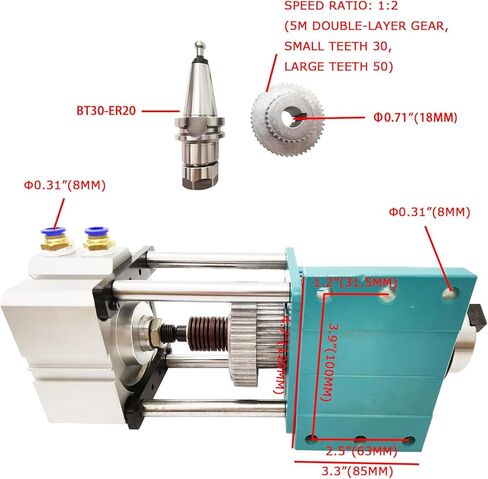

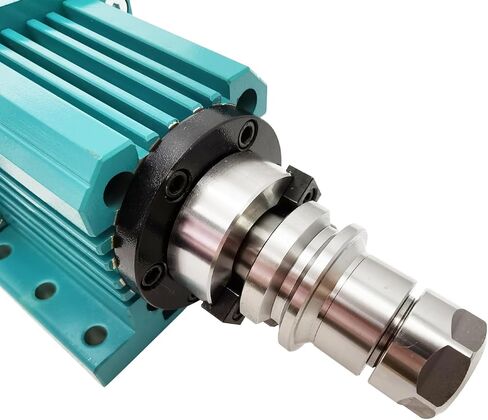

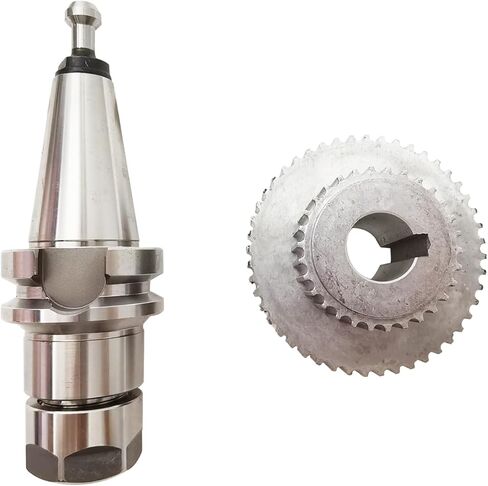

Handle model: BT30ER20; No ER collet clips

Handle stud type: BT30-45°

Center height: 2" (51.5mm)

Total height: 3.6" (91.5mm)

Package size: 13"*7"*6" (35cm*22cm*16cm)
