Engraving 3.0KW ER20 CNC Spindle Motor 220V/380V Water-Cooled Spindle Motor 100x250mm For Router Woodworking Engraving Milling Accessories(3.0kw 380V)

KWD 227.500
Brand
BERWENNY
Category
Sanders
Weight
1 kg
Color3.0kw 380v
Size100x250mm
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

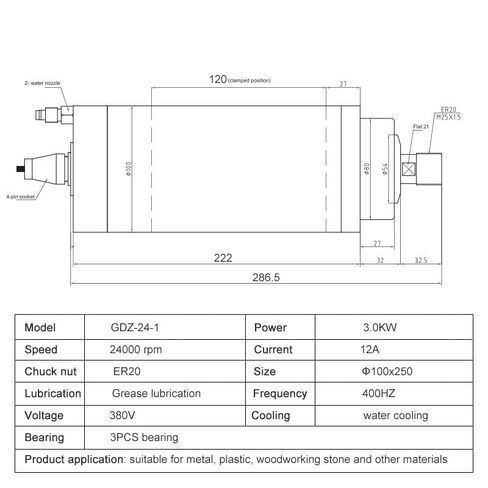

  • Model Number: GDZ-24-1 3.0kw
  • Middle body diameter: 100x250mm
  • Speed regulation mode: change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
  • Cooling method: water cooling

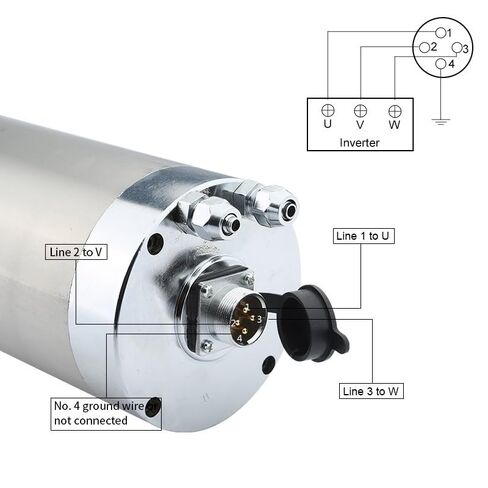

  • Power interface: YX20-4 pin waterproof aviation adapter is optional. The aviation adapter marked "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), and the 4 connected to the inverter will Ground the equipment.

Description

Power: 3.0kw
Voltage: 380v
Current: 12A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 70052/70031
3 ball bearings
Number of phases: 3

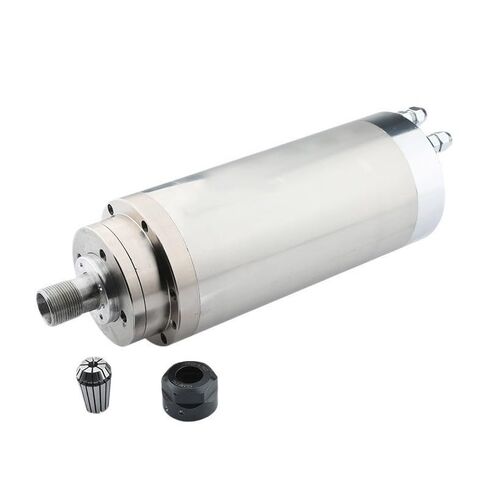

Chuck: ER20
Water-cooled ER20 chuck
Grease lubrication

The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
