7X-45X Extremely Large Zoom Magnification Power
Erect Stereo Sharp Images Over a SUPER Widefield of View
Crystal Clear Original True Color Images
45 Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
30mm SUPER Widefield Eyepieces (see the difference in the above picture)
Both Ocular-Tubes with Adjustable Diopter
Adjustable Interpupillary Distance
Full Optical Glass Elements
4" (100mm) Extremely Large Working Distance
Versatile Boom Stand Covering Large Working Area
Double-Arm Design for 3-Degree Freedom
Able to Place Microscope Head Toward to Any Direction
Rugged Solid Cast Steel Base
30mm SUPER Widefield Eyepieces Included
165mm and 30mm working distance auxiliary objective

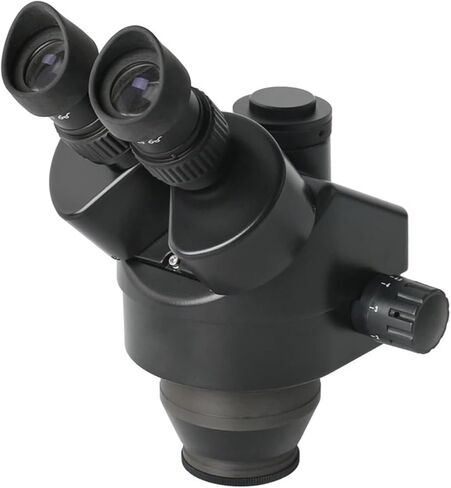

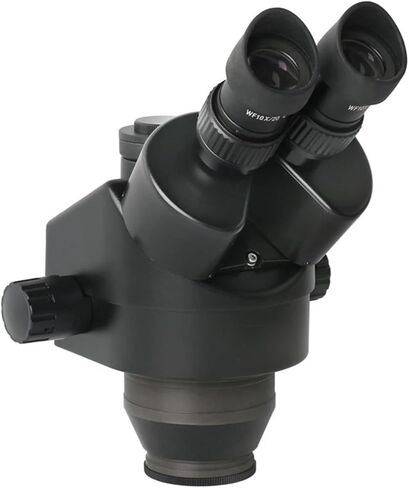

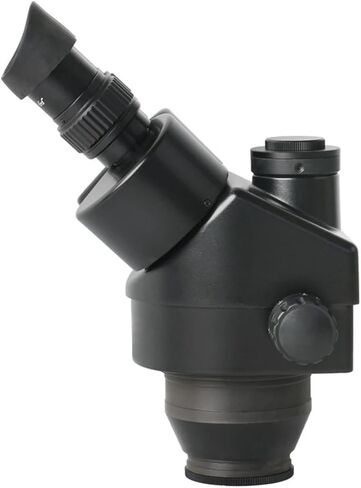

Head: 45 inclined 360 swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20mm
Objective: 0.7-4.5X
Zoom Range: 6.4:1
Diopter Adjustment: 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Field of View: 2-1/2" (65mm) in diameter
Working Distance: 4" (100mm)

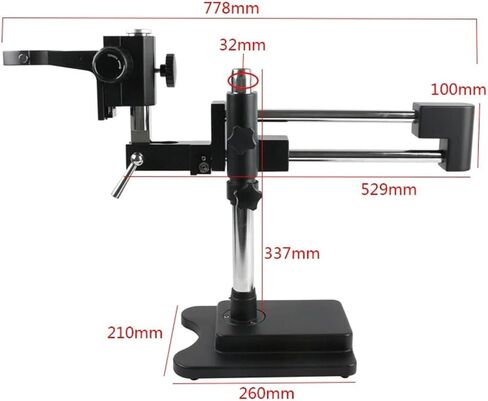

Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0"

Specification

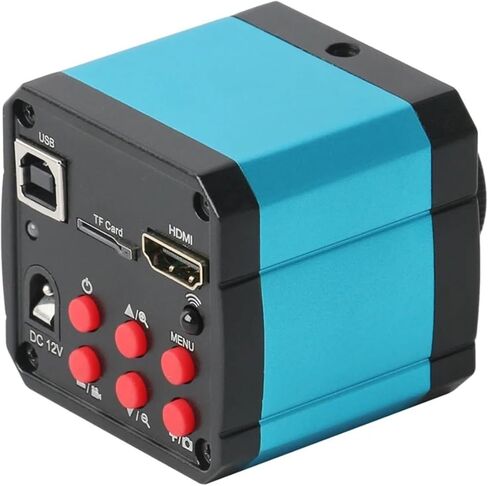

Series:HDMI lndustrial Camera
Sensor size:1/2.8"
Effective pixel:18M
Frame frate:1920*1080@60FPS
Output:USB, HDMI, TF card, remote control
Pixel size:1.43*1.43m
Power:DC-12V/1A
Features:Basic function Brightness, contrast, saturation, white balance,black and white switching, date adjustment
Image adjustment:Exposure, Flicker restrain, Acutance,Gamma, Cb/ Crgain adjustment
Camera function Digital zoom, Horizontal/
vertical mirror, image freeze
Storage:Image capture,video, image preview, SD card formatting
Reticle:4 sets of reticle, can define the
color, line, displacement, and hidden
Crosshair:Can adjust color, line size, hide or display
Package Size :58.00*54.30*68.00mm
