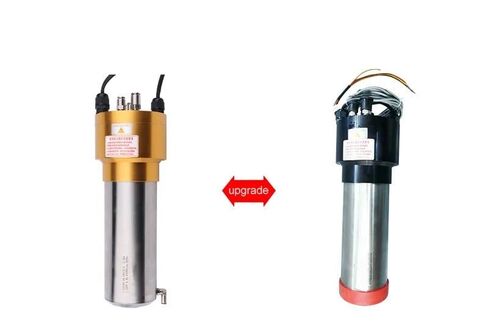

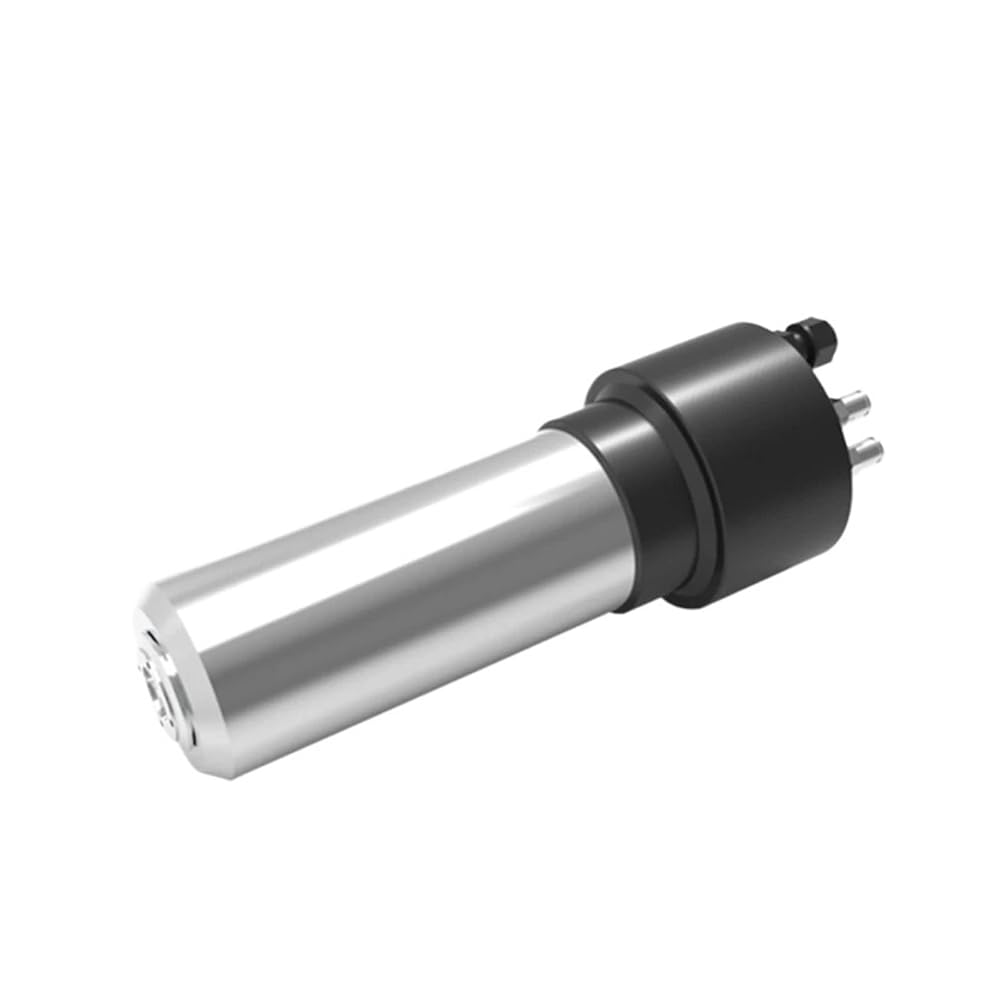

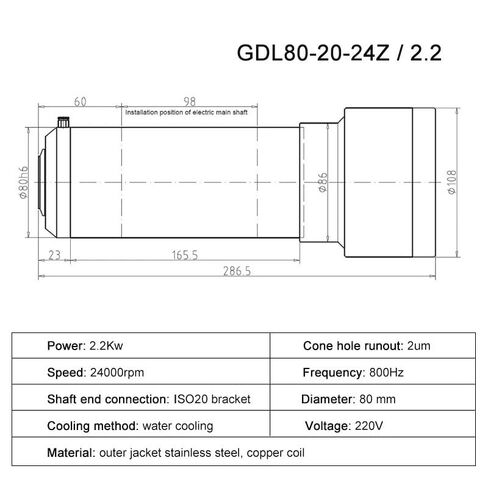

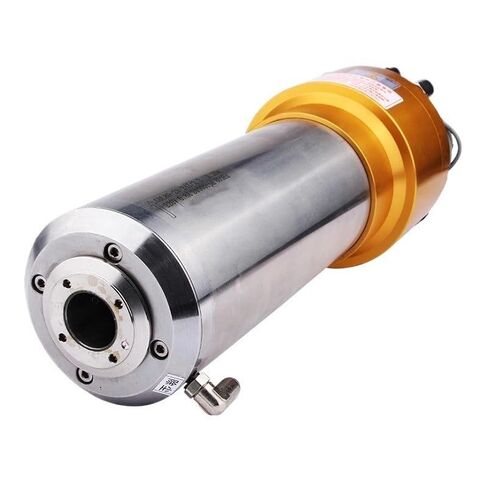

2.2kw automatic tool change spindle upgrade

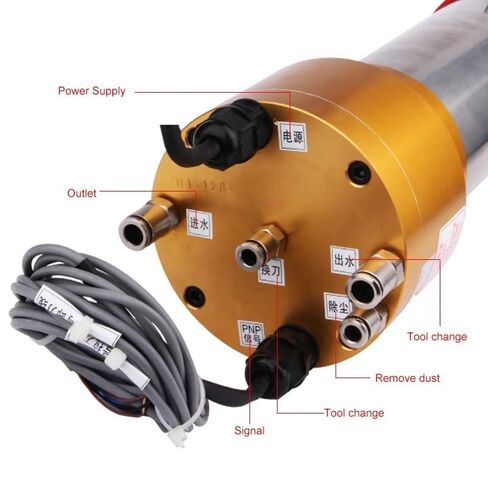

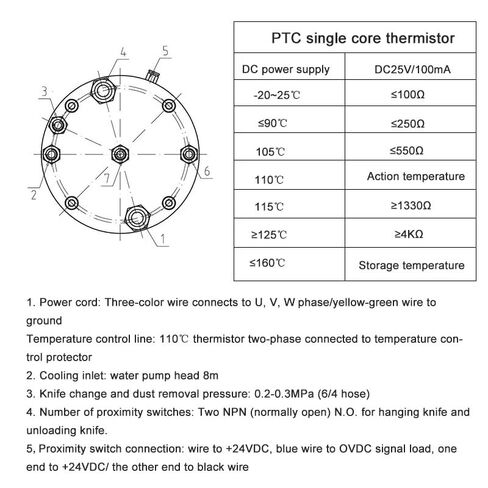

1: Power line: three-color line connects U, V and W phase/yellow line and green line grounding temperature control line 110°C thermistor two-phase connection to temperature control protector
2: Cooling water feed: pump lift 8m

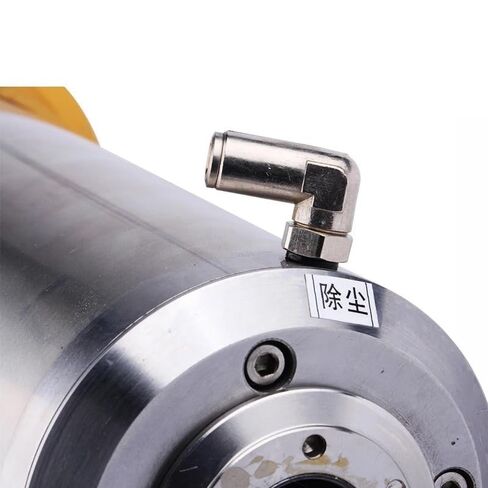

3: Pole change and dust removal pressure: 0.2-0,3Mpa (6/4 hose)
4: Number of proximity switches: pole hanging and pole discharge NPN (normally open)
Proximity switch wiring method: brown wire connect + 24VDC, blue wire connect 0VDC
The signal load end is connected to +24VDC / the other end is connected to the black wire
5: Air sealing pressure: 0.1-0.2Mpa (4/2 hose)
6: Produce cooling water: (2 and 6 ends with 8/6 hoses)
7: Cylinder intake pressure: 0.65Mpa (6/4 hoses)
