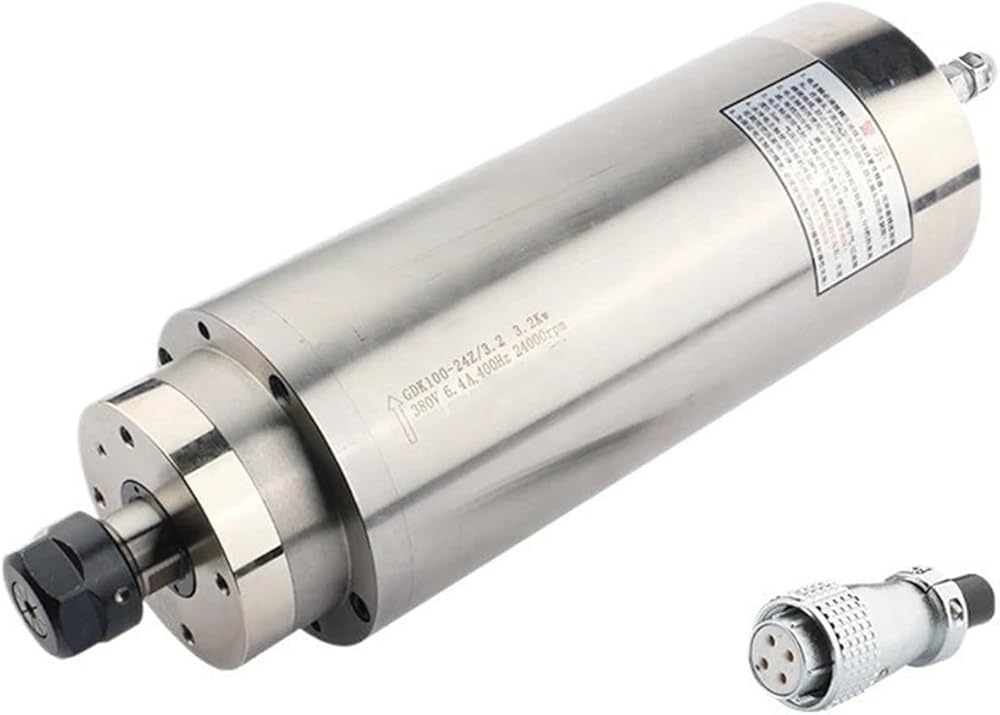

نقش GDK100-24Z/3.2KW CNC المغزل 100 مم محرك مغزل مائل ماء 220 فولت/380V ER20 من الجوز لجهاز التوجيه ملحقات أداة طحن المعادن (3.2 كيلو وات 380 فولت)

KWD 441.500
ماركة
BERWENNY
فئة
ساندرز
وزن
1 kg
اللون3.2kw 380v
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Model Number: GDK100-24Z/3.2

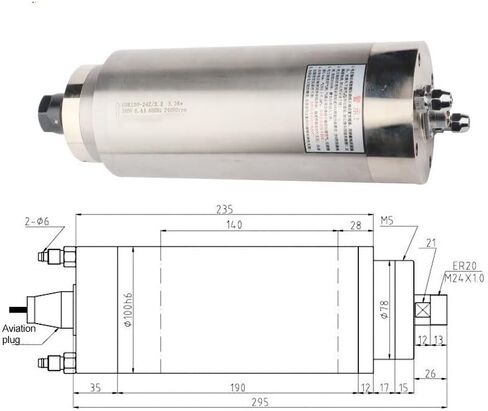

  • Size: 100x295mm (diameter of middle body: 100mm x length: 295mm)
  • Speed regulation mode: The spindle speed can be changed by three-phase output inverter and adjusting the frequency of the inverter.

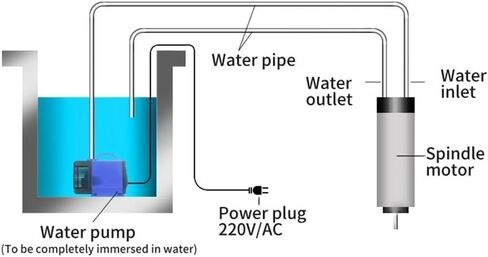

  • Cooling method: water cooling

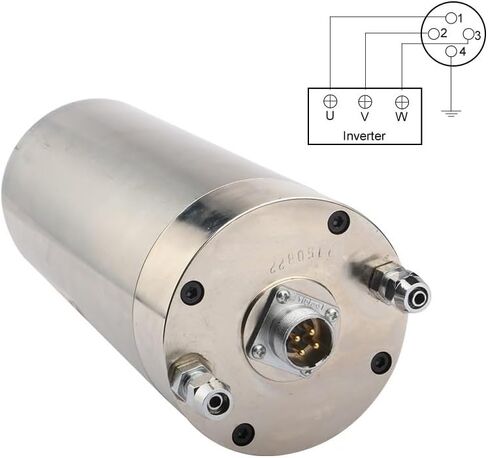

  • Power interface: Optional 4 pin waterproof air. The air labeled "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), 4 are connected to the inverter The device is grounded.

وصف

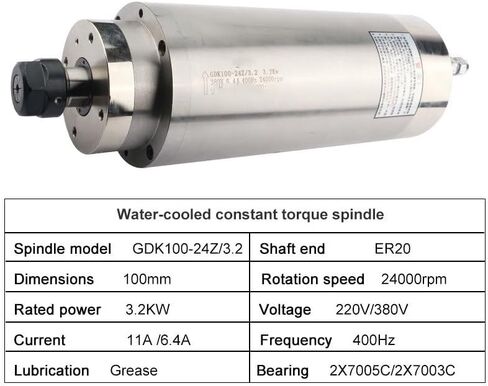

Power: 3.2kw
Voltage: 220V 380V
Current: 11A/6.4A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 100
4 fully sealed angular contact bearings

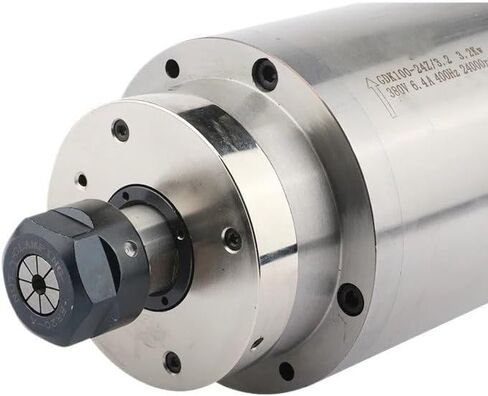

Chuck: ER20
Grease lubrication
Main Application: Engrave for wood,nPCB,PVC, plas-tic,duotone board(ABS)and etc nonmetal, also can engrave on gold,sil-ver.copper, aluminium,Pb etc soft metal surface working
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
