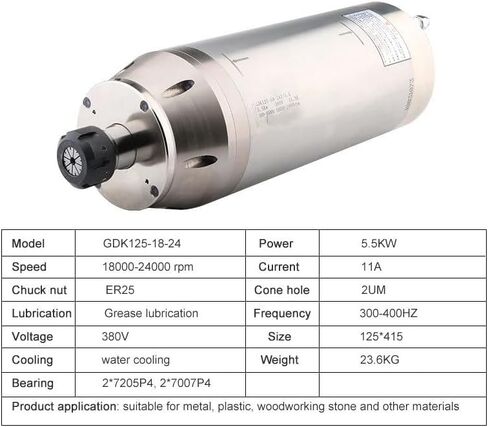

Power: 5.5kw
Voltage: 380V
Current: 11A
Frequency: 300-400Hz
Speed: 18000-24000rpm
Cone hole: 2UM
Diameter (mm): 125
4 fully sealed angular contact ceramic bearings
Chuck: ER25
Grease lubrication

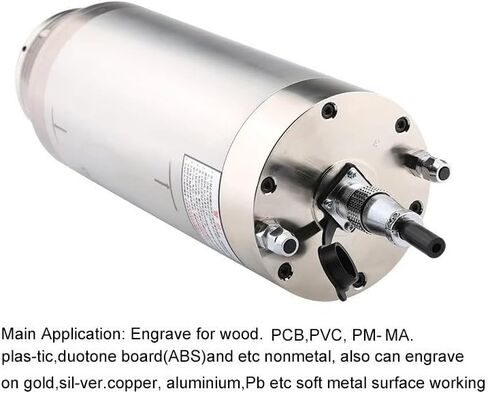

Main use: Carving wood, PCB, PVC, plastic, two-color board (ABS) and other non-metals, and can also be carved on soft metal surfaces such as gold, silver, copper, aluminum, Pb, etc.
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
