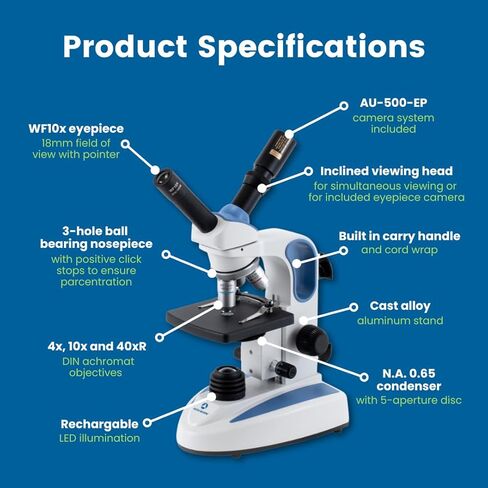

Specifications

- Optical System: DIN Optical System, f=160mm.
- Viewing Head: Monocular dual inclined teaching head, inclined 45°and 360° rotatable.
- Eyepieces: WF10x eyepieces, 18mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering.
- Nosepiece: Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration.
- Objectives: DIN achromat 4x, 10x and 40xR* objectives (*spring-loaded).
- Stage: Stage size 119mm X 119mm with stage clips.
- Condenser: N.A. 0.65 condenser with five aperture disc.
- Stand: Cast alloy aluminum with built-in carry handle and cord hangers.
- Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500mAh NiMH rechargeable battery.
- Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.

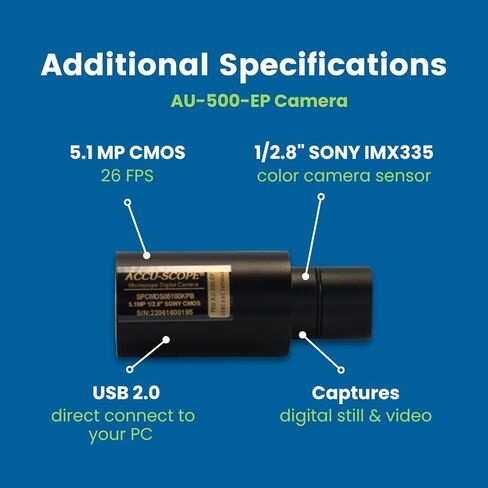

- Camera: ACCU-CAM 500 EP; Sensor: 1/2.8" Sony IMX335 color CMOS, 2.0µm pixels; Dynamic/Static Resolution: 2592 x 1944; Frame Rate: 26fps @ 2592x1944, 26fps @ 1280x960, 26fps @ 640x480; Image Capture: Image saved to PC via USB 2.0; Advanced Camera Controls: live/still image measurement and annotation, flat field correction, extended depth of focus (focus stacking), image stitching (requires mechanical stage); System Requirements: Windows 7 and up (32 and 64-bit); Mac OS 10.6 and up
- Accessories: USB 2.0 mini cable, ACCU-View software USB stick, dust cover and instruction manual included.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; CE; RoHS
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

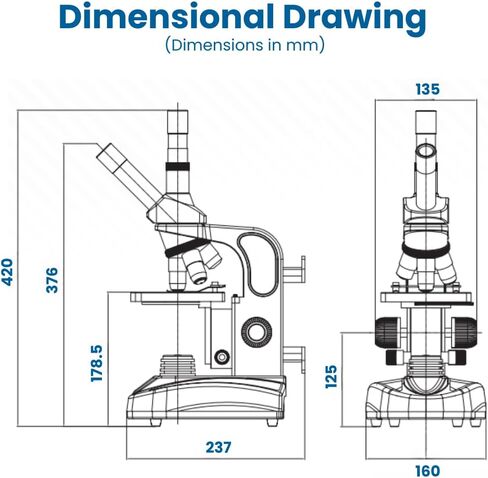

- Microscope Dimensions (LWH): 238mm x 184mm x 381mm
