مميزات خاصة

🌝【Vertical and Horizontal Design】It has both vertical and horizontal functions. When the vertical position of the table is used with the tail section, it is possible to perform circumferential cutting, indexing drilling, milling and more complex work.
🌝【High Precision】The punch former is marked with a 360-degree scale on it, so you can accomplish precise rotation and reset.
🌝【Easy to Adjust】You just need to operate the control handle and adjust it to the desired position, which makes it easy and convenient to use.
🌝【Great Stability】It has a wider base design, so it fits more closely to the countertop. It will give strong support to the long metal rods you want to handle, providing a more stable working condition.
🌝【Powerful Clamping Force】This punch former is controlled by a rotary screw. When you place the item inside and twist the screw tightly, it will hold the item firmly, making it easy for you to manipulate.

وصف

Description

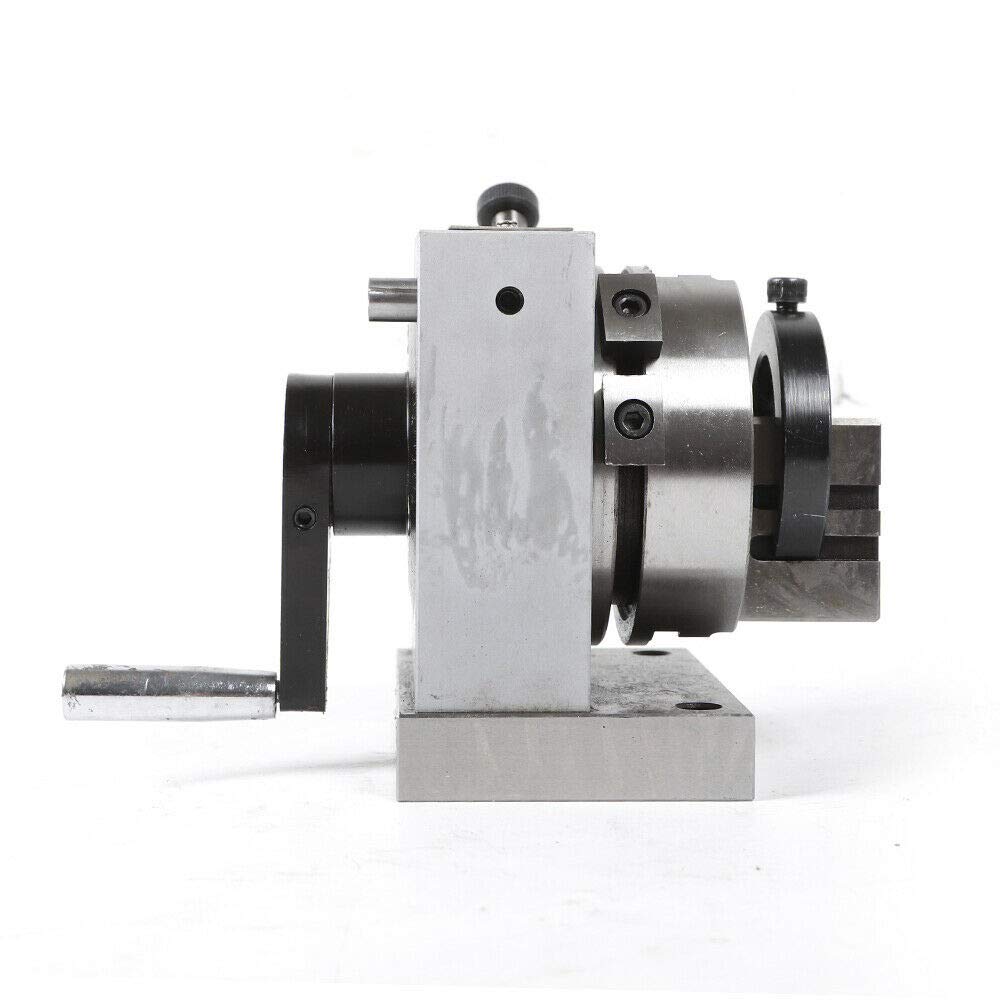

This punch former ismade of high-quality Sks3 and is very strong anddurable. It will help you to operate precisely and be your right-hand assistantfor machining slots for milling cutters, cutting teeth for gears, curvedmilling slots, or drilling a bolt-hole circle around the circumference of apart.
Details
Center Hole: The longer punch and its body can easily pass through it and can easilyclamp.
Smooth Surface: The surface of the finely polished metal punch former is smooth, so itwill not easily damage other materials and is easier to clean.
Application
It is designed for milling,drilling, fixture boring and many common workshop applications.
Specification
Main Material: Sks3
Color: Silver
Package Size: 33*23*20cm/13*9.05*7.9in
Punch Former Size:19.7*10.8*13.3cm/7.76*4.25*5.24in
Trim Arm Size:15.6*6.5cm/6.14*2.56in
Net Weight: About 9kg/19.84lbs
Height Of RotationCenter:80mm/3.15in
24sub Division: Sub-Degree 15°
Clamping Diameter In V-Solt:3-30 mm/0.12-1.2in
Clamping Up & DownIn-Solt: 25mm/0.98in
Max. Wheel Diameter:200mm/7.9in
Convexr Triming Range:48mm/1.9in
Concaner Triming Range:100mm/3.9in
Accuracy: 0.01-0.008mm
Package Included
1*Punch Former
1*Trimming Arm
1*Packing Box
1*English and Chinese Manual
Notes
Please allow the slightcolor difference caused by the shooting light and 1-3 cm error due to manualmeasurement, and make sure you do not mind before ordering.
