Engineering Bao is a common name, and its professional name is video surveillance tester.

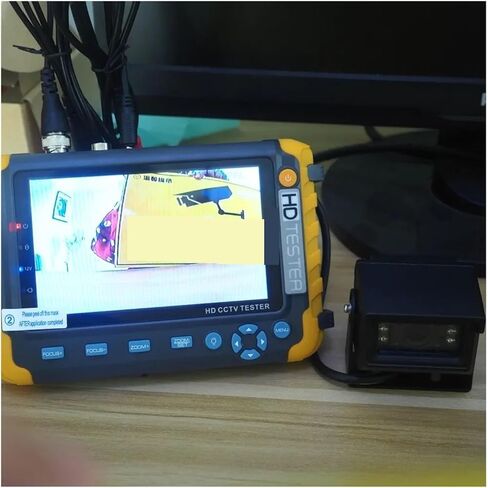

When installing and maintaining front-end camera equipment, you can conduct test analysis through the screen and keyboard of Engineering Bao, which is very convenient and efficient.

Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

VGA/ input
Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)

TVI camera test
HD TVI video surveillance testing, support 1MP 2MP 3MP 4MP 5MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.

AHD camera test
HD video surveillance testing, support AHD 2.0 version, 1MP 2MP 3MP 4MP 5MP (IV8W ) / 720p 25,30fps/ 1080p 25,30fps (IV8S) . When AHD signal input, the tester will display the AHD camera image.

CVI camera test
HD CVI video surveillance testing, support HD CVI video surveillance testing, support 1MP 2MP 3MP 4MP (IV8W ) /720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S ) . When CVI signal input, the tester will display HD CVI camera image.

LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

Product overview:

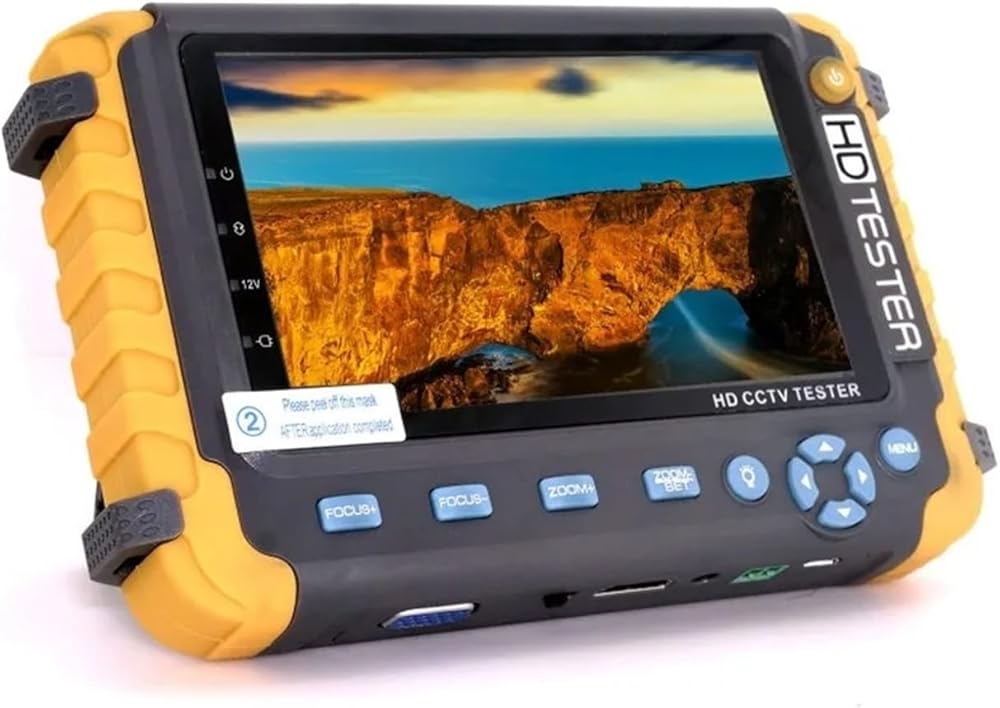

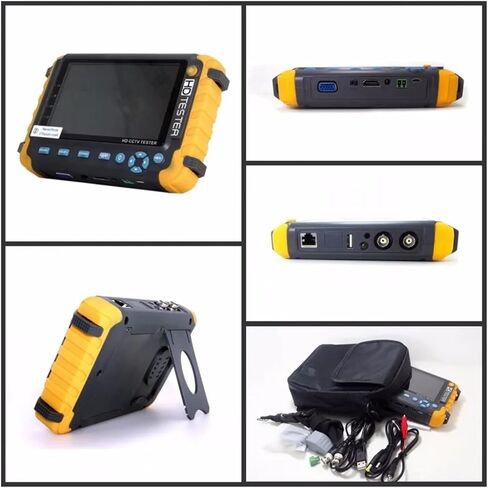

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, RS485 data searching, cable testing, LED lamp etc.
