Special Features

Applicable occasions: used for wood processing and planing, especially for small wooden furniture making, DIY art making, wood processing, etc.

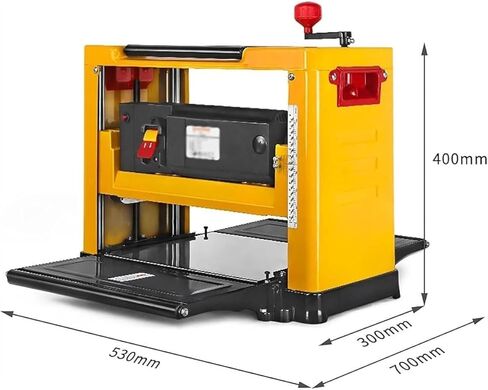

13-inch table planer: 13-inch 530*700 mm double-sided thickened tabletop, smoother planing. The tabletop can be folded up for easy carrying. The body is made of all-aluminum base, and the planing is more stable and accurate. Equipped with a return roller, it is convenient to return when planing long boards, saving time and effort.
Adjustable: The height of the knife guard is adjustable, 1-16 cm, and can be rotated and raised, and the lifting and lowering is about 1-3 mm per rotation. The side is equipped with a handle for easy transportation. The external carbon brush is also easy to replace.
High-power copper motor: 2000 watts of power, stable and sufficient power. Equipped with an overload protection device. When the mechanical switch exceeds the rated current, it will automatically cut off the power supply to protect the motor.
Double dust removal mode: enlarge the air outlet, can be connected to a vacuum cleaner, low dust cutting, fast heat dissipation, and not easy to burn. Easily clean up the splashing wood chips to create a clean working environment.

Description

Name: Planer
No-load speed: 8000 rpm
Cutting width: 330 mm
Power: 2000 W
Single edge thickness: 1-3 mm
Single planing height: 6-160 mm
Dimensions: 53*30*40 cm
Product weight: 28 kg

Packing list:
1 planer

Blade installation
1. Disconnect the power supply and remove the four screws on the dust cover
2. Remove the blade
3. Install the new blade and use the blade holder to correct the blade position
4. Adjust the blade position so that the blade is 1.5 mm higher and tighten the screws
