Metal Bench Lathe Benchtop 7"*12" Mini Metal Lathe Metric and Imperial Variable Speed 50-2500rmp for Woodworking Metalworking Teaching and Production 110V 600W

KWD 402.500
Brand
JARYANNIX
Category
Lathes
Weight
66 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

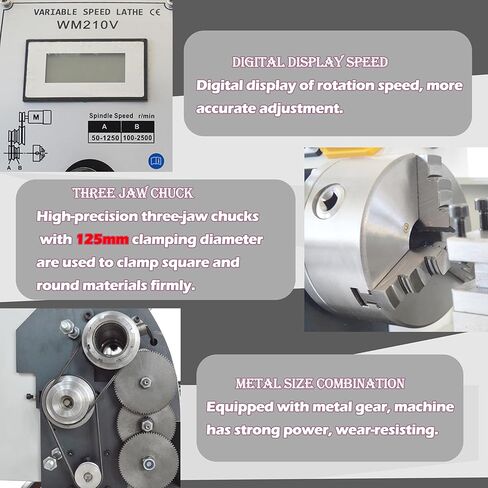

  • [Adjustable Speed Control]: Equipped with a 600W 110V brushless motor, this metal lathe offers stepless 50-2500 RPM speed regulation for both woodworking and heavy-duty metalworking. The digital RPM display ensures precise adjustments for accurate results.

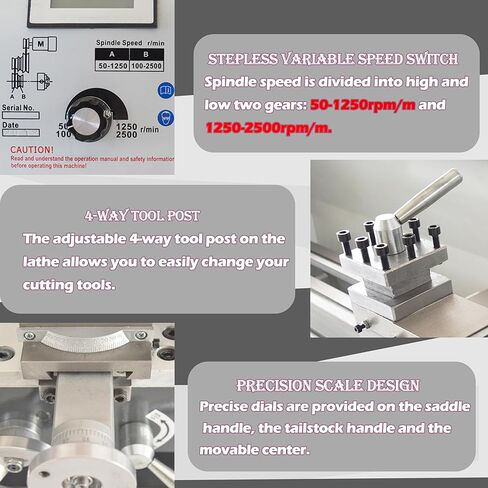

  • [Efficient Tool Management]: The metal lathe's four - way toolholder allows for quick tool changes and increased productivity. A high - precision 3.94 inch (100mm) diameter three - jaw chuck securely clamps round and square materials, and the MT3 spindle taper and 0.83" (21mm) spindle bore accommodate a range of workpiece sizes. With a swing over bed of 7" (180mm), this bench lathe is suitable for various machining tasks.
  • [Precision Engineering]: The metalworking lathe is equipped with precision dials on the saddle handle, tailstock and movable center for millimeter - level control. With a spindle accuracy of 0.01mm and an automatic feed rate range of 0.1 - 0.2mm, this bench lathe can accurately machine parts. The cross slide travel of 2.95" (75mm) contributes to precise machining operations.
  • [Safety Design]: The Metalworking Lathe is equipped with protective covers and emergency stop switches to ensure operator safety during operation. An intuitive layout including forward and reverse switches and feed levers simplify setup. Additionally, the forward and reverse switch and emergency stop switch can stop the lathe immediately in case of an emergency, enhancing safety.

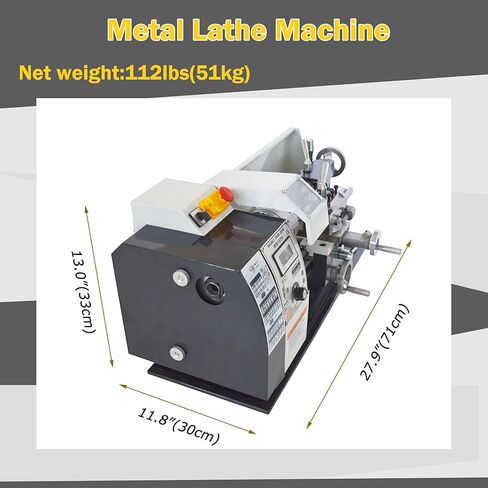

  • [Compact and Sturdy]: Measuring 27.9"*11.8"*13" (71*30*33cm) and weighing 140lbs (63.5kg). The metal milling machine's cast iron bed with high - frequency quenching treatment and precision grinding, along with durable metal gears and a robust frame, ensures the lathe's reliable performance.

Description

Product parameter:
Model: WM180V
Motor: 110V brushless motor
Voltage: AC110V 50/60Hz
Power: 600W
Length of center: 11.8"(300mm)
Swing Over Bed: 7"(180mm)
Spindle bore: 0.83"(21mm)
Diameter of chuck: 3.94"(100mm)
Width of lathe bed: 3.94"(100mm)
Number of Spindle Speeds: Infinitely variable speeds
Spindle taper: MT3
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Range of metric threads: 0.3-3mm
Range of Inch Threads(optional accessory ): 10-44T.P.I
Precision of the spindle: 0.01mm
Range of Longitudinal Feeds: 0.08mm-0.16mm
Automatic feed range: 0.1mm-0.2mm
Towing trip: 1.97"(50mm)
Cross Slide Travel: 2.95"(75mm)
Tailstock Quill Travel: 2.36"(60mm)
Tail frame taper: MT2
Package size: 32.1"*19.3"*17.3"(81.5*49*44cm)
Gross weight: 140lb(63.5kg)
