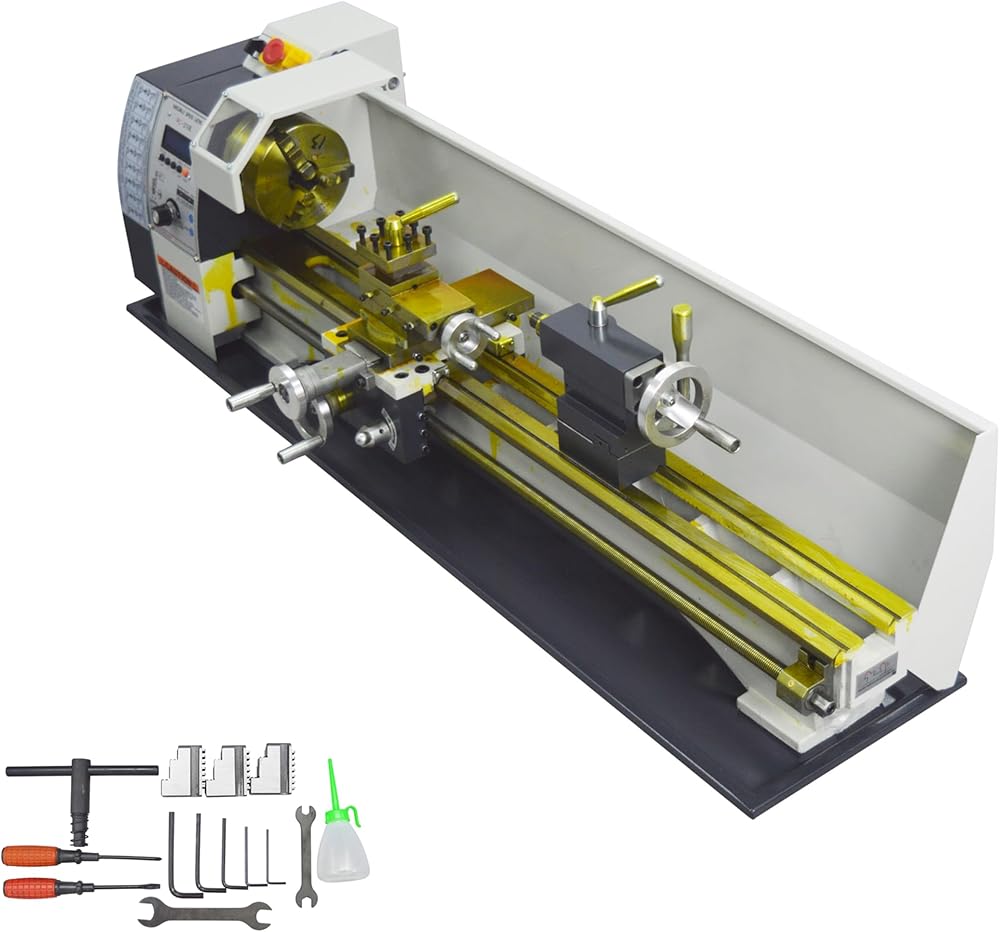

1100W Metal Bench Lathe Benchtop Mini Metal Lathe 8"*24" Electronic Gear Lathe Auto Switch Between Metric and Imperial for Woodworking Metalworking Variable Speed 50-2500rmp 110V

KWD 574.500
Brand
JARYANNIX
Category
Lathes
Weight
81 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

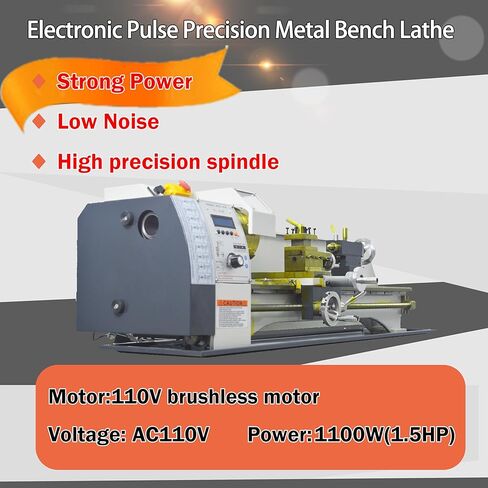

  • [Adjustable Speed Control]: This RC - 210E Metal Lathe uses a 1100W 110V brushless motor, supporting infinitely variable speeds (50 - 2500 RPM). Ideal for metalworking and fine machining tasks, the digital display enables precise speed tuning for accurate turning.

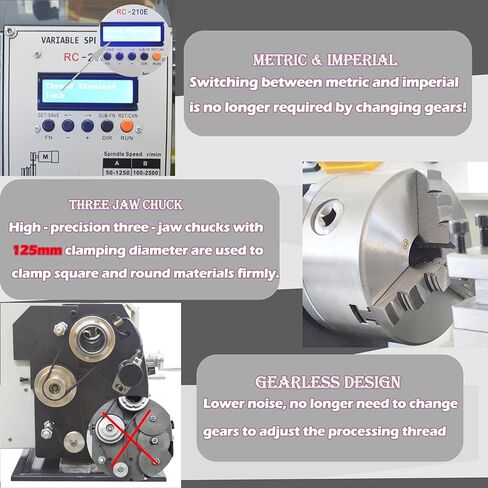

  • [Efficient Tool Management]: Features a horizontal four - station tool rest for quick changes, boosting productivity. The 4.92" (125mm) three - jaw chuck secures round/square materials. With MT5 spindle taper, 1.50" (38mm) spindle bore, 5.51" (140mm) tool rest rotary diameter, and 8.27" (210mm) swing over bed, it handles diverse workpiece sizes.
  • [Precision Engineering]: Equipped with precision dials for millimeter - level control. Boasts 0.01mm spindle accuracy and 0.01 - 0.4mm automatic feed range for precise part machining. Supports metric/imperial, with 1s - 30s turning delay start.
  • [Metric/Imperial Switch]: Auto - switches between metric and imperial via the panel—no gear shifting needed. Gearless belt - drive design reduces noise. Effortless thread processing for both systems, enhancing efficiency.

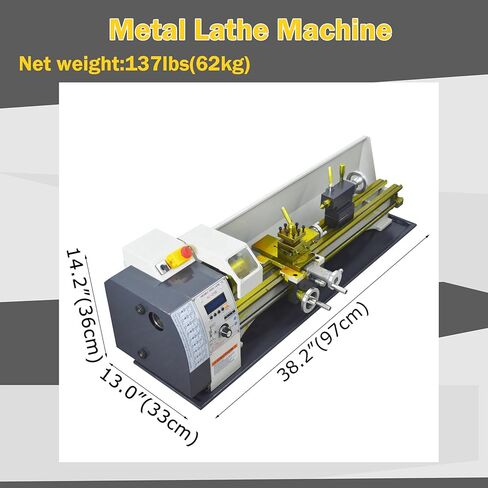

  • [Compact and Sturdy Build]: This RC - 210E Metal Lathe size: 38.2"*13"*14.2" (97*33*36cm) and Net weight: 136.7LB (62kg). Cast iron bed ensures stable, long - term performance for metal turning tasks.

Description

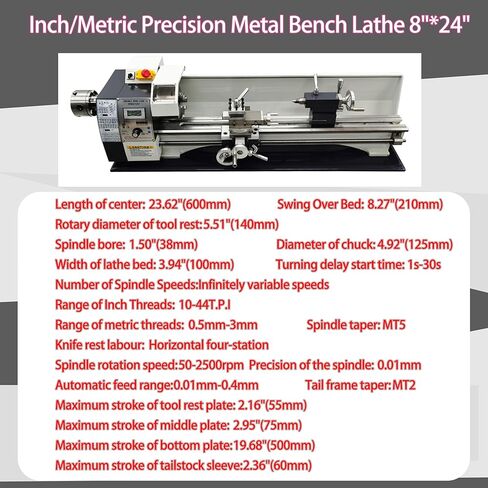

Product parameter:
Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 23.62"(600mm)
Swing Over Bed: 8.27"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 19.68"(500mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 41.7"*18.5"*20.1"(106cm*47cm*51cm)
Net weight/Gross weight: 136.7LB(62kg)/178.6LB(81kg)
Note: The yellow on the lathe bed and chuck is antirust oil, Belong to normal
phenomenon,which can be wiped off with oil or gasoline before use.Be sure to clean the
anti-rust oil on the chuck before starting and turn the chuck by hand to prevent the chuck
from jamming and causing the circuit board to burn out!!
