Metal Bench Lathe 8"*39" Benchtop Mini Metal Lathe Metric and Imperial Electronic Gear Lathe for Woodworking Metalworking Variable Speed 50-2500rmp 4-Way Tool Post,Three-Jaw Chuck 110V 1100W

KWD 756
Brand
JARYANNIX
Category
Lathes
Weight
107.5 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Adjustable Speed Control]: This RC - 210E Metal Bench Lathe is powered by a 1100W, 110V 50/60Hz brushless motor, offering infinitely variable speeds from 50 - 2500 RPM. Ideal for both fine woodworking and diverse metalworking tasks, it ensures accurate machining with precise speed adjustments, catering to a wide range of projects.
  • [Efficient Tool Management]: Equipped with a horizontal four - station knife rest, this metal bench lathe enables swift tool changes, enhancing productivity. The 4.92 inch (125mm) diameter chuck firmly secures round and square materials. With an MT5 spindle taper and a 1.50" (38mm) spindle bore, it can handle various workpiece sizes. The tool rest has a rotary diameter of 5.51" (140mm), and the swing over bed measures 8.27" (210mm), making it versatile for different machining jobs.
  • [Precision Engineering]: Precision dials on the saddle handle, tailstock, and movable center provide millimeter - level control. With a spindle accuracy of 0.01mm and an automatic feed range of 0.01 - 0.4mm, it can accurately machine parts. The maximum stroke of the tool rest plate at 2.16" (55mm) further aids in precise machining operations.

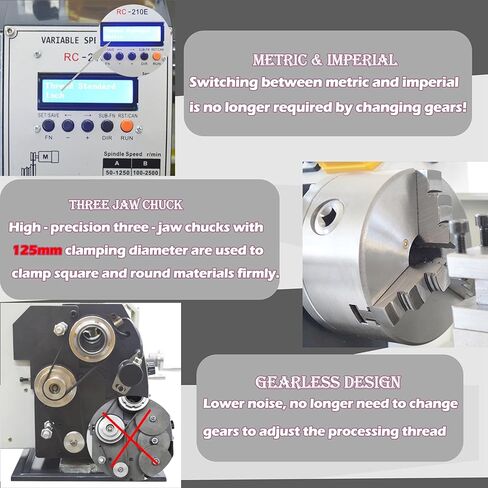

  • [Metric/Imperial]: The metalworking lathe supports metric, imperial, and customized thread standards. It simplifies the switching process between metric and imperial systems, eliminating the need for complex gear - shifting. The gearless belt - drive design reduces operational noise, and the effortless thread processing for both systems enhances efficiency and flexibility.
  • [Compact and Sturdy]: With a size of 54"*11.8"*13.4" (137*30*34cm) and a net weight of 172.0LB (78.9kg), its robust build with quality components ensures reliable performance. It is suitable for operations like turning, facing, drilling, boring, and thread - turning.

Description

Product parameter:

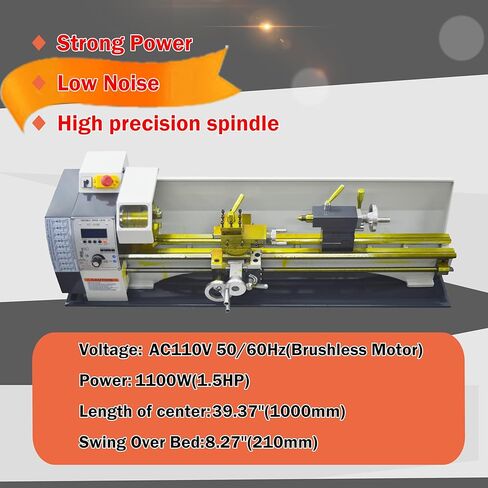

Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 39.37"(1000mm)
Swing Over Bed: 8.27"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 57.9"*18.5"*20.1"(147cm*47cm*51cm)
Net weight/Gross weight: 172.0LB(78kg)/238.1LB(108kg)
Note: The yellow on the lathe bed and chuck is antirust oil, Belong to normal phenomenon, which can be wiped off with oil or gasoline before use. Be sure to clean the anti-rust oil on the chuck before starting and turn the chuck by hand to prevent the chuck from jamming and causing the circuit board to burn out!!
