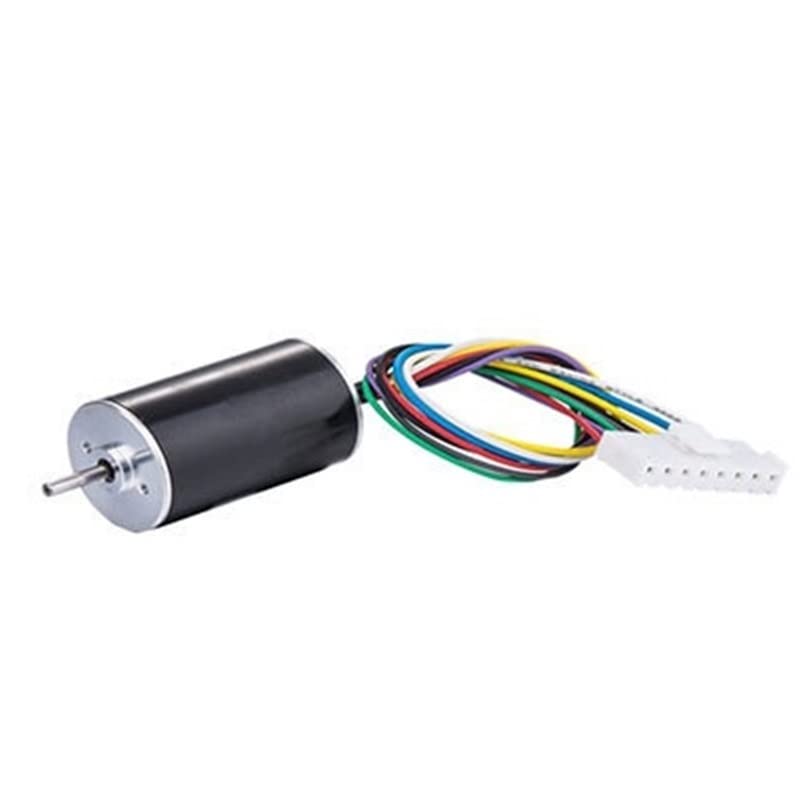

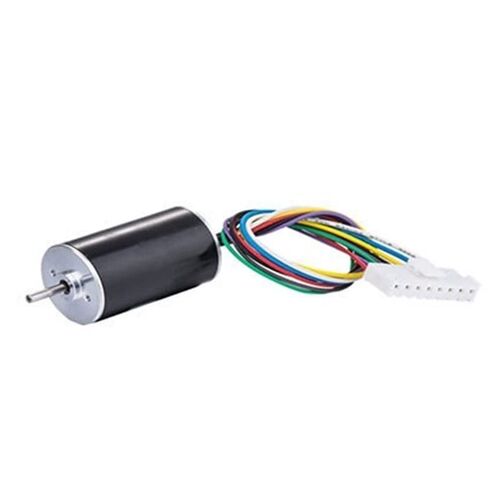

Blower Brushless DC Motor,High Speed 24V Fan DC Brushless Small Power Micro Motor

KWD 63
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Speed control function: through the 0-5V voltage speed control and PWM speed control two ways;
  • Forward and reverse function: (green line) the forward and reverse line connected with GND can realize the motor from counterclockwise rotation to clockwise rotation; the motor will return to counterclockwise operation after the forward and reverse line is disconnected from GND;
  • Speed pulse output: (white line) can calculate the current actual speed of the motor based on the pulse frequency tested;
  • Enable function: The enable line (purple line) is connected to GND to stop the motor naturally; the motor continues to run after the enable line is disconnected from GND.

Description

Voltage: 24VDC
No-load speed: 9,000 r/min.
Rated load torque: 23mN.m.
Rated load speed: 6520 r/min.
Rated load current: 1.03A
