Power :1.5kW
Voltage: 220V/380V
Current: 6A 8A

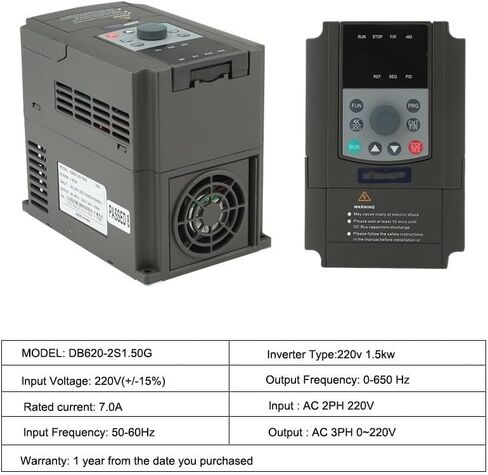

Frequency: 0-400 Hz
Speed: 0-24000 RPM
Jumping: less than 0.01mm

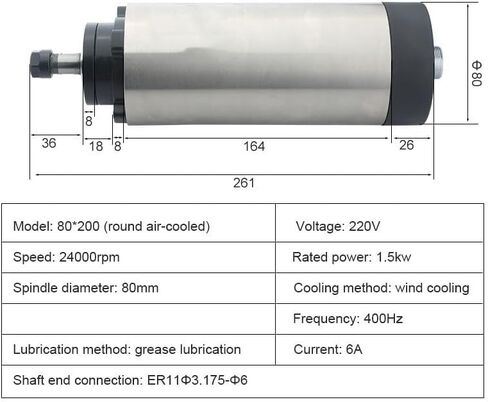

Diameter (mm):80mm
4 fully sealed angular contact bearings
Chuck: ER11/ER16

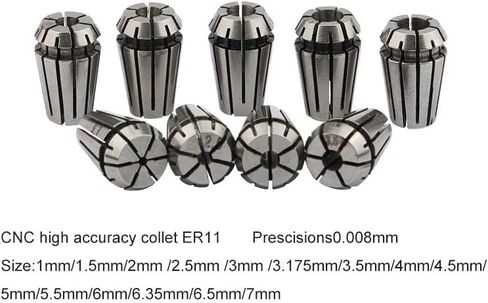

Fixture diameter :10mm,9mm,8mm,7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm(standard 6mm)
Water-cooled ER11/ER16 chuck collet Grease lubrication
Main applications: for wood, PCB, PVC, PMMA, plastic, ABS and other non-metal carving.

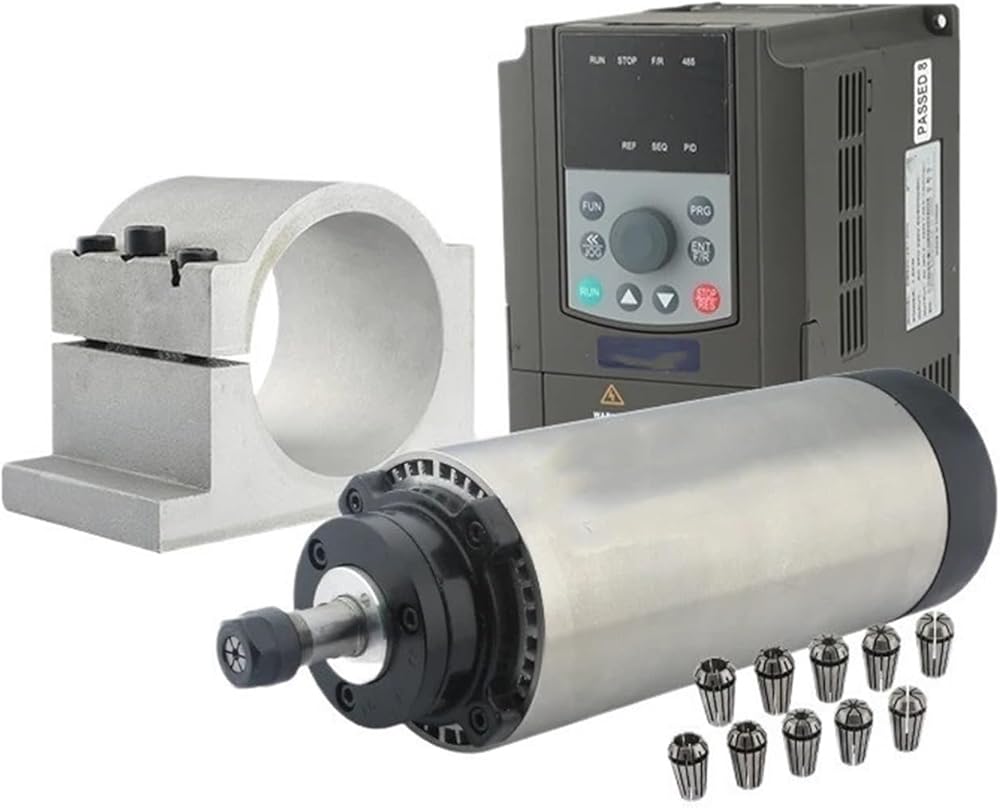

80mm 1.5kw ER11 380V/220V Air cooling spindle motor
80mm 1.5kw ER16 220V air cooling spindle motor
The working environment temperature of the spindle motor is usually -10~40.
Before installing the first electric spindle motor to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power. Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm 1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
