Details
🧭Fixed Slots: The slots on the base can help stabilize the drilling components and ensure the smooth progress of drilling work.
🧭Cooling Holes: It help the machine to dissipate heat promptly and quickly, increasing the service life of the machine.
🧭Long Power Cord: The equipped 4.43ft power cord reduces the use distance limitation.
Application
It can be used for drilling iron (diameter ≤0.24in), wood (diameter ≤0.63in), plastic board, aluminum board, composite board, resin board, thin metal, circuit board, and other non-rigid materials. It can also be used for teaching experiments, DIY crafts, or furniture.
Specification
Model: 5158A
Color: Silver, Black
Material: Steel, Cast Iron
Process: Spray Molding
Assembly Required: Yes
Power Source: Corded Electric
Motor Type: Brushed Pure Copper Motor
Plug Type: US Standard
Power: 340W
Voltage: 110V, 50Hz
No-load Speed: I. 0-8,000 rpm; II. 0-11,000rpm; III. 0-16,000rpm
Power Cord Exposed Length: 1.35m/4.43 ft
Max. Drilling Depth: 25mm/0.98 in

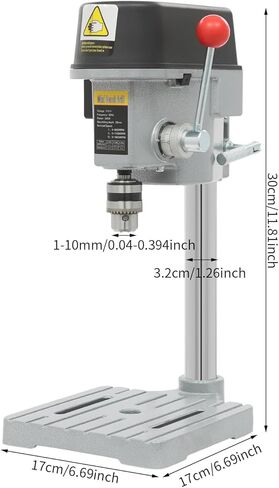

Collet Clamping Diameter: 1-10mm/0.04-0.39 in
Column Diameter: 3.2cm/1.26 in
Column Height: 30cm/11.81 in
Base Size: 17*17cm/6.69*6.69 in
Package Size: 30*24.5*20cm/11.81*9.65*7.87 in
Gross Weight: 5.6kg/12.35 lbs
Net Weight: 5.32kg/11.73 lbs

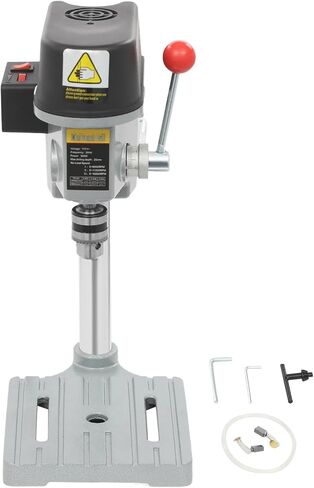

Package Included
1* Portable Bench Drill Press
2* Hexagon Wrenches(0.16 in; 0.1 in)
1* Collet Key(0.24 in)
1* Belt Ring
1Pair * Carbon Brushes
1* English Manual
Other Accessories for Assembly
Notes
1.Please read the user manual carefully before use and pay special attention to the safety precautions included.
2.Please allow the slight color difference caused and the slight measurement error.
