Specification:

Easy to install, fully automatic operation
Power Cable With 3 pin US Plug.

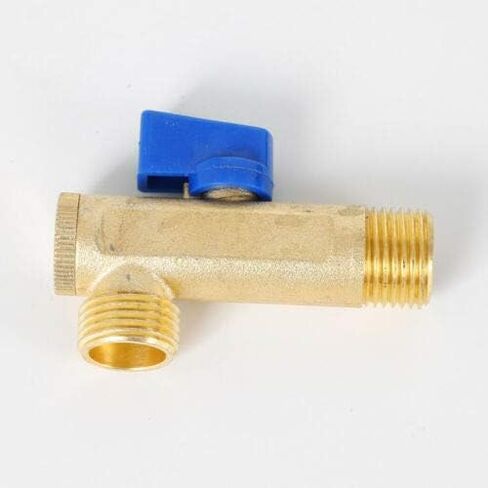

Equipped with a ball valve filter, split with drain valve, an L-shaped structure
Voltage: AC110V 60Hz
Voltage range: 10%
Time interval ( OFF ): 0.5--45 minutes (adjustable)
Discharge time ( ON ): 0.5--10 seconds (adjustable)
Manual test button: Yes( micro switch )
The current consumption: Max 4mA
Protection grade: IP65
Shell material: Flame retardant ABS plastic
Indicator lamp: LED indicating power on / off
Type: two-way direct-acting valve
Flow aperture: 5 mm
In / out port size: 1/2"
Maximum working pressure: 1.6Mpa
Maximum temperature: 90 °C
Valve material: Forging brass

Installation:
Clean the compressed air system before installing
Attention to the direction of the arrow when the valve body; outlet do not use the impact of the hose does not impact
The supply voltage must be the same as the drain valve voltage; when using DC, the positive pole must be connected to the connector "1"
The factory has been connected to the cable drain valve, fade for the fire line L, blue for the zero line N, yellow and green color for the safe ground GND
Always tighten the long screws on the terminal box to prevent the water from burning

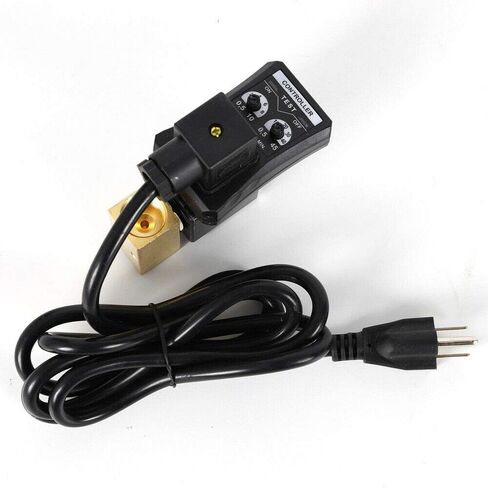

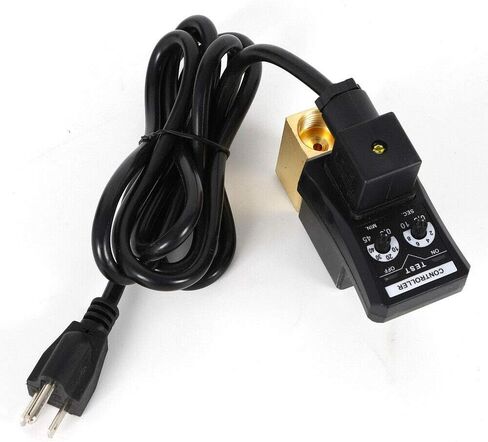

Timer setting:
Left knob to set the discharge time, the right knob to set the interval time; the first discharge time of 2s, the interval time is 20min, and then need to be further adjusted

Package Contents:

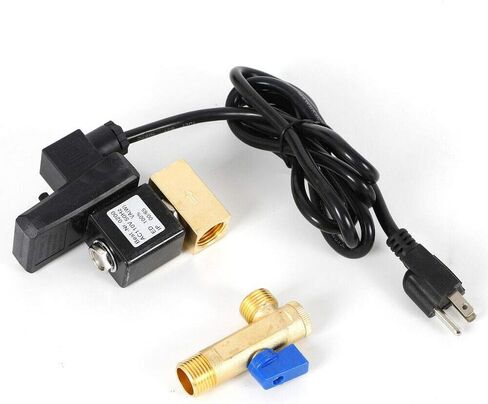

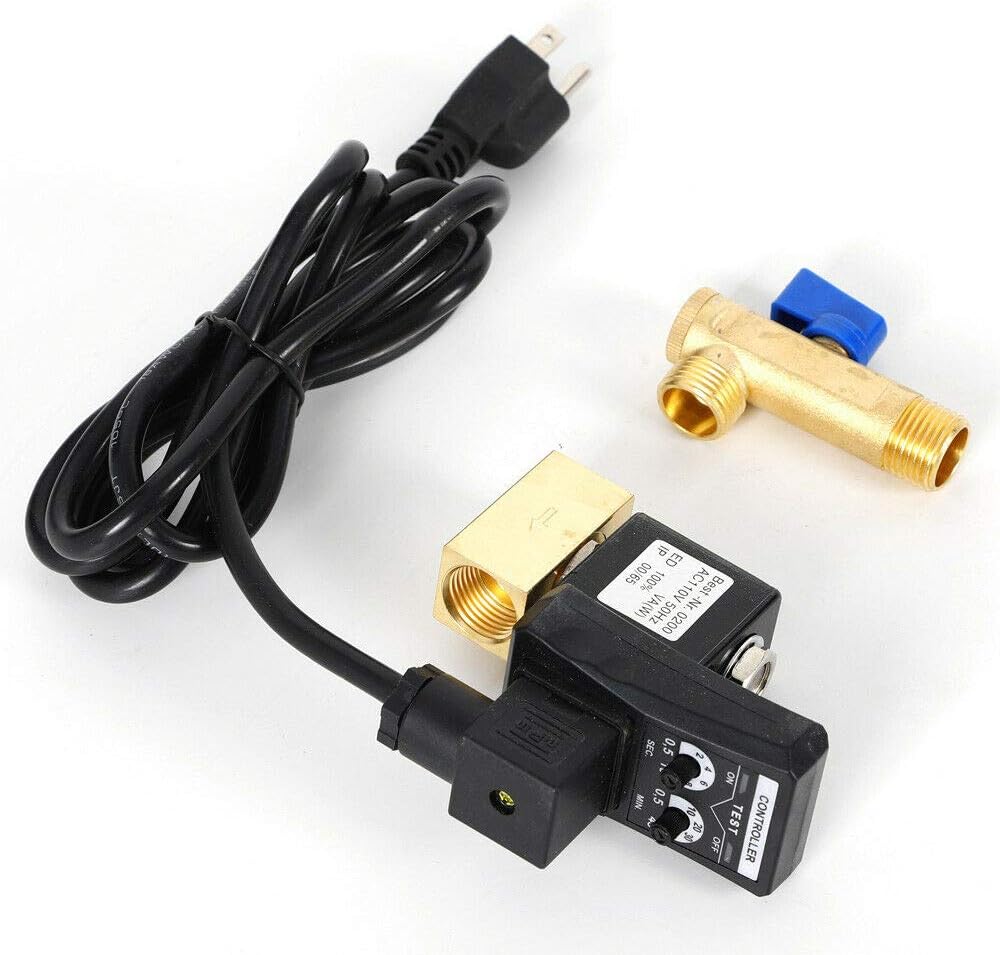

1 * Drain Valve With Power Cable
