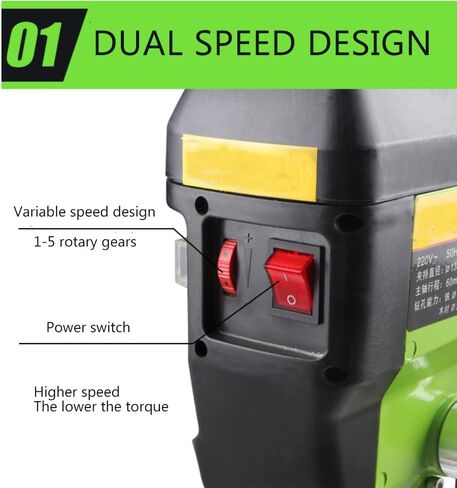

【Gear speed regulation and belt speed regulation double speed change design】One key switch, six speed regulation casually adjusted. At the same time the belt speed regulation, through the up and down adjustment of the belt position so as to adjust the speed and power, the first level of speed regulation: 0-1100r/min; the second is 0-2500r/min; the third is 0-4500r/min.
【680W independent motor design】Copper alloy commutator with high hardness and stronger wear resistance. Rubber-coated process makes the rotor fuller and more durable. Synchronous bearing adopts double dustproof design, which is more effective in preventing foreign objects from outside from entering.

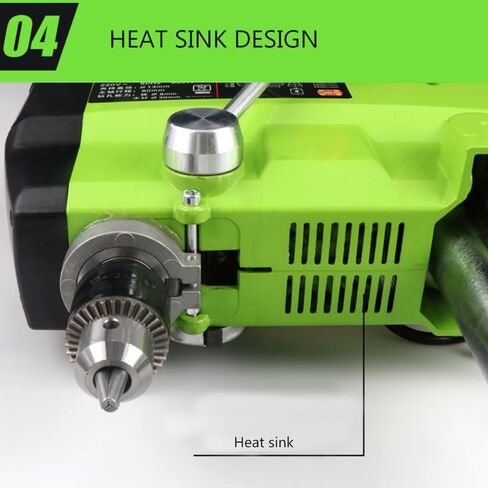

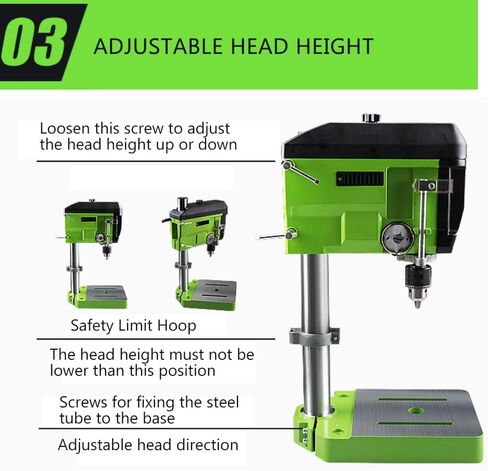

【Advantageous points of bench drill design】Spacious cooling holes, good heat dissipation and long service life. The round ball design at the end of the operating handle is comfortable and labour-saving.Up and down can be adjusted in height according to working needs.
【Product Use】Suitable for drilling, engraving and milling of jade, agate, aluminium, copper, iron and other metals, such as drilling and taking beads.
Description
Package Include:

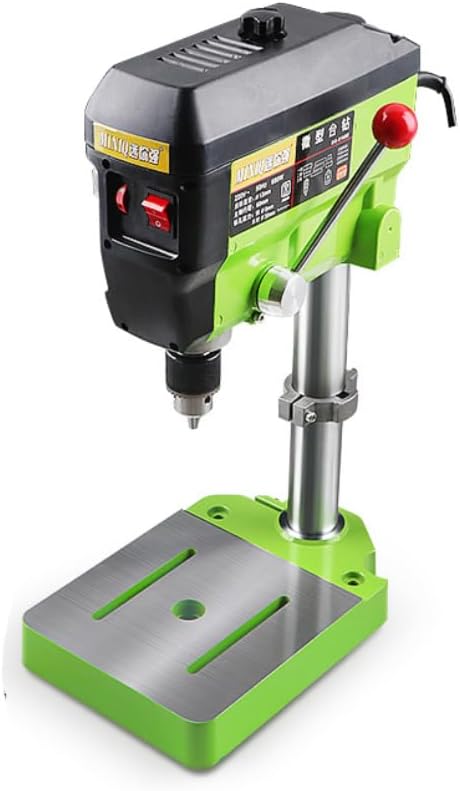

MCTD-680W Bench Drill Press 220V
Basic parameters
Voltage: 220VAC
Output power: 680W
Drilling stroke: 60MM
Drilling range: 1.5-13MM
Rotation speed range: 0-4500 rpm ( first speed is: 0-1100r/min; the second is 0-2500r/min; the third is 0-4500r/min )

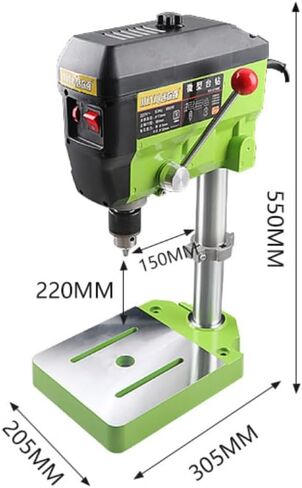

Table size: 205*205MM
Drilling capacity: wood φ30mm, iron φ8mm
Column: 45*500mm
Weight: about 10KG
