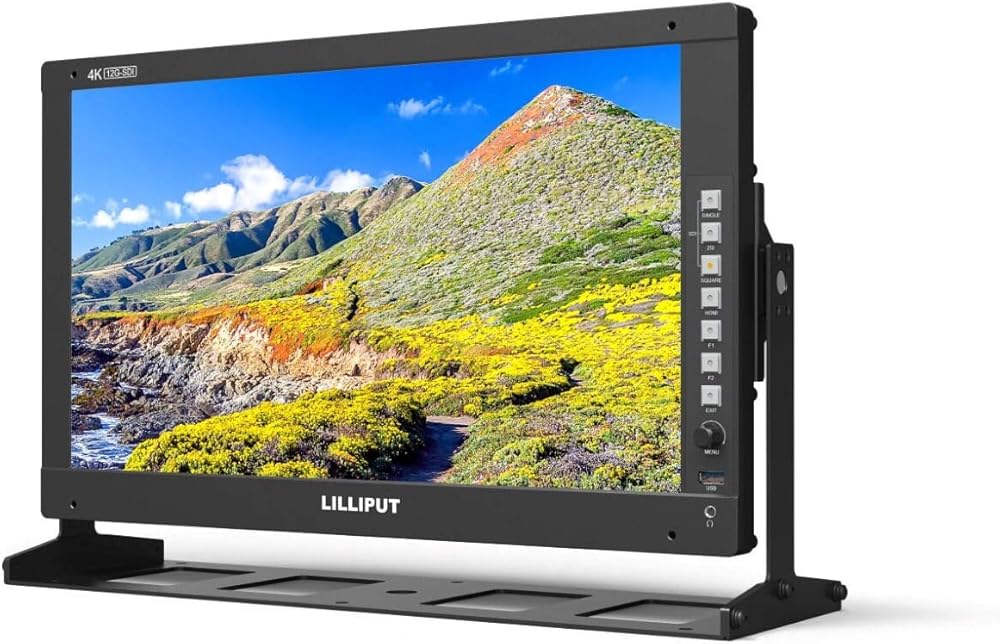

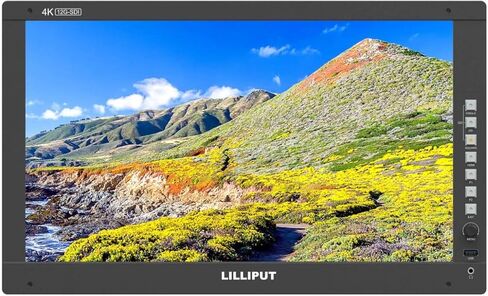

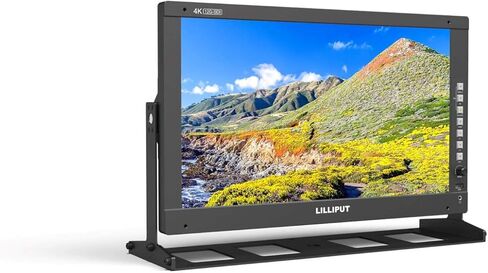

LILLIPUT 17.3" Q17 FHD PRO SDI Filmmaking Monitor 3D Lut HDR Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter
Main Features

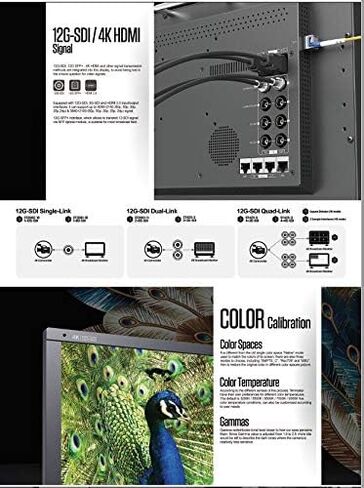

Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals.
Support HDMI 2.0/1.4 inputs and loop outputs.
support SFP optical Connector input, optical module for optional.
Loop output signals support up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and 4096x2160 23.98/24/25/29.97/30/47.95/48/50/59.94/60p.

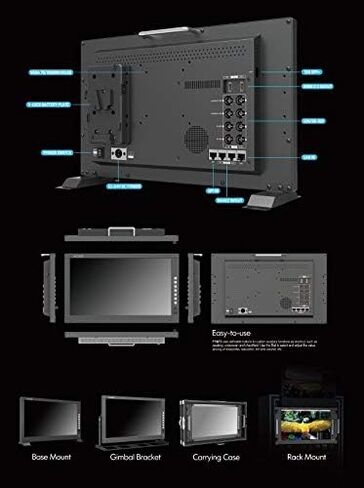

Monitor control via LAN, GPI, RS422.
Customized Menu Knob.

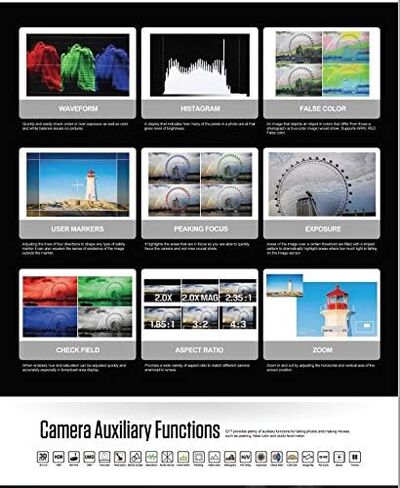

Support customized various waveform mode: Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter.
HDR (High Dynamic Range) display supporting ST 2084 and Hybrid Log Gamma.
Gamma selection: 1.8-2.8.
Custom 3D LUT file load through USB.
Wide color space supporting SMPTE-C, Rec709, EBU, and Native. Color Space/ HDR/Gamma /Camera Log comparison with original (side by side). Color Temperature: 3200K/5500K/6500K/7500K/9300K/User.
False Color: Default/Spectrum/ARRI/RED.
Aspect Marker (16:9/1.85:1/2.35:1/4:3/2.0X/2.0X MAG/Grid/User).
Aspect (Full/16:9/1.85:1/2.35:1/4:3/3:2/2.0X/2.0X MAG).
Audio: supporting Audio Phase and Level Meter, HDMI supporting 8 channels, and SDI supporting 16 channels.
Time Code: LTC/VITC.

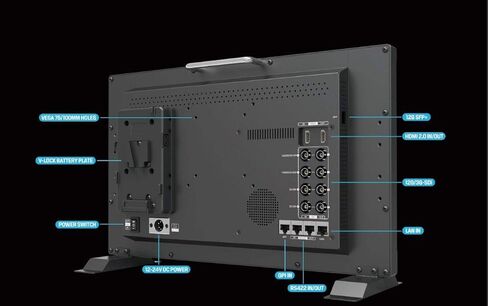

UMD display : White/Red/Green/Blue/Yellow/Cyan/Magenta text color for optional. Color Bar Mode: Rec601/Rec709/BT2020. Check Field: Red/Green/Blue/Mono. Zoom at any position and at a different scales. Peaking (Red/Green/Blue/White/Black). Tally (Red/Green/Yellow). Product Parameters Panel Size 17.3" Resolution 1920×1080 The luminance of white 300 cd/M2 Contrast Ratio 1200:1. Viewing Angle 170 /170 Deg (H/V) Input Connector 12G-SDI*2, 3G-SDI*2, HDMI 2.0, GPI, RS422, LAN, USB Output Connector 12G-SDI*2, 3G-SDI*2, HDMI 2.0, RS422, Earphone jack Power RequirementsDC 12-24V Power Consumpt
