Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X,10X,40X (S),100X (S, Oil); Viewing head: 45degrees;Inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55mm-75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mmx140mm), translation range: 3inch x 2inch (75mm-50mm)
Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X,10X,40X (S),100X (S, Oil); Viewing head: 45degrees;Inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55mm-75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mmx140mm), translation range: 3inch x 2inch (75mm-50mm)
Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X,10X,40X (S),100X (S, Oil); Viewing head: 45degrees;Inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch-2-15/16inch (55mm-75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mmx140mm), translation range: 3inch x 2inch (75mm-50mm)
Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity
Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
Digital camera: - true color 640 x 480 pixels - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
5-year warranty against manufacturing defects
Description

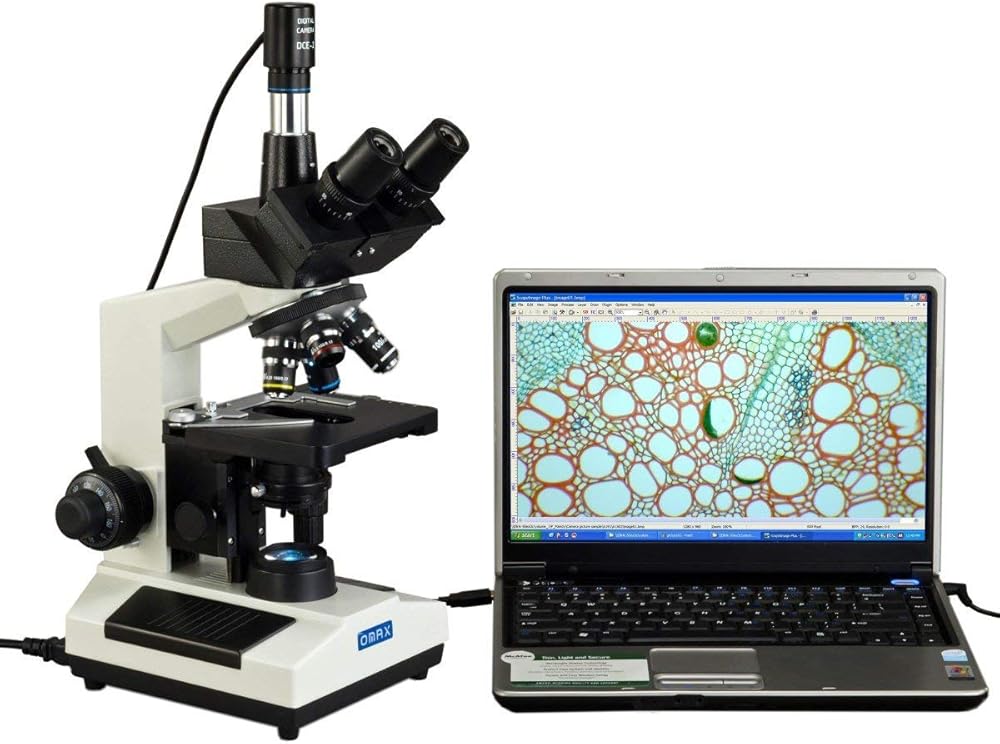

The advanced trinocular compound LED microscope provides an USB digital imaging system and a LED illumination system with the power range from 40X to 1000X. The digital biological microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The LED lamp can be replaced by yourself. The USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
