Sherline 4000C Inch version

This lathe can turn a part up to 3.5” in diameter over the bed or up to 1.88” over the carriage without riser blocks. With an optional riser block, parts up to 6” in diameter can be turned over the bed. The lathe has 8” of space between centers. The electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes. There is a second pulley position available that offers extra torque at low RPM if needed. This lathe is a good choice for clockmakers, modelers, or those who will be working on small parts. It is also the most compact lathe we make and is easily used where space is at a premium and can be stored on a closet shelf.
Standard equipment for the lathe includes:

A powerful 90V DC motor with electronic speed controller.
2.75; (70mm) x 6.0; (152mm) crosslide.
15; (381mm) steel bed to allow 8; (203mm) between centers.
Standard 1-5/8; (41mm) laser engraved aluminum handwheels.
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-footthree-wire power cord, and instruction manual.

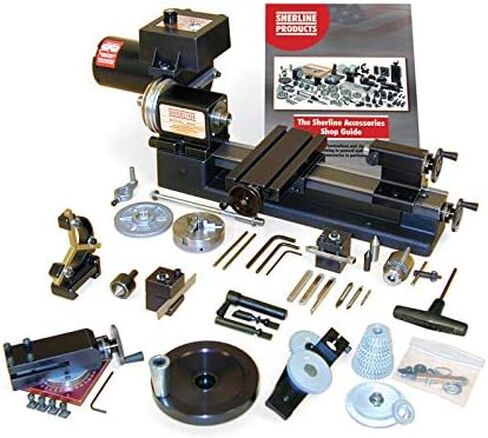

The C Package Includes: 3-jaw self-centering chuck

2.5″ 3-jaw self-centering chuck
1/4; tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt

Steady rest

Live Center

Compound Slide

Rear Mount Cutoff Tool and Holder

3-pc 1/4; HSS Cutting Tool Set (LH, RH, Boring)

5/32; T-driver

3-pc Center Drill Set

Sherline Accessories Shop Guide Book

Thread Cutting Attachment
