Goorui-USA; GHBH 001 12 1R3 Regenerative Blower
Pump and Vacuum Applications

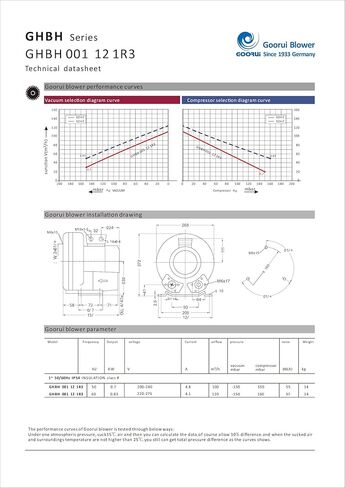

TECHNICAL DATA
Model: GHBH 001 12 1R3 Regenerative Blower
220V/1Phase/60Hz
Single Phase / Single Stage Blower
Power: 1.1 Hp / 0.83 kw
Air Flow: 71 (CFM) / 120 (m3h)
Vacuum: 60 (inches H2O) / 150 (mBar)
Pressure: 64 (inches H2O) / 160 (mBar)
Inlet / Discharge: 1-1/4"
Sound: 57 Db
Voltage: 220V
Current: 4.1 Amps
RPM: 3450
Dimensions(L*W*H): 260*268*272 (mm)
Weight: 14 Kg

TEM DESCRIPTION
High quality blower, German Technology
Low noise. Oil - free. Maintenance -free
Pump and vacuum applications
High temperature resistance, up to 130 Celsius degrees
Stable Pressure and Air Flow
Easy installation
Shock proof design, dynamic balancing minimizes vibration
SKF, NSK Bearings
Material; Cast aluminum alloy
CE, ISO9001 and RoHS Certifications
IP 55 Enclosure. Insulation Class: F

APPLICATIONS
Pneumatic conveying systems
Vacuum lifting and clamping systems
Packaging and printing equipment
Wastewater treatment systems
Air-knife drying
Food processin
Plastic and rubber industry
Beverage industry
Timber industry
Pharmaceutical industry
Hospital and laboratory equipment
Textile industry

WARRANTY
