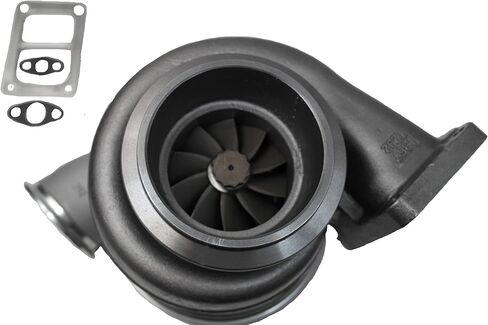

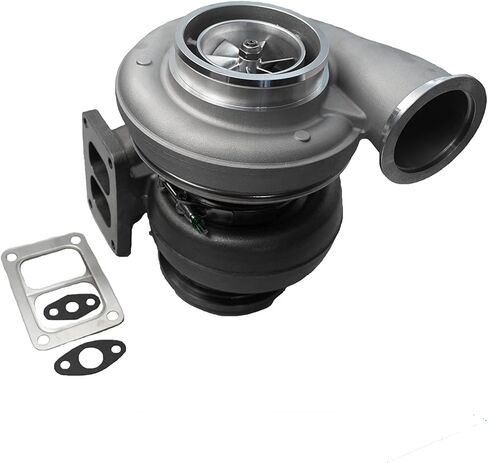

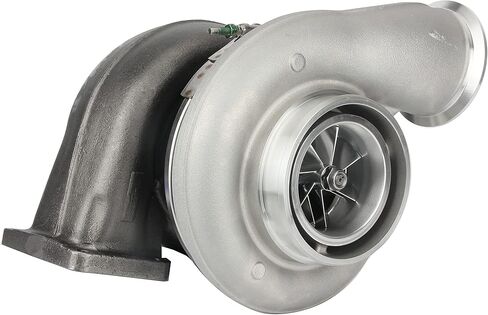

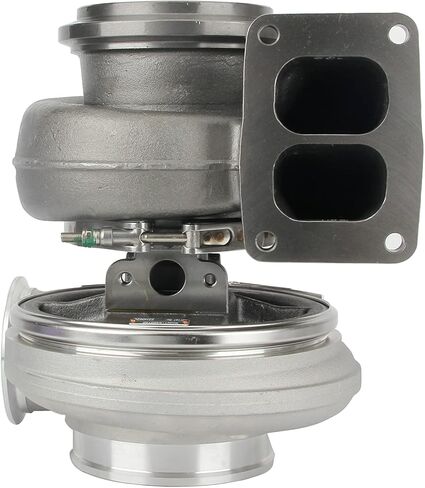

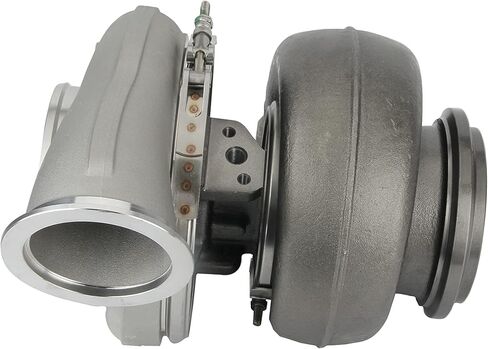

VIV S400 Turbo Charger 80mm Billet Compressor Wheel T6 Twin Scroll 1.32 A/R Turbine Housing

KWD 217
Weight
22.7 kg
– 1 +

Special Features

  • S480 T6 80MM 1.32 A/RTurbocharger

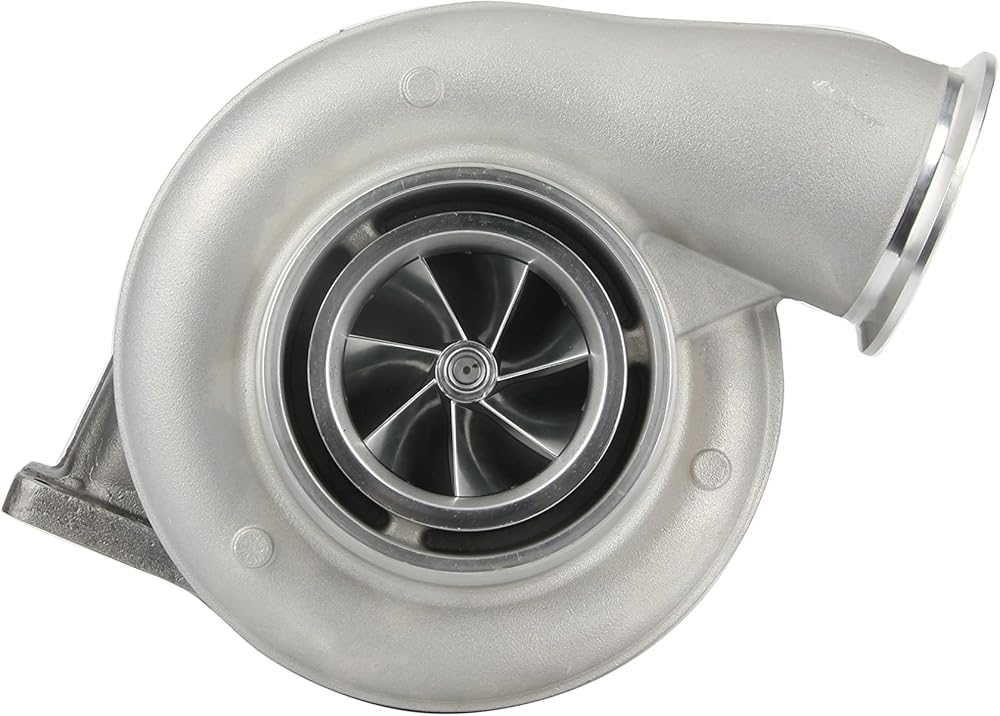

  • The Compressor wheel is a 7+7 bladed, 80mm inducer, 113mm exducer 117.5mm tip;Billet compressor wheel with extended tip technology good for high air flow;
  • Cold side : 5" inlet, 4.21" V-Band outlet;
  • Turbine wheel: 96mm/88mm Cast in Inconel Material for high-temperature operation; Hot side:1.32 A/R T6 twin scroll, 5.75" V-band outlet.
  • Hydrodynamic journal bearing system, upgraded with 360 Thrust bearing, more reliable
  • Balanced well , could be install directly
  • Good for 4.8L 5.3L 6.0L T6 single turbo system, which good around to 1000 horse power

Description

TECHNICAL DATA:

Compressor wheel: 80mm/113mm with tapered tip technology(117.5mm)

Compressor Housing: 5.00" air inlet / 4.21" charge pipe outlet

Turbine wheel: 96mm/88mm Cast in Inconel Material for high-temperature operation

Turbine housing: 1.32 A/R T6 twin-scroll Inlet, 5.75" V-Band outlet
Good up to around 1000 horse power
