12V DC 30A SPST Heavy Duty Waterproof Toggle Switch 2 Pin 2 Position ON-Off Toggle Switch with On/Off Mounting Panel for Auto Car Marine Boat Motor Control

KWD 4.500
Brand
EPLZON
Weight
59 g
– 1 +

Special Features

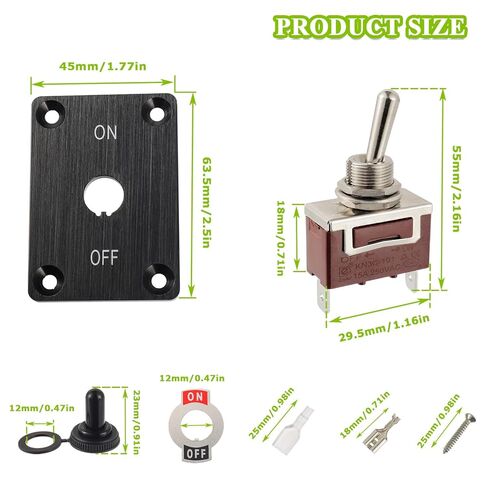

  • Rated Value:30A 12VDC;15A 250VAC;20A 125VAC;Installation hole diameter size: 12mm/0.47 in; Switch installation panel size: 63* 45*3 mm/2.48*1.77*0.12 in
  • The installation panel is made of high-quality aluminum plate and ABS material, which is sturdy and waterproof; The toggle switch is made of metal and phenolic resin; The shaft, bracket, and terminals of the switch are made of copper and nickel plated materials
  • Closed rubber waterproof cap can effectively block water and dust, with an IP65 waterproof rating, protecting the switch from moisture damage.With the switch installation panel, you can easily fix this toggle switch in the position you specify, making it easy to personalize your vehicle.
  • ON-OFF Toggle switch: This is an SPST toggle switch with a 2 Pin switch and a 2 Position design. When the car toggle switch is turned on, it will remain in the ON position until it is manually turned off.
  • Application: Suitable for most cars, ships, yachts, jeeps, campers, caravans, DIY projects, household appliances, etc.

Description

EPLZON 12V DC 30A SPST Heavy Duty Waterproof Toggle Switch with Mounting Panel

Applications:
Widely suitable for 12-24V systems, applied to automotive, cars, motorcycles, trucks, tractors, RVs, ATVs, etc.

Specifications：
🔸Voltage:30A 12VDC; 20A 125VAC;15A 250VAC
🔹Type:SPST 2 Pin ON-OFF
🔸Waterproof:IP65
🔹Operating Temperature:-25℃-+85℃
🔸Mechanical lifespan: Over 50000 cycles
🔹Electrical lifespan: Over 10000 cycles
🔸Contact:50 mΩ max
🔹Insulation :500V DC 1000MΩ min
🔸Dielectric Strength:1 Minute 1500V AC
🔹Thread: Easy to install
🔸Copper terminals: conductivity and corrosion resistance.

Package include:
🔸1 * toggle switch
🔹1 * switch mounting panel
🔸1 * waterproof cap
🔹1 * metal directional sign
🔸3 * 6.3mm wiring terminals
🔹3 * 6.3mm rubber sleeves
🔸4 * installation screws
