2002692 Outer Stub Axle Shaft & Inner Knuckle Oil Seal Kit Fit for Ford F250 F350 F450 1998-2004 Excursion 3/4 and One Ton 4x4 Trucks SRW or DRW with Dana 50/60

KWD 27.500

Brand
Werhoo
1 +

Special Features

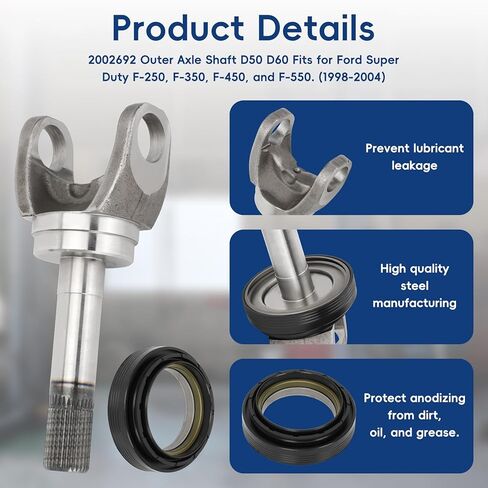

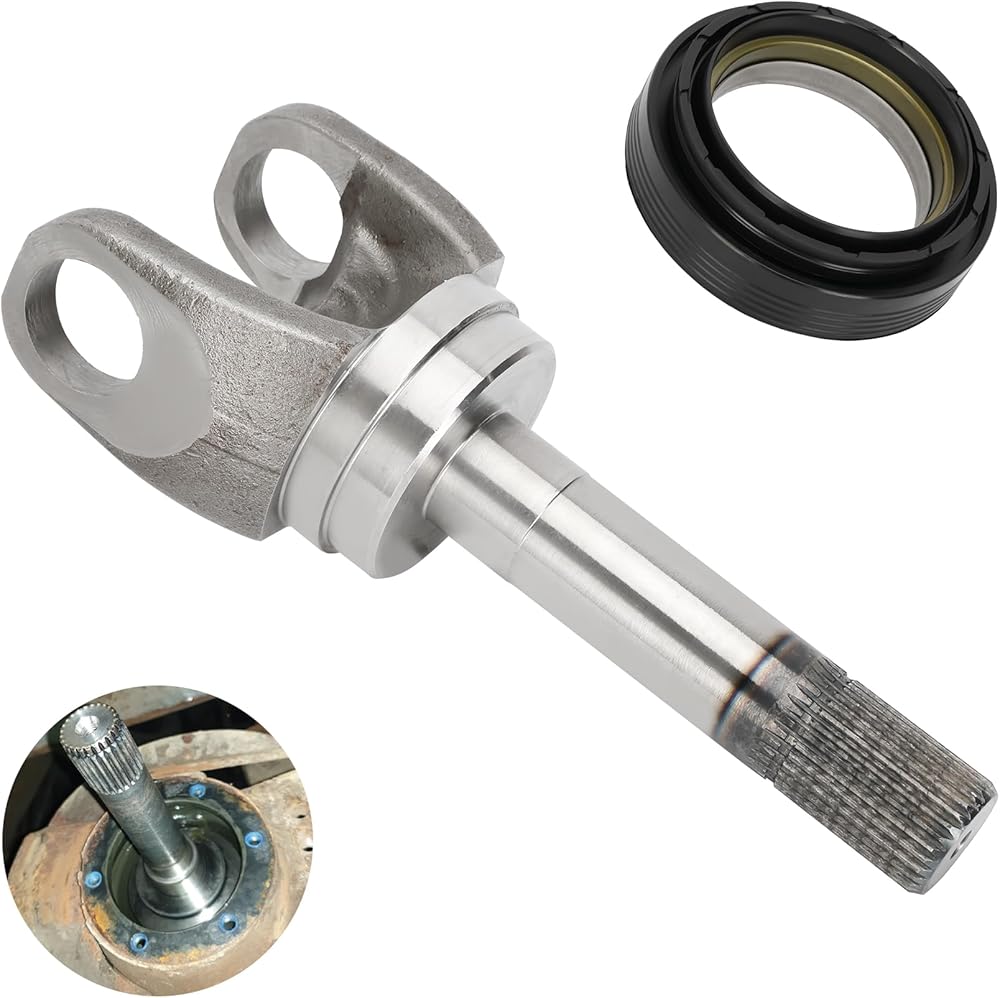

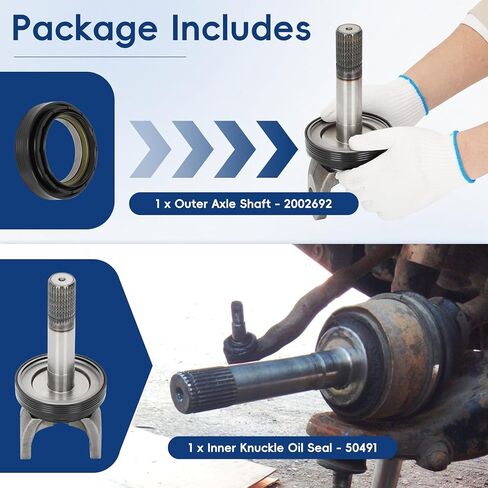

  • Package Includes: 1 x 2002692 Outer Axle Shaft with 1.31″ Spline diameter, 30 Spline, 9.31″ Centerline of u-joint to end of yoke, fitting U-Joints 5-806X, SPL55-3X, SPL55-4X, 5-733X, and 1 x 50491 Inner Knuckle Oil Seal designed to replace the front axle shaft seal for 50491, 28600, 710493

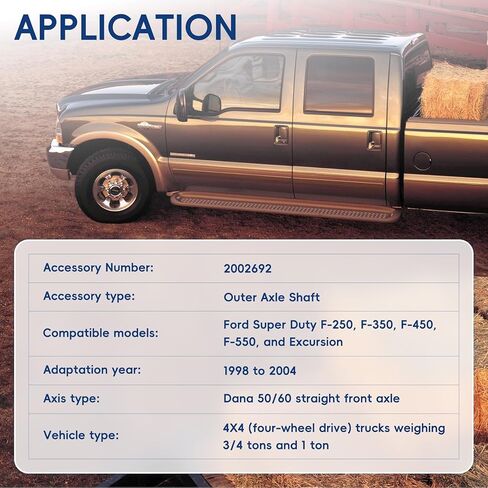

  • Application: The Ford Dana 50 or 60 Front Outer Axle Shaft, suitable for 1998-2004 Ford SUPER DUTY F250, F350, F450, and F-550 EXCURSION 3/4 and 1 ton 4X4 trucks with Dana 50/60 straight front axle and Replacement for 2002692 4C3Z3B387AA 50491 F81Z3254CB. Note: This Shaft Was Only Used In Front Axles With Standard Leaf Spring Suspension

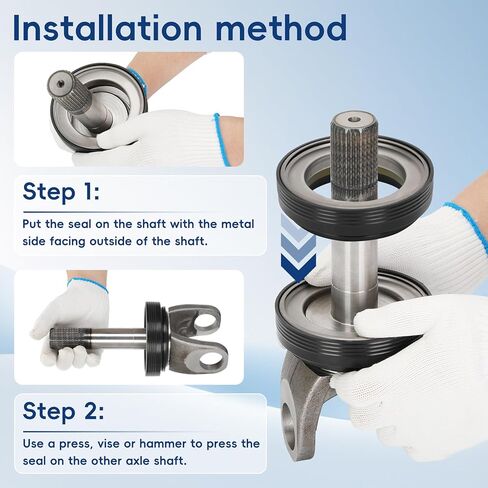

  • Installation Method: First, Put the seal on the shaft with the metal side facing outside of the shaft, and then use a press, vise or hammer to press the seal on the other axle shaft
  • Quality Material: Crafted from high-quality steel and rubber, it's sturdy and durable. The 50491 Inner Knuckle Oil Seal safeguards against dirt and oil contamination, preventing leaks, minimizing installation damage, and boosting efficiency to the max
  • No risk shopping: This 2002692 Outer Stub Axle Shaft provides high-quality after-sales service.You can take it home and try it out first.If it doesn't work,please feel free to contact our customer service.We will reply to you within 24 hours.If you encounter any problems or have any suggestions for our products or services during use,you can also contact us at any time via email

Description

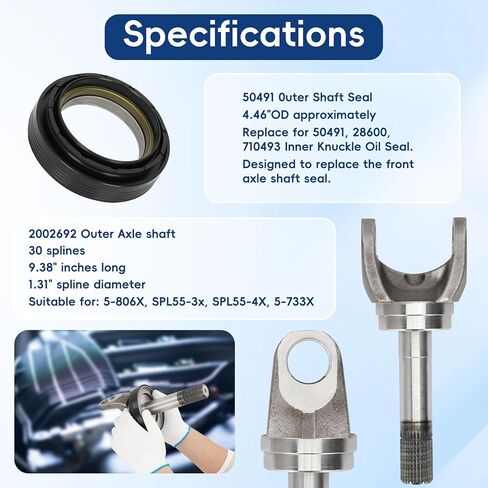

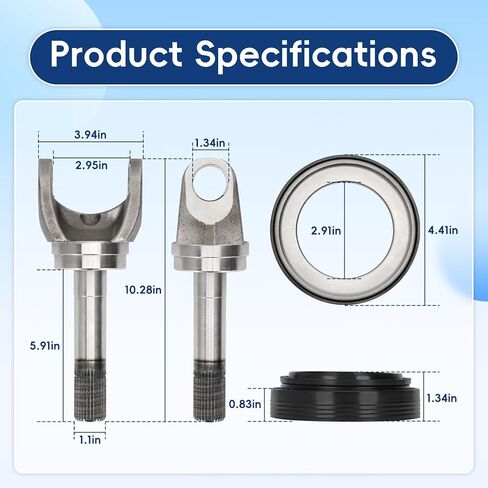

Fitment: For Ford 1998-2004 SUPER DUTY F250 F350 F450 EXCURSION 3/4 and 1 ton 4X4 trucks with Dana 50 / 60 straight front axle. ( Front axles with standard leaf spring suspension ONLY.) Features: 1) 1.31″ Spline diameter, 30 Spline, 9.31″ Centerline of u-joint to end of yoke. Use with a 5-806X or SPL55-3X, SPL55-4X U-joints 2) Manufactured from quality steel, using top of the line machining and measuring equipment to ensure each part is manufactured to OEM specifications. Anodized black to protect them from all the dirt, oil, and grease that could potentially break down the tool quality 3) Increase in U-joint size to provides 25% higher yield strength than original U-joints. Upgrade snap ring retention reduces shock load failures Package included: 1 x Outer Axle Shaft - 2002692, 1 x Inner Knuckle Oil Seal - 50491 Description: Part Number: 4C3Z3B387AA, 47750, 2002692 Outer axle shaft is 9.38" inches long, 30 spline, 1.31" spline diameter. Uses 5-806X (Old Numbers 5-732X or Kit SPL55-3X) U-Joint IS NOT INCLUDED IN THIS LISTING. When measuring front axle shafts, all measurements should be taken from center of U-Joint to end of the spline. Application for: For Ford F250 F350 F450 F550 1999-2004 3/4 And One Ton 4x4 Trucks SRW or DRW. For Ford EXCURSIONS 2000-2005 4X4 For FORD DANA 50 OR 60 FRONT OUTER AXLE SHAFT Note: This Shaft Was Only Used In Front Axles With Standard Leaf Spring Suspension NOTE Outer axle shaft is 9.38" inches long, 30 spline, 1.31" spline diameter. Uses 5-806X (Old Numbers 5-732X or Kit SPL55-3X) U-Joint IS NOT INCLUDED IN THIS LISTING. When measuring front axle shafts, all measurements should be taken from center of U-Joint to end of the spline.
