Wireless Visual Ear Pick User Manual
Basic Information
This manual provides an introduction to the product features and step-by-step instructions. It introduces methods to eliminate unexpected events that may occur due to improper operation and provides precautions for use.
Please read the manual carefully to obtain the best results.
Product Parameters
Product name: Wireless visual ear pick
Host weight: 46g
Network standard: IEEE 802.11b/g/n
Antenna: Built-in IPEX antenna
Working frequency: 2.4GHZ
Image transmission rate: 30fps
Battery: 130mAh
Working time: 40 minutes to 45 minutes
Charging time: 45 minutes
Input: 5V-0.2A
Optimal focal length: 1.2-1.5 cm

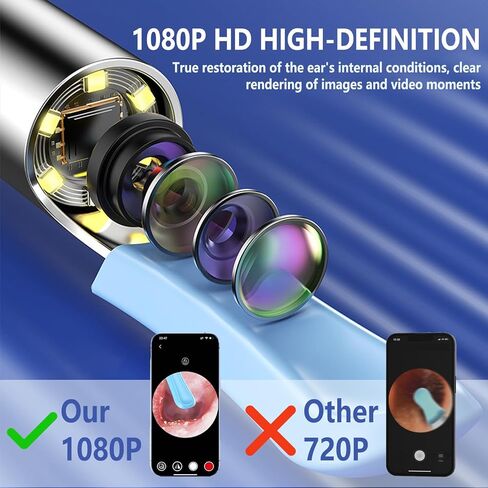

Pixels: 1920*1080 pixels
Gyroscope: 6 axes
How to use?
1. Search and download the application AIR-LOOK in the Apple or Android software store or scan the QR code to directly download the APP. Please select the corresponding APP installation according to the mobile phone system used. Attached: Apple system ear pick installation operation video, Android system ear pick installation operation.
2. Press the power button for 2 seconds to turn on the device. The blue light flashes and the device is waiting for connection.
3. Enter the phone settings, turn on Bluetooth and wireless LAN, find the device name starting with AIR-ES-***** in the wireless LAN list, click to connect to the device with this name, and the blue light will be on after the connection is successful.

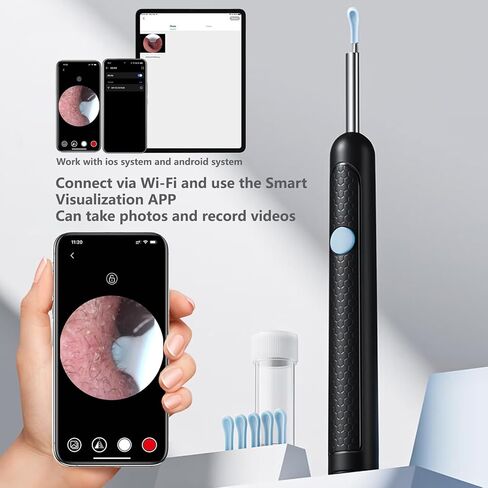

4. After the WiFi connection is successful, open: AIR-LOOK APP, click Start, and the imaging interface is displayed for use.
Warm Reminder
1. When there is no image, the image is still, the screen is distorted, etc., please first confirm that the phone and the device are connected to WiFi, and you can also try to restart the device or the mobile phone APP.
2. If the product cannot be turned on or the LED light on the body flashes during use, please charge the product in time to ensure that the battery is charged.
3. If the prompt cannot be connected when connecting, it is that the visual ear pick is connected to another connected mobile phone. Please turn off the device and restart it to connect the visual ear pick again.
4. The indicator light flashes when the product is turned on, and the indicator light is always on when the WiFi signal is connected. The indicator light flashes quickly when the battery is low, and the indicator light is always on when the product is charging. The light goes out when it is fully charged.
5. Because the ear canal is curved, please gently adjust the direction of the otoscope until you can clearly see the eardrum.
6. The focal length of this product is fixed, and the object is clearest at 1.5-2 cm from the lens. During use, please adjust the distance between the otoscope and the ear until the focus is accurate and the image is clear.
Precautions
1. Please observe the surroundings before use. Do not use the product in an environment where people are running to avoid collision and injury.
2. Children are prohibited from using this product alone to avoid accidental injury.
3. Do not place the main body of the host in liquid to avoid damage caused by immersion.
4. The product has a built-in rechargeable lithium battery. If it is not used frequently, please keep it charged once a month.
5. During use, the temperature of the product will rise slightly (no more than about 45°C). Please use it with confidence.
6. Do not use a charger or mobile power supply with a voltage higher than 5V to charge this product.
