40AMP 12V DC RELAY HUFTY-DUTY ، مع تسخير الأسلاك SPST من 4 أسرّ

KWD 6
ماركة
Losato
– 1 +

مميزات خاصة

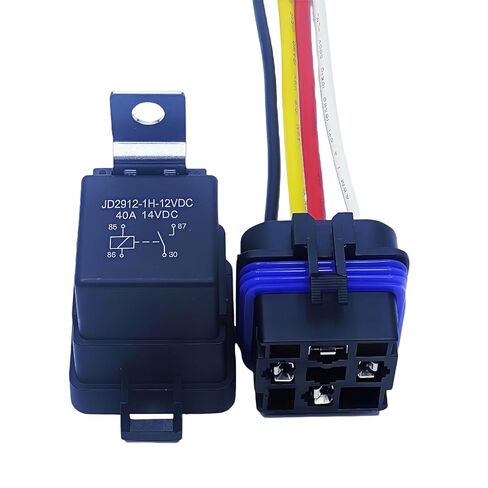

  • [Product Description]: 12-volt DC (maximum 14-volt) waterproof 4-wire terminal SPST (single-pole double-throw) pure copper coil relay. The contact switching voltage is 12 volts, the coil power is 1.8 watts, the rated current is 30 amperes, and it has a high switching capacity of up to 40 amperes.

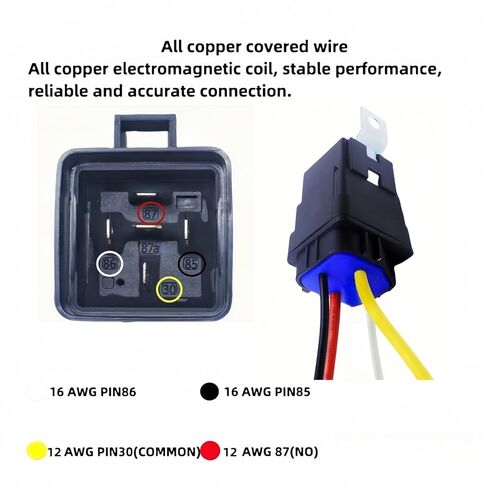

  • [Harness specification] : Upgraded Heavy 12/16 AWG harness. Black-16awg Pin85 (ground), white-16AWG Pin86 (trigger), yellow-12AWG Pin30 (VDC), red-12AWG Pin87 (output N/O), (Specific red, black, yellow, and white wires correspond to the interface, please open the relay connection port to check the corresponding number.
  • [Waterproof and dustproof] : The connection between the relay wiring harness and the socket is made of high-quality rubber ring connection package, waterproof and dustproof, and effectively protect the internal line.
  • [Material]Losato5 pin waterproof relay adopts pure copper core cable, tinned copper wire, good conductivity and stable performance. The relay kit adopts advanced flame retardant material, which is not easily fusible at high temperature, ensuring safe use and long service life.

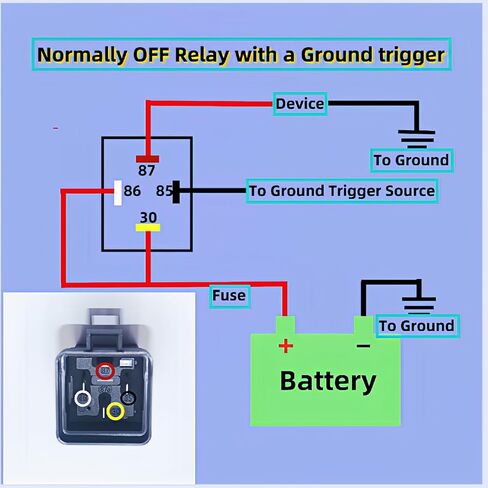

  • 【 Easy Installation 】 : Fixed metal holes, easy to install. Just follow the wiring diagram. This product is packaged in two packs.

وصف

Losato 40AMP 12V DC Waterproof Heavy-Duty Relay, with 4-pin SPST Wiring Harness, 4-pin SPST Automotive Relay, The Wiring Harness is Pure Copper tin-Plated Wire-2 PACK
