Product Specifications:
Switch Type: On/Off
Actuator Type: Rotary
Continuous Current: 200Amps DC
Intermittent current: 400Amps DC
Starting current: 1200Amps DC
Maximum voltage: 48V-60V DC
Dielectric strength: 1500VAC/1min
Electrical life: 10000 times10
Screw Terminal Distance: 30mm/12"
Plastic Shell Hole Centers: 55mm/216"
Overall Size: 268" x 268" x 30" (L*W*H)
Working Temperature: -30C to +60C
Material: Insulated Plastic & Tinned copper

NOTICE:
1 Please cut off the engine before installation
2 Make sure the voltage and amperage that you want, and screw the switch on the installation place
3 After installation, turn on the engine and test the switch

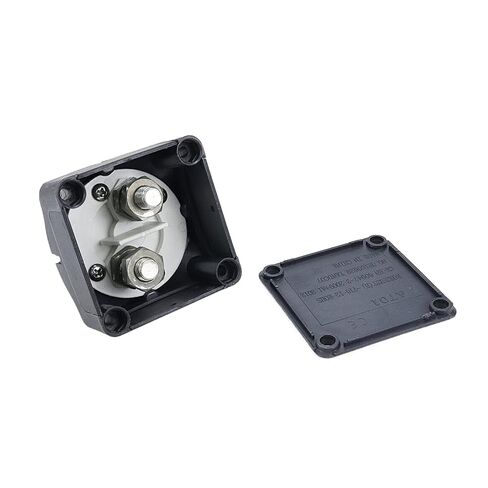

4 Modengzhe 400A battery switch can be used as an independent installation or connected with other switches In the ON/OFF state, the switch knob cannot be moved, and the switch state can be changed by 45 degrees counterclockwise The movable 4-side inserts and the back cover avoid short-circuiting of the connection terminals , can be installed on the surface or behind
