【Compatible Vehicle】
Fits 2004-2008 for Kawasaki KX250F
Fits 2004-2006 for Suzuki RM-Z250

【Replacement Part Number】
Cylinder: 11005-0005, 11005-0037, 11005-0069, K1100-50005, K1100-50037;
Cylinder Base Gasket: 11061-0025, K1106-10025;
Cylinder Head Gasket: 11004-0090, K1100-40090;
Piston (Std): 13001-0052, K1300-10052, 13001-0088;
Piston Circlips: 92033-1161, K9203-31161;
Piston Pin: 13002-0018, K1300-20018;
Piston Ring Set (Std): 13008-0028, K1300-80028;

【Installation Position & Precise Fits】
Mounted On Engine. Engineered within strict tolerances to directly replace your old or broken Cylinder Piston Ring Gasket Kit.
If you want to determine if this part will fit your vehicle, please send us your VIN to verify fitment.
Notice:
Please use the appropriate service manual for the operation. If you do not have an installation manual or are not skilled enough
to install this part, it is recommended that you seek help from a qualified mechanic.

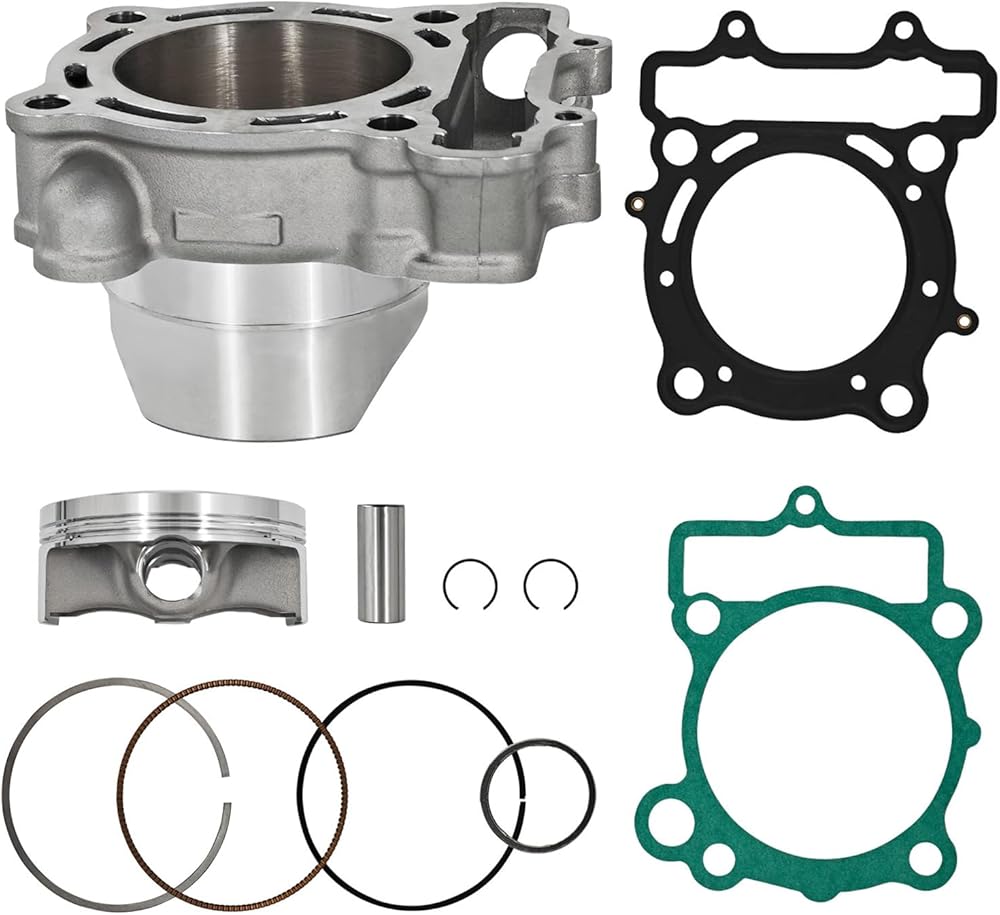

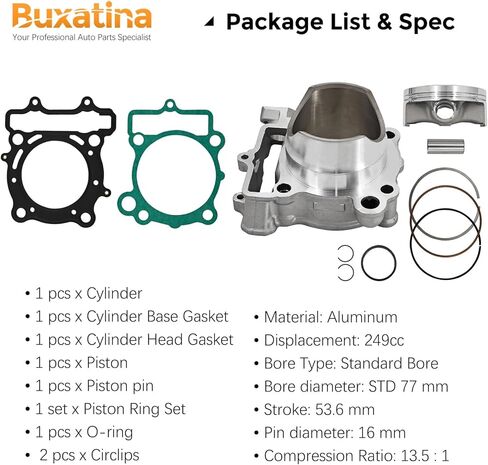

【Package List & Specification】
● 1 pcs x Cylinder;
● 1 pcs x Cylinder Base Gasket;
● 1 pcs x Cylinder Head Gasket;
● 1 pcs x Piston;
● 1 pcs x Piston pin;
● 1 set x Piston Ring Set;
● 1 pcs x O-ring;
● 2 pcs x Circlips;
Material: Aluminum;
Displacement: 249cc;
Bore Type: Standard Bore;
Bore diameter: STD 77 mm;
Stroke: 53.6 mm;
Pin diameter: 16 mm;
Compression Ratio: 13.5 : 1

【Excellent Performance】
● The Cylinder and Piston are made of high-strength aluminum with excellent wear-resistance, fatigue-resistance,
and high temperature-resistance.
● Standard bore size Gaskets with good sealing performance, fully satisfying the application requirement.
The Piston Ring is semi-nitrided.

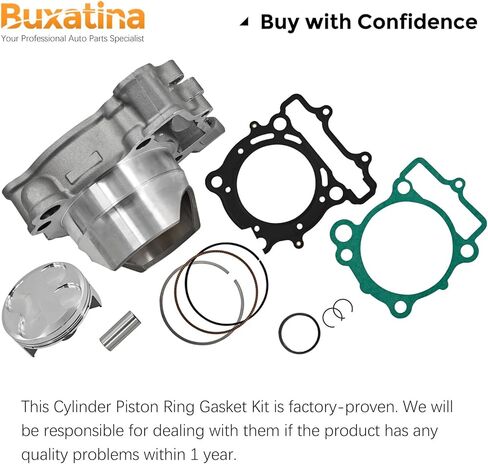

【Buy with Confidence】
This Cylinder Piston Ring Gasket Kit is factory-proven. We will be responsible for dealing with them if the
product has any quality problems within 1 year.
