DC12V 24V 36V 48V 60V 72V 84V Battery Meter ، شاشة جهد بطارية الشاشة الرقمية مع إنذار منخفضة الجهد ، مؤشر بطارية الرصاص والليثيوم ، ملحقات السيارة

KWD 15.500
ماركة
DXNQ
وزن
57 g
– 1 +

مميزات خاصة

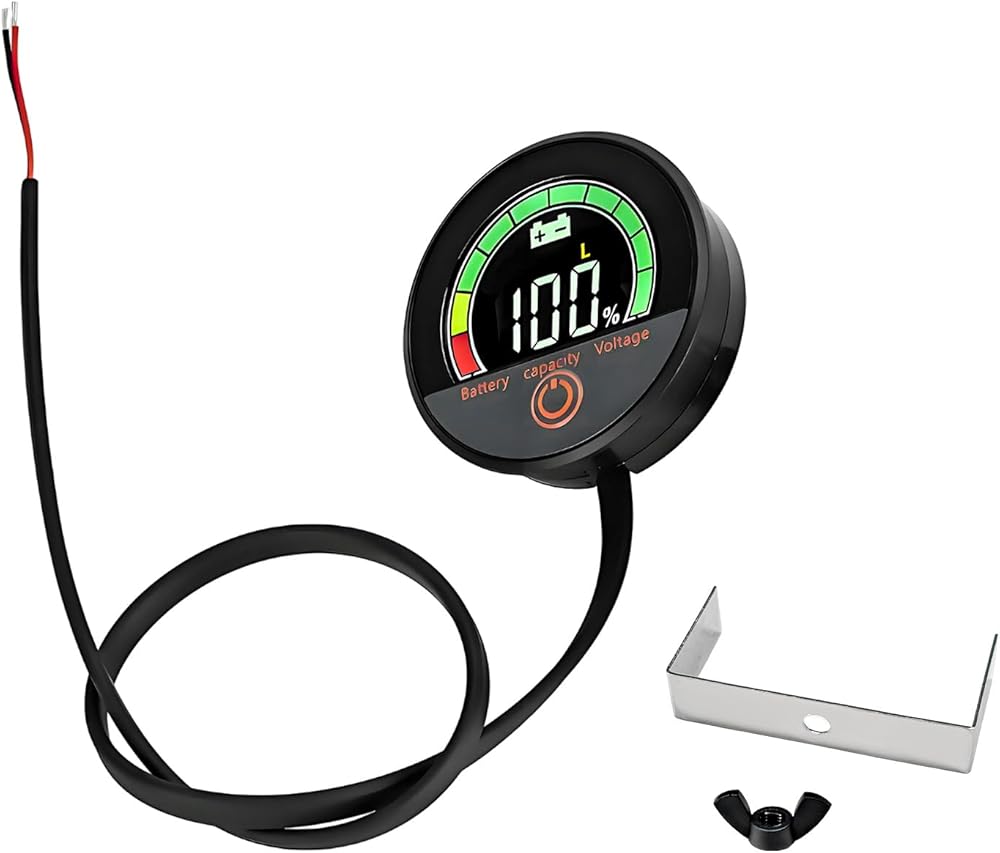

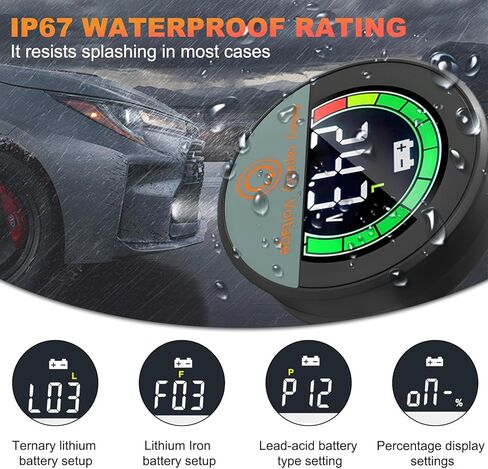

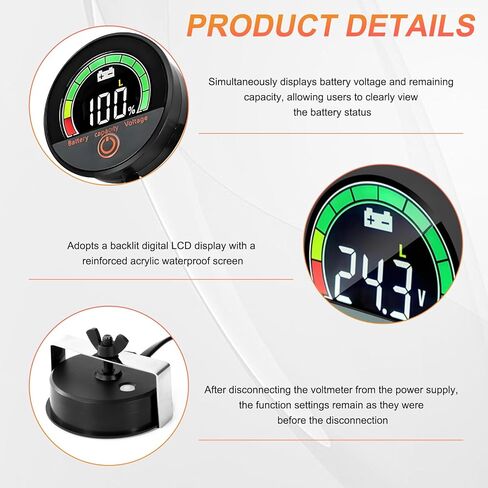

  • 【Digital Display】: LCD presents clear battery voltage and remaining capacity, the display with backlight is easier to read and allows users to quickly access the battery status. The waterproof screen protector film and sealed ABS construction make the voltmeter IP67 waterproof.
  • 【Low Voltage Alarm】: When the battery level falls below 10%, the battery icon on the meter will flash to alarm you that the battery power is about to run out, allowing the user to keep track of the battery condition so that it can be recharged in a timely manner.
  • 【Low Power Consumption】: Our voltmeter is a low power device, its consumption is less than 15mA in normal mode and less than 1mA in low power mode. On the main page, 2 short presses of the button in succession will turn off the display and enter the low power mode.
  • 【Supported Battery Type】: The voltage measurement range of this battery tester is DC7-100V, it supports to measure 3-20 series lithium battery packs (L), 4-24 series lithium-iron battery packs (F), 12V, 24V, 36V, 48V, 60V, 72V, 84V lead-acid batteries (P).

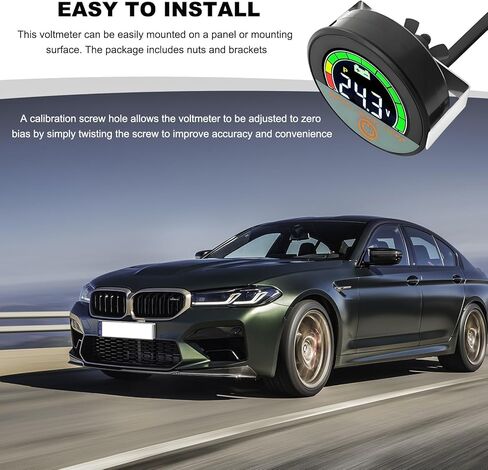

  • 【Installation & Calibration】: The wire length of the meter is 15.74'' and it is equipped with a nut and a bracket, which allows it to be easily mounted on the panel. Twisting the screws in the calibration screw holes on the back of the meter can adjust the voltmeter to zero bias.

وصف

Specification:
Material: ABS
Quantity: 1 PCS
Color: Black
Weight: 0.15 lb

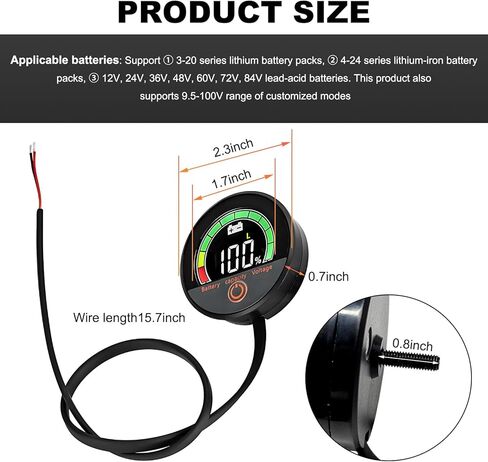

Gauge Size: 2.32×2.32×0.71 inches
Wire Length: 15.74 inches
Feature: Waterproof, Sturdy, Precise
Fit Type: Universal Fit
Function setting instruction:
-Step 1, in the main page, press and hold the button for 2 seconds to enter the setting page, then you can select L03 (3 series lithium battery pack), F03 (3 series lithium-iron battery pack) or P12 (lead-acid battery 12V) by pressing the button briefly.
-Step 2, selecting L03, F03 or P12 by pressing the button for 2 seconds, the value will blink, then you can enter the next setting page to select L03-L20, F03-F24 or P12-P84 by short press the button.
-Step 3, select the desired mode and long press the key for 2 seconds to confirm (the value is always on after confirmation), then long press the key for 2 seconds to return to the main page (the setting is complete), or short press the button can also enter the next setting page.
-Backlight setting: press the button for 2 seconds in the main page to enter the backlight setting option function, in the B-0 page press the button for 2 seconds and then 0 blinks, then press the button briefly to select the mode you need from B-0 to B-9, press the button for 2 seconds to confirm the selection, then press the button for 2 seconds to return to the main page (the setting is finished).
