Specification:
Item Type: Air Rivet Gun
Material: Aviation Aluminum
Product Model : KP-702
Applicable Rivets: Steel/aluminum rivets
Aluminum/iron Nail Capacity: 2.4mm/0.09in, 3.2mm/0.13in, 4.0mm/0.16in, 4.8mm/0.19in
Stainless Steel Nail Capacity: 2.4mm/0.09in, 3.2mm/0.13in, 4.0mm/0.16in
Working Stroke: 18mm
Working Pressure: 0.5-0.7MPA

How to Use:
Replace the Claw Piece:
1.Use a wrench to loosen the outer sleeve counterclockwise.
2.Remove the outer sleeve.
3 Use a wrench to loosen and remove the front jaw sleeve.
4. Replace the three-claw piece, install the front claw cover and the outer sleeve in turn, to complete.

Actual Operation of Adding Hydraulic Oil:
1. Disassemble its base.
2. Clamp the hex nut to pull out the piston.
3. Pour hydraulic oil into the small hole.
4. Install the piston and the base in turn to complete.

Actual Operation of Adding Hydraulic Oil:
1. Disassemble its base.
2. Clamp the hex nut to pull out the piston.
3. Pour hydraulic oil into the small hole.
4. Install the piston and the base in turn to complete.

Package List:
1 x Air Nozzle
1 x Rivet Gun
1 x Nail Bottle

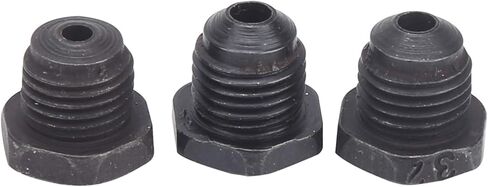

3 x Guide Nozzle
2 x Wrench
1 x Manual
