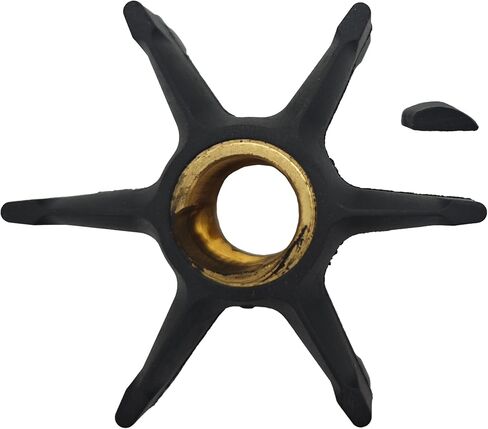

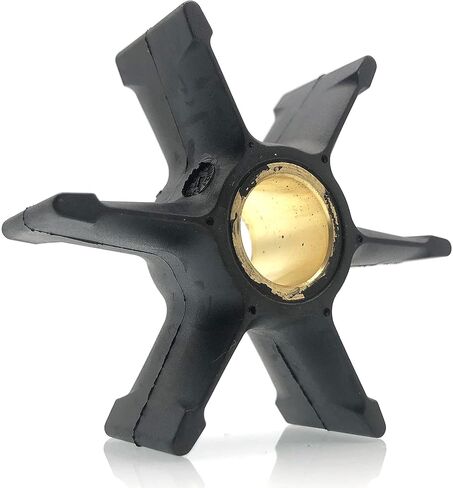

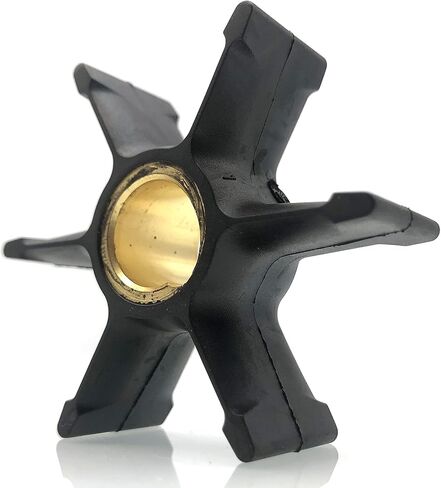

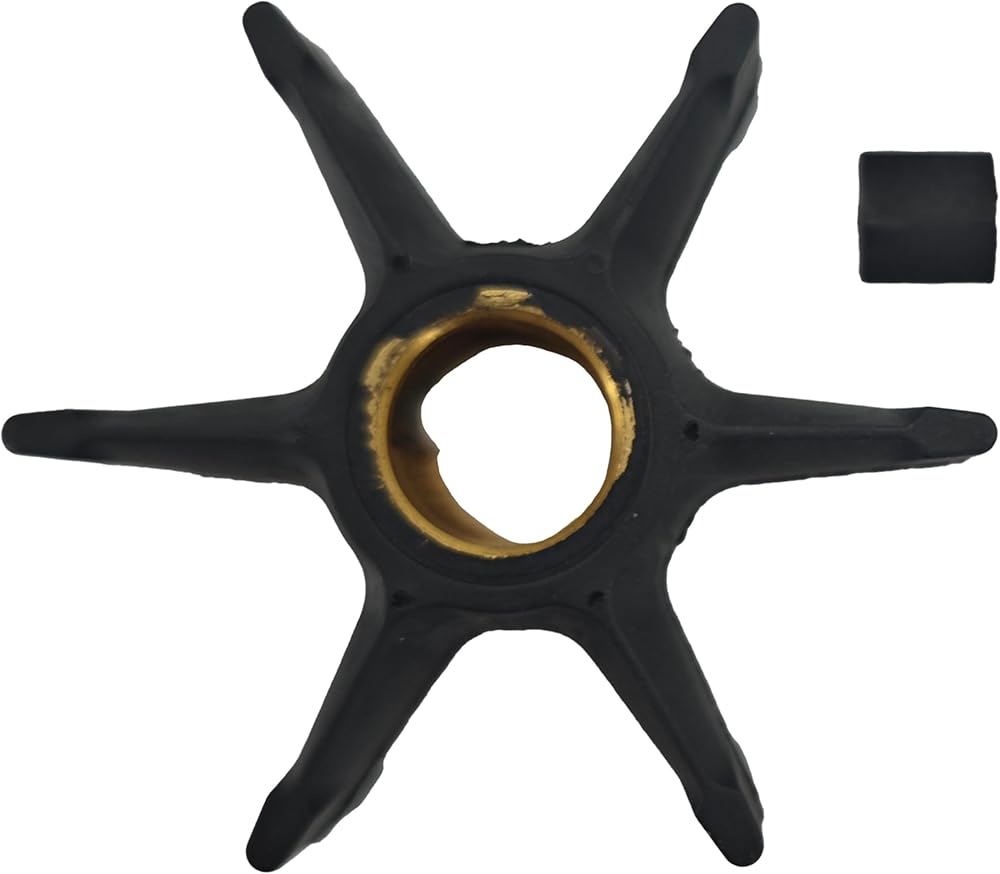

Package Includes:
1* Water Pump impeller
1* Key
Dimension ：
Number of Blades: 6
Net Weight: 59g
Height:22.15mm
External Impeller Overall Diameter: 69.39mm
Internal Shaft Insert Diameter: 16.10mm
Replace:
Johnson Evinrude OMC 0396809,0777214,0777828
Sierra 18-3368
Mallory 9-45208
GLM 89780
SEI 96-365-03BE
OBR Red Rhino JE-206
CEF 500346

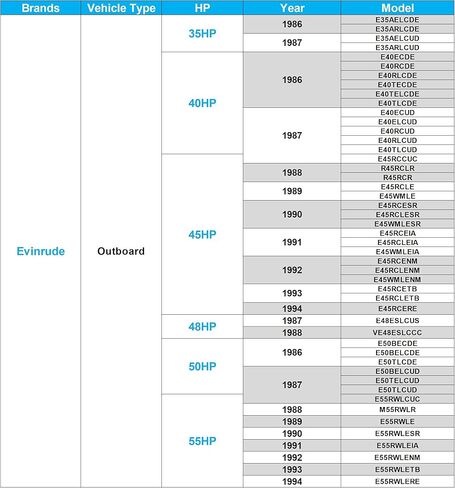

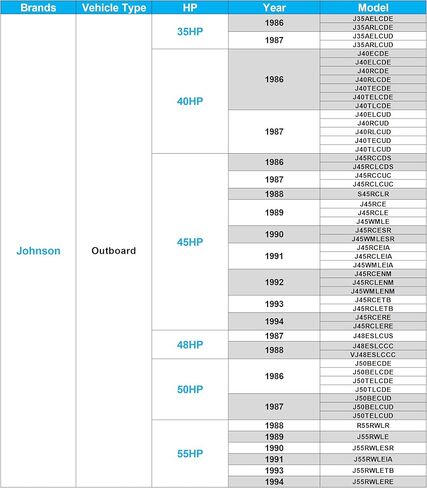

APPLICATION(For reference only):
Johnson Evinrude 40 hp 1986-1988
Johnson Evinrude 45 hp 1989
Johnson Evinrude 45 hp Commercial 1986-1988
Johnson Evinrude 48 hp 1987-1988
Johnson Evinrude 50 hp 1986-1988
Johnson Evinrude 55 hp 1989
Johnson Evinrude 55 hp Commercial 1986-1988
Installation steps：
1.Before installing the new impeller, lightly coat the wear plate and the inside of the pump housing with marine grease to lubricate the impeller until water is flowing through the pump.
2.Press the pump housing down over the impeller while turning the drive shaft clockwise to get the impeller vanes facing the proper direction
3.Before reinstalling the lower unit, lubricate the drive shaft splines with marine grease.
Pay attention:During installation, take care to properly align the shift linkage mechanism with the lower. This is an easy mistake for newbies to make
Kind tips:This product does not come with an instruction manual.Please find a professional to install it. If there is
a product problem, please contact me
