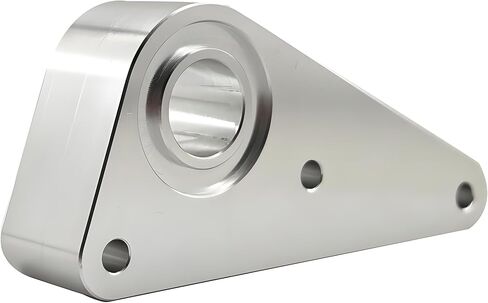

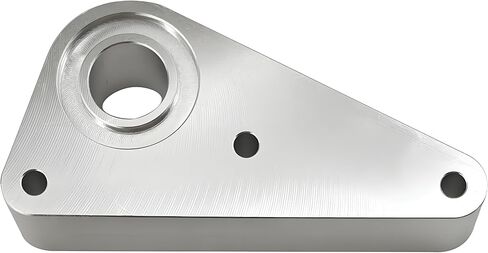

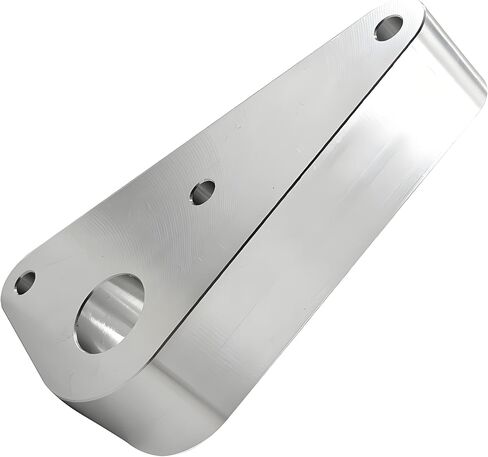

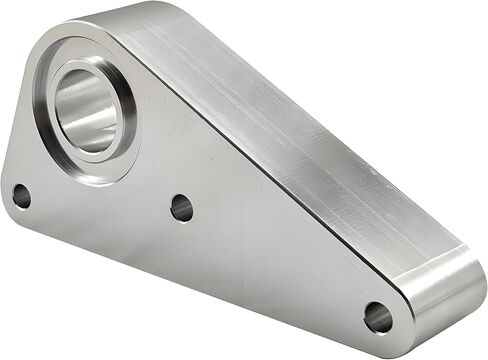

FITMENT: This 14010 deep transmission pan filter extender for A727, A904, A518 & A618 Transmissions.Fits applications where a stock depth pan is replaced by 14210 deep pan
FEATURE: Extends filter for use on deep transmission pans,drops the filter 1” ensuring proper oil pickup in all conditions. Filter extender must be used in extreme off-roading applications
MATERIAL: Made from high-strength aluminum alloy for corrosion resistance & heat tolerance, even under harsh conditions, it can operate efficiently

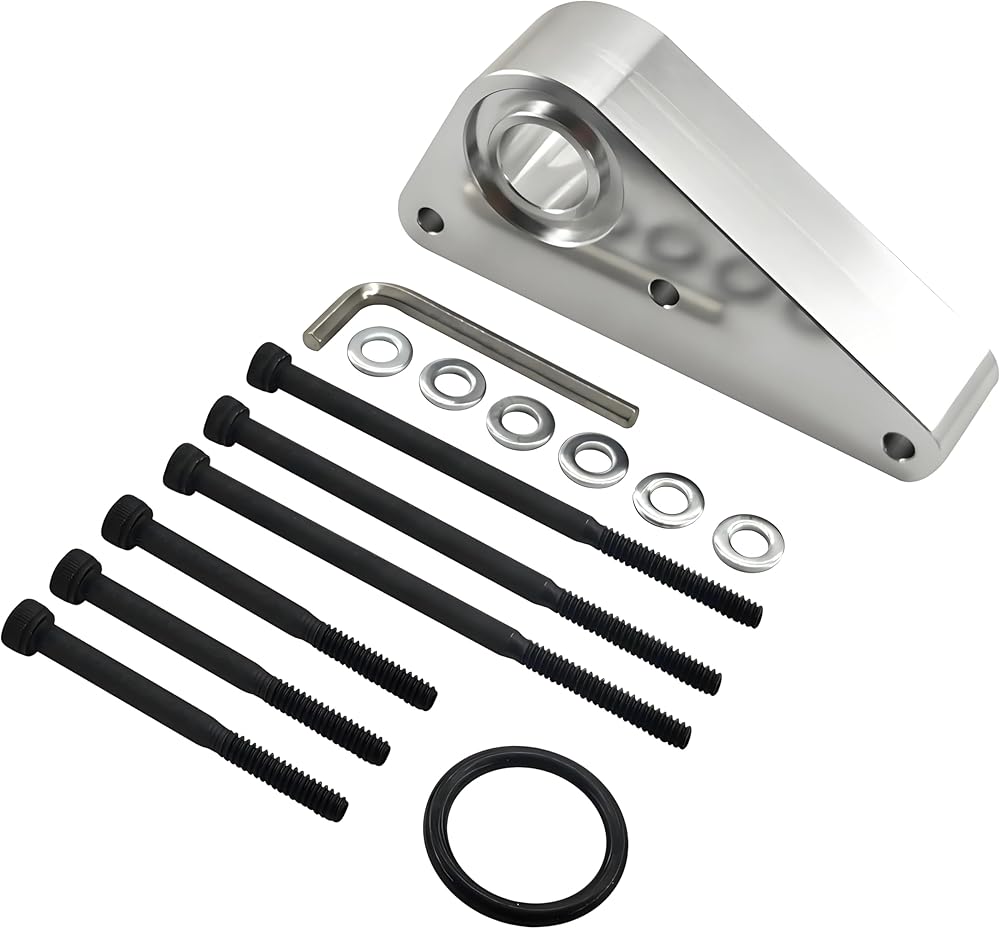

PACKAGE: 1 X 1” Spacer Block, 1 X O-ring, 3 X 10-24 x 2 1/4” Bolts, 3 X 10-24 x 3 1/2” Bolts, 6 x Flat Washer, 1x5/32” Allen Wrench
NOTE: Be careful when removing because the filter will still have fluid inside

Before installation:

Carefully remove the oil pan and drain all oil

1. Clean the surface with brake cleaner or a lint free cloth

2. Install the O-ring in the groove of the gearbox filter extender

3. After determining the required bolt length for the transmission, install the bolts using the provided washers

4. Use a 5 32 "hex wrench to tighten the bolt

5. Tighten the bolts to a maximum of 14 inch pounds

6.After installation, refill the transmission oil to the correct level for testing
