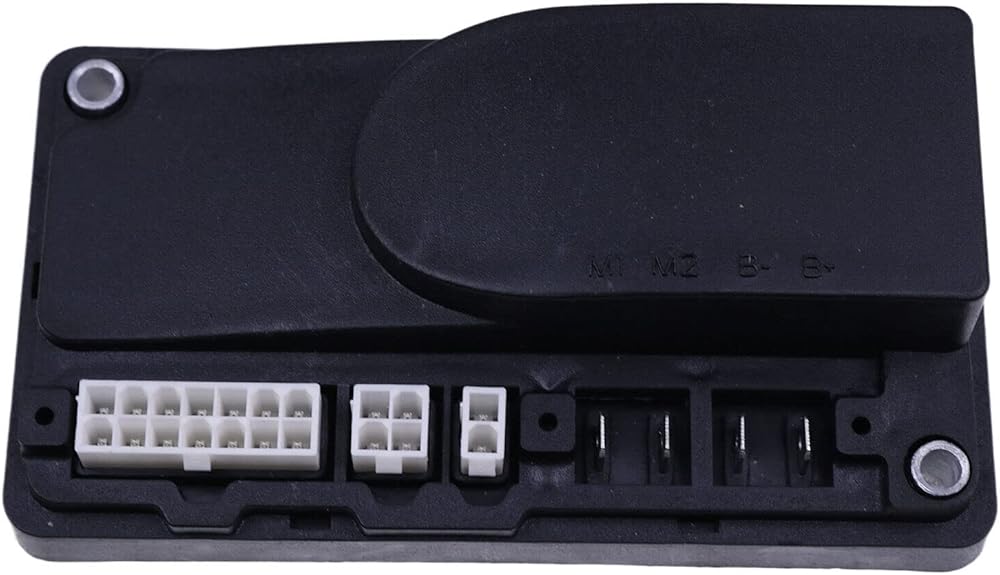

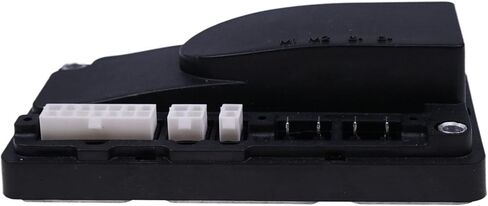

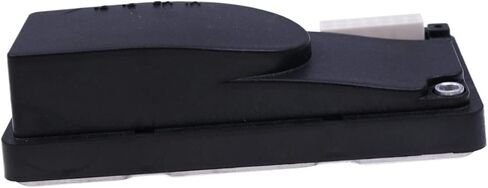

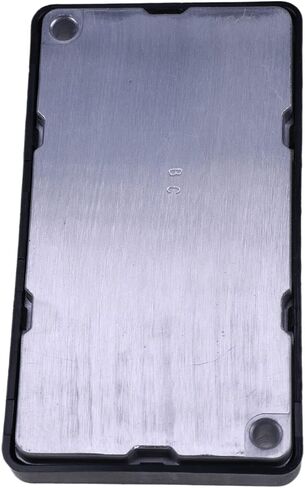

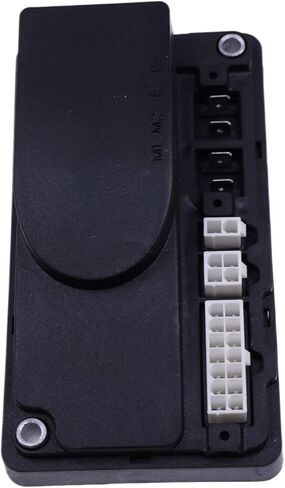

1212P-2501 Motor Controller Brush Permanent Magnetism DC 24V 90A Compatible with Curtis Programmable Integrated Vehicle Control Electric Pallet Truck Forklift Forward Reverse Safe Brake Alarm

KWD 27.500

Brand
WQSING
Weight
290 g
1 +

Special Features

  • Model: 1212P-2501
  • Voltage (Volts): 24V
  • Current Rating (amps): 90A
  • The 1212P-2501 is designed for use in low-power DME applications such as micro-scooters, mini-scooters, foldable scooters, and low-end personal mobility vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its programmable options also allow it to be used on any low-power permanent magnet motor application.
  • The 1212P-2501 controller is fully programmable, via the 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, the use of the programmer offers diagnostic and test capability.

Description

The optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed

Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals

Charger inhibit input prevents driving while charger is attached

Key Off Decel function ensures a smooth “brake to stop” when the key is turned off while driving or when a fault occurs that requires the vehicle to stop

Anti-Rollback/Roll-forward function provides smooth and safe vehicle control on hills and ramps

Boost current gives a brief boost of current greatly improving transient loads such as starting on a hill, crossing thresholds, etc.
