Specifications:

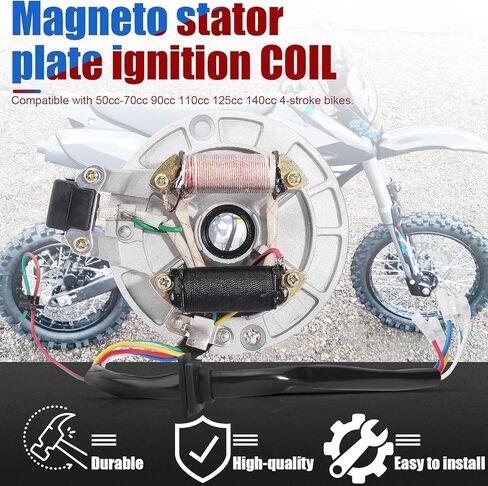

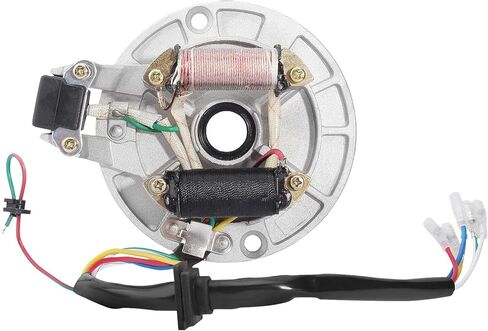

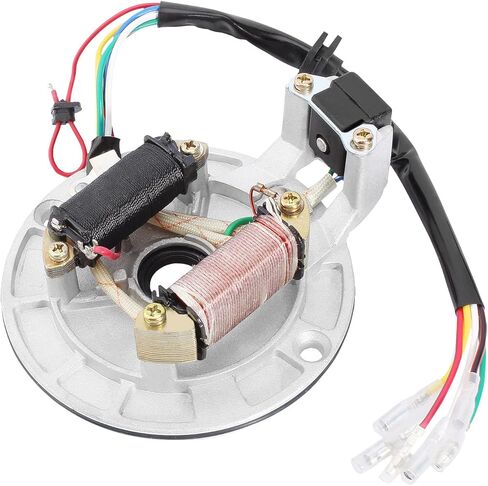

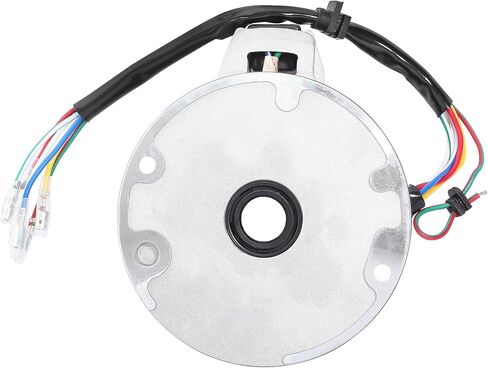

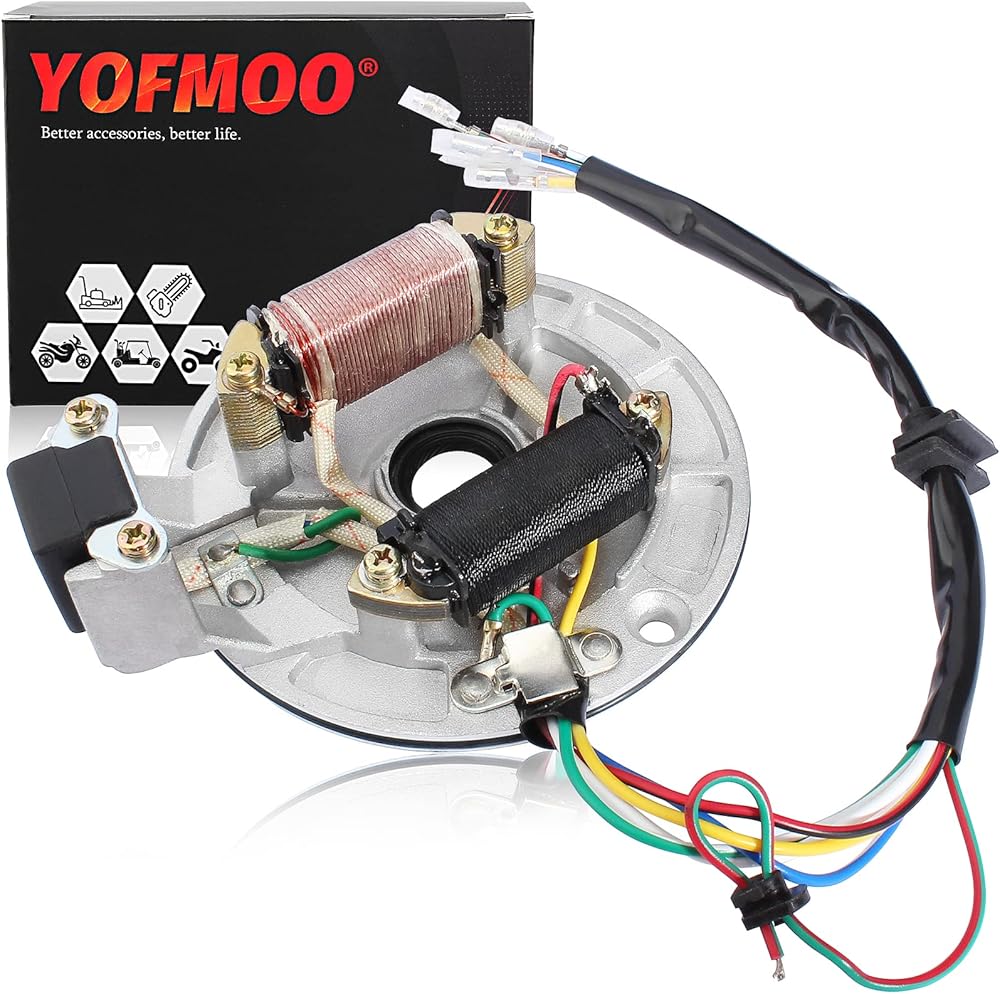

New high-quality magneto stator plate ignition coil.
2 coils, 6 wires (1 removable free wire).
Full copper coil, aluminum plate disc, easy to install.
Manufactured to exact measurements to meet or exceed OEM specification.
Package included: 1 x magneto stator plate ignition coil.

Compatible with:
Fits 50cc-70cc 90cc 110cc 125cc 140cc 4-stroke bike.
For most motorcycle, atv, quad, scooter, go kart, moped, chopper, buggy, pickup, pit bike, dirt bike, kick bike, racing bike, mini bike and other bike.
For CRF50 CRF70 XR50 XR70 Z50R(1988-1999) ZB50.
Compatible with Kazuma Meerkat 50 Mini Falcon 90, Redcat MPX50 MPX70 MPX90, Lifan LF110GY-D LF125T-6.
Fits most Chinese import Pit / Dirt bike, almost all of the bike brands from China, such as TaoTao, Kazuma, Sunl, Buyang, Baja, Coolsport, Jonway, Roketa, Kymco, Panterra, Znen, NST, BMX, SDG, SSR etc.

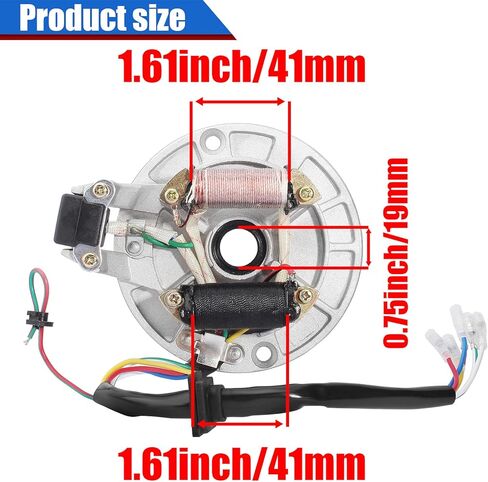

Size:
Wiring length: 11.81inch / 30cm.

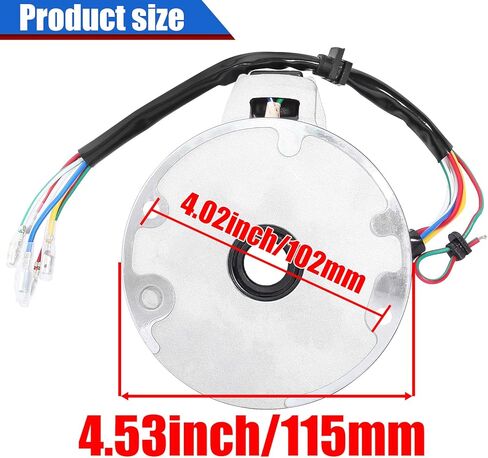

Outer diameter: 4.53inch / 11.5cm.
Outer diameter of central hole: 0.98inch / 2.5cm.
Inner diameter of central hole: 0.69inch / 1.75cm.

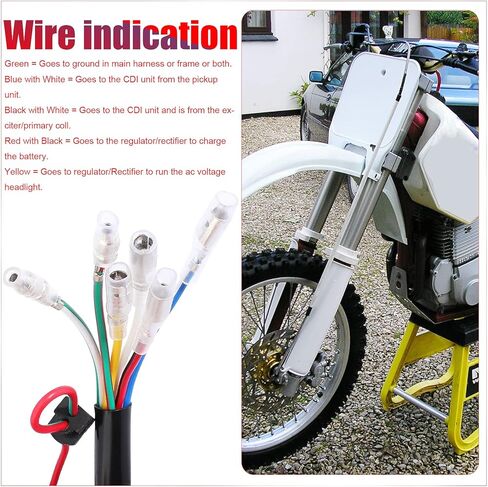

Wire indication:
Green = Goes to ground in main harness or frame or both.
Blue with White = Goes to the CDI unit from the pickup unit.
Black with White = Goes to the CDI unit and is from the exciter/primary coll.
Red with Black = Goes to the regulator/rectifier to charge the battery.
Yellow = Goes to regulator/Rectifier to run the ac voltage headlight.
