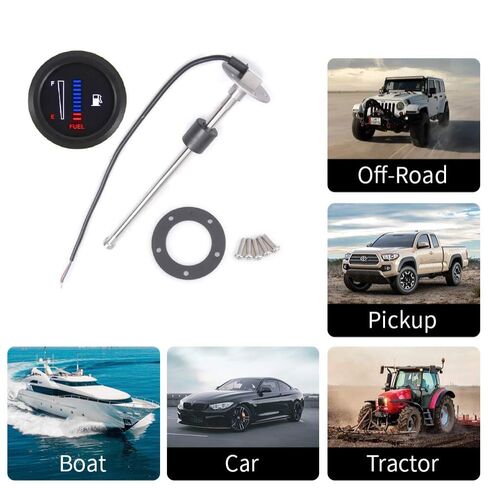

ZHSYMX Reed Switch Fuel Sending Unit and Fuel Gauge Kit is Designed For the One Who Are looking for A Simple Solution To Measure The Amount of Fuel/Gasoline Level In The Tank.
Ordering a Set Having Both Gauge And Sender To Avoid Compatibility Issue.

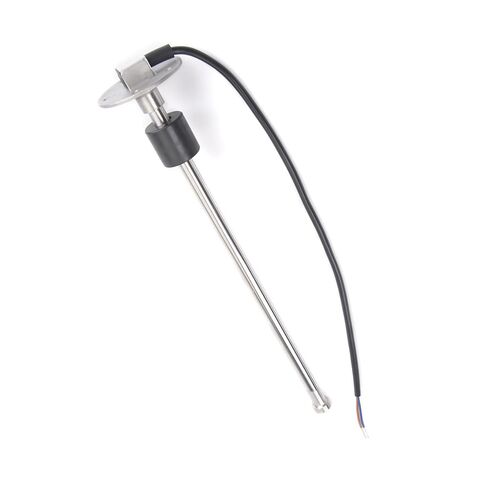

Liquid Level Sender with Signal output 0-190 ohms.
Precision Range: 10-21mm
Material:Body: SUS 316 Stainless Steel.
Cable: PVC.
Float: NBR.
Mounting Methods: Standard SAE 5 hole pattern.
Protection Rank: IP65.
Output Signal: 0-190ohms
Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C).

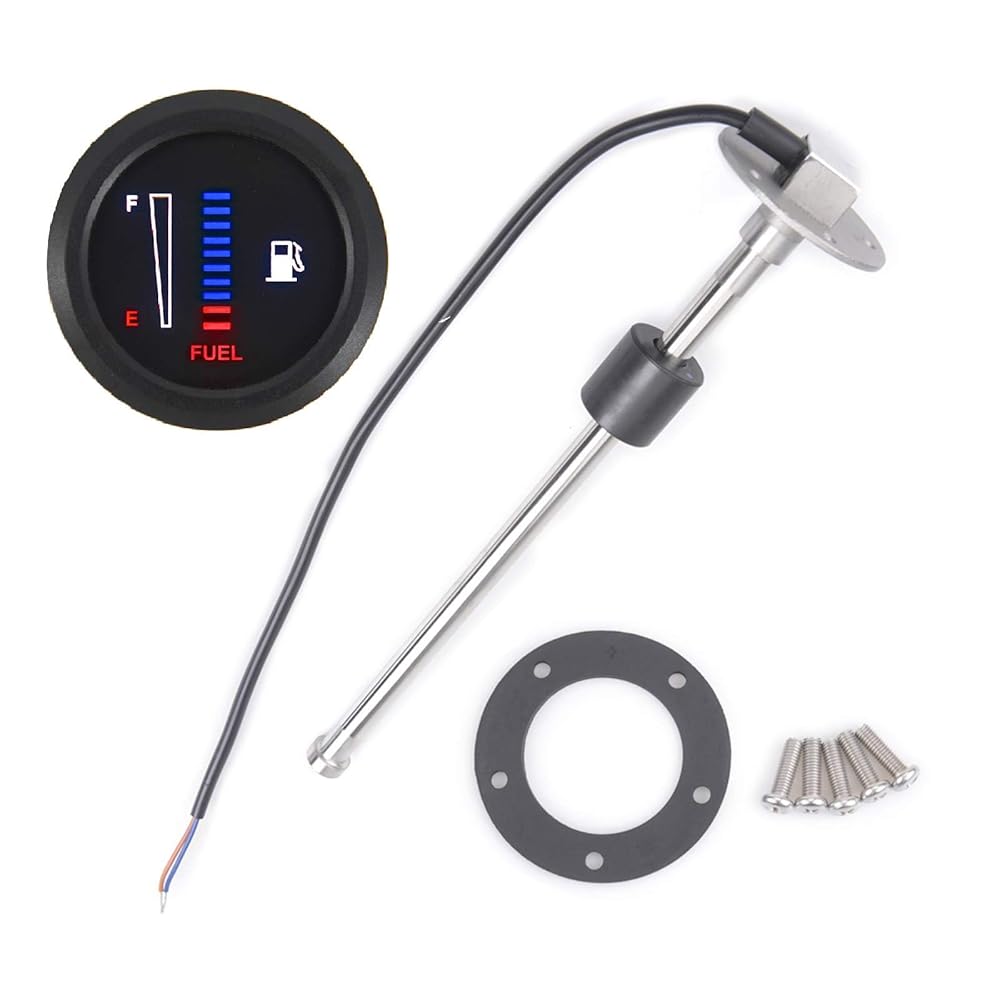

Package Information:
1x ZHSYMX Fuel Sender
1x ZHXYMX Fuel Gauge
1 x Gasket
5 x M5*0.8 Length(16mm) Screws

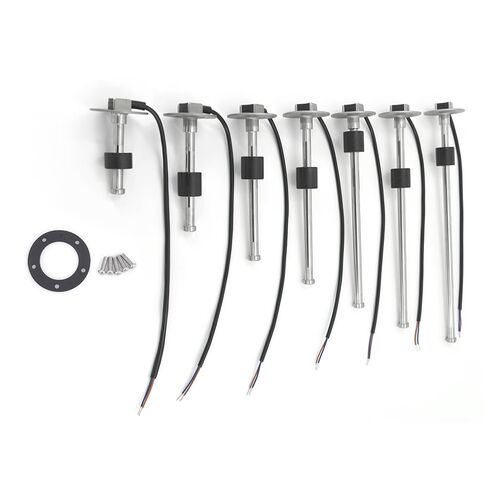

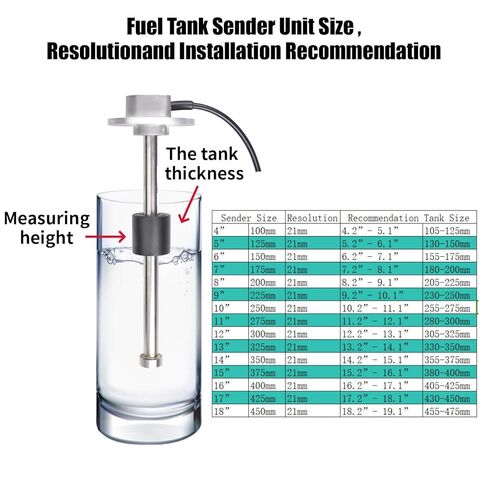

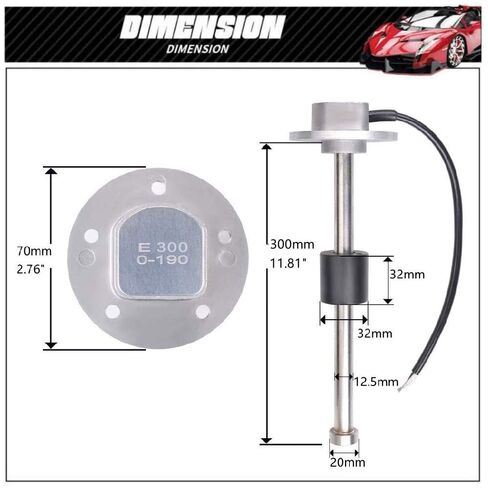

【Really Important to Know BEFORE You Order】To Allow The Sender not Hit The Bottom of The Tank, The Length of Sender Should be 1" less Than The Depth of The Tank If Tank Is Plastic, And 0.5" Less Than The Depth of The Tank If Tank is Metal . The Diameter of Float is 1.38"(35mm). If You Have to Drill The Hole, Diameter 1.50"(38mm) Hole Would be Perfect.
