-14%

2PCS Bullet Piercing Valve Kit#AP4502525,BPV31D,GPV14,GPV31,GPV38,GPV56,Anti-rust Piercing Valve for Refrigerator Fit for 1/4 Inch,5/16 Inch and 3/8 Inch Outer Diameter Pipes

KWD 3
KWD 3.500
Brand
OFBAND
Weight
28 g
– 1 +

Special Features

  • Replacement Parts Number: AP4502525, BPV31D, GPV14, GPV31, GPV38, GPV56, MPV31, TJ90BPV31. Compatible with 3 different sizes of outer diameter pipe: 1/4 inch, 5/16 inch and 3/8 inch. Fit for inflation, pressure, vacuum inspection and other applications
  • Inside the Package: The kit includes 2 piercing valves (dimensions: 1.71 x 1.48 x 0.80 inch), 4 adapters, and 2 hex wrenches. You don't need to purchase a separate installation tool, which can fulfill your replacement and maintenance requirements
  • Good Sealing: The piercing valve has a built-in O-ring sealing force of 180 inch lbs, avoids leakage between the valve body and the pipe, pressure test of 250℉, torque test of 500 lbs, to maintain good sealing at different temperatures and pressures
  • Use Method: Before installation, select the appropriate adapter, then put the two halves of the piercing valve on the pipe, take out the hex wrench, and tighten the three screws in turn. If you need to puncture the pipe, tighten the valve stem clockwise

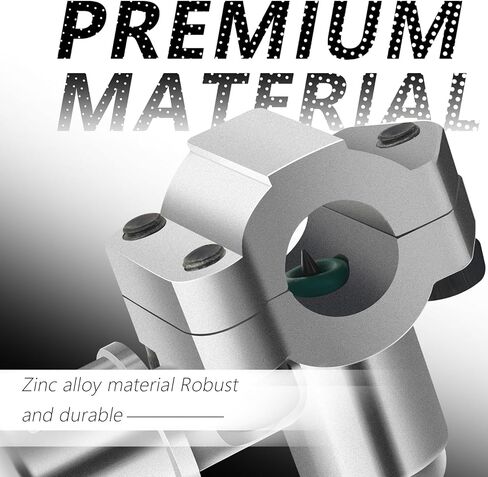

  • Heavy-duty Structure: This piercing valve for refrigerator is made of zinc alloy material with high strength and good wear resistance, that is, it is not easy to rust and damage in high temperature and pressure environment, and can be used for a long time

Description

PIERCING VALVE FOR REFRIGERATOR KIT: THE CLEVER COMBINATION OF PROFESSIONAL AND PRACTICAL

Product Attributes
Colors: Silver

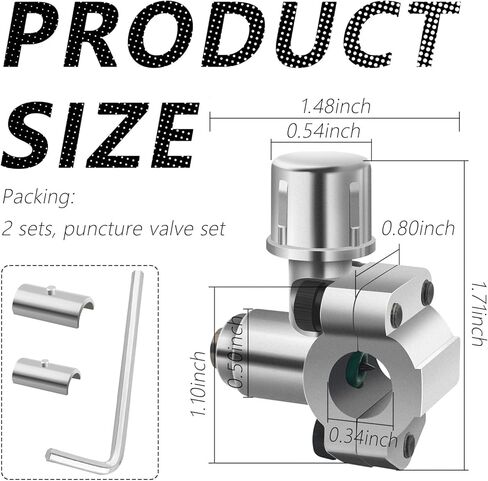

Sizes: 1.71×1.48×0.80 inch
Weight: 4.58 oz
Material: Zinc Alloy

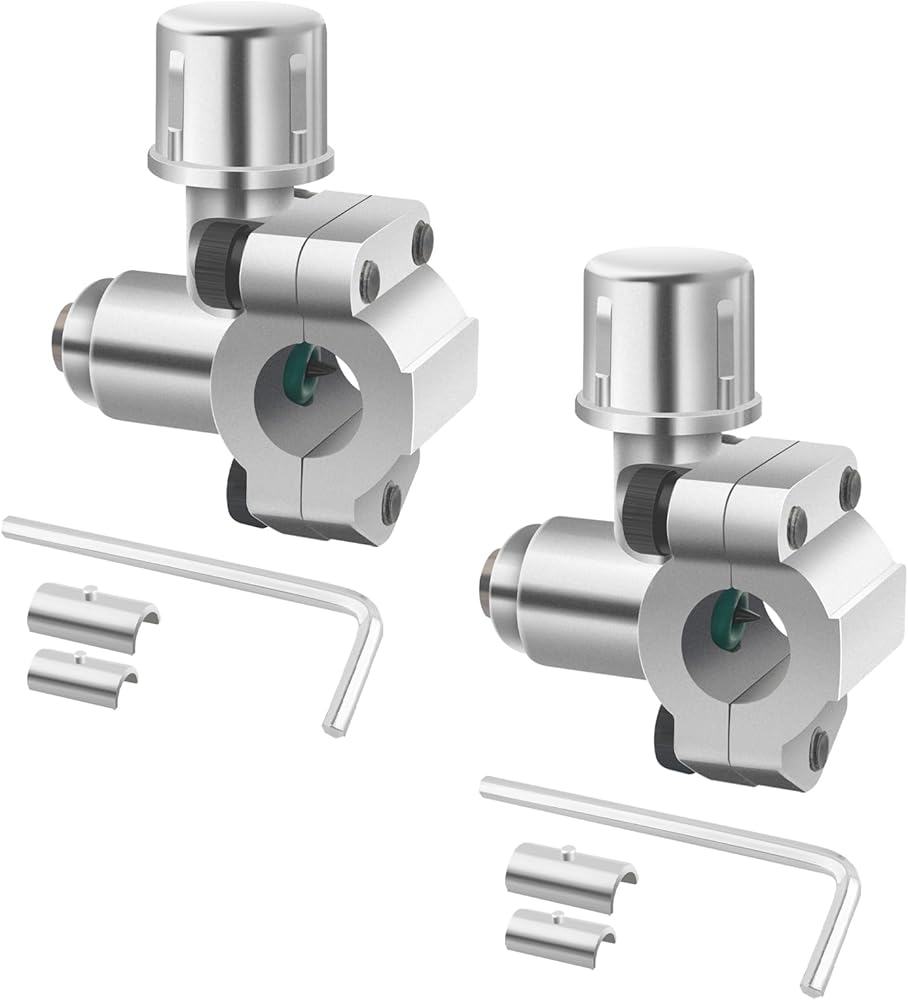

Packaging: 2 x Bullet Piercing Valves, 2 x Hex Wrenches, 4 x Adapter

Product Feature & Functions

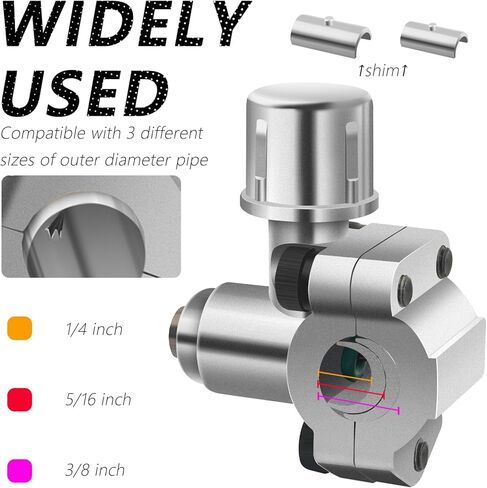

1. Compatible with 1/4 inch, 5/16 inch and 3/8 inch outer diameter pipe, please check the pipe size before ordering
2. Replace part #AP4502525, BPV31D, GPV14, GPV31, GPV38, GPV56, MPV31, TJ90BPV31 and more
3. This puncture valve is made of zinc alloy, which can remain strong and reliable in long-term use. It can withstand frequent operation and use, without deformation, rupture and other problems
4. The design of the puncture valve is closely matched with the gasket, which can form a good seal after installation. Whether in static or dynamic state, it can effectively avoid pipeline overflow

Installation procedure
Preparatory work
1. Before installation, clean the installation pipe to avoid debris and stains from entering the pipe during puncture
2. Check whether the O-ring is in place
3. Check whether the dowel in the piercing valve rises to the top of the valve, if it has, please insert the hex wrench provided in our kit into the valve stem and turn counterclockwise until the dowel is no longer visible in the piercing

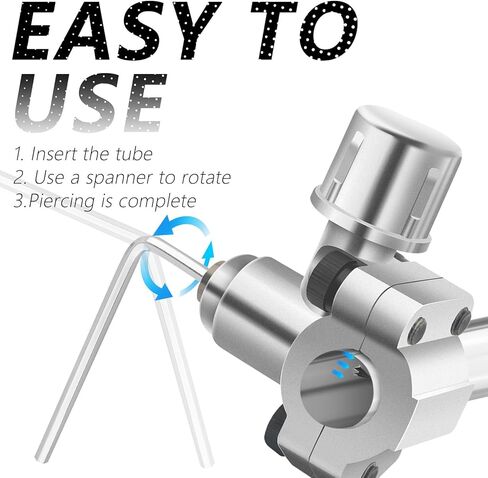

Installation process
1. Select the appropriate adapter to place the two halves of the piercing valve on the pipe
2. Evenly tighten the three screws using a hex wrench
3. If you need to puncture the pipe, insert the valve stem using a hex wrench and rotate clockwise

Warm Reminder
1. This product is not suitable for 410a refrigerant, please check carefully before purchase
2. For your safety, we recommend that you wear safety glasses and protective gloves before piercing to make the operation more secure
