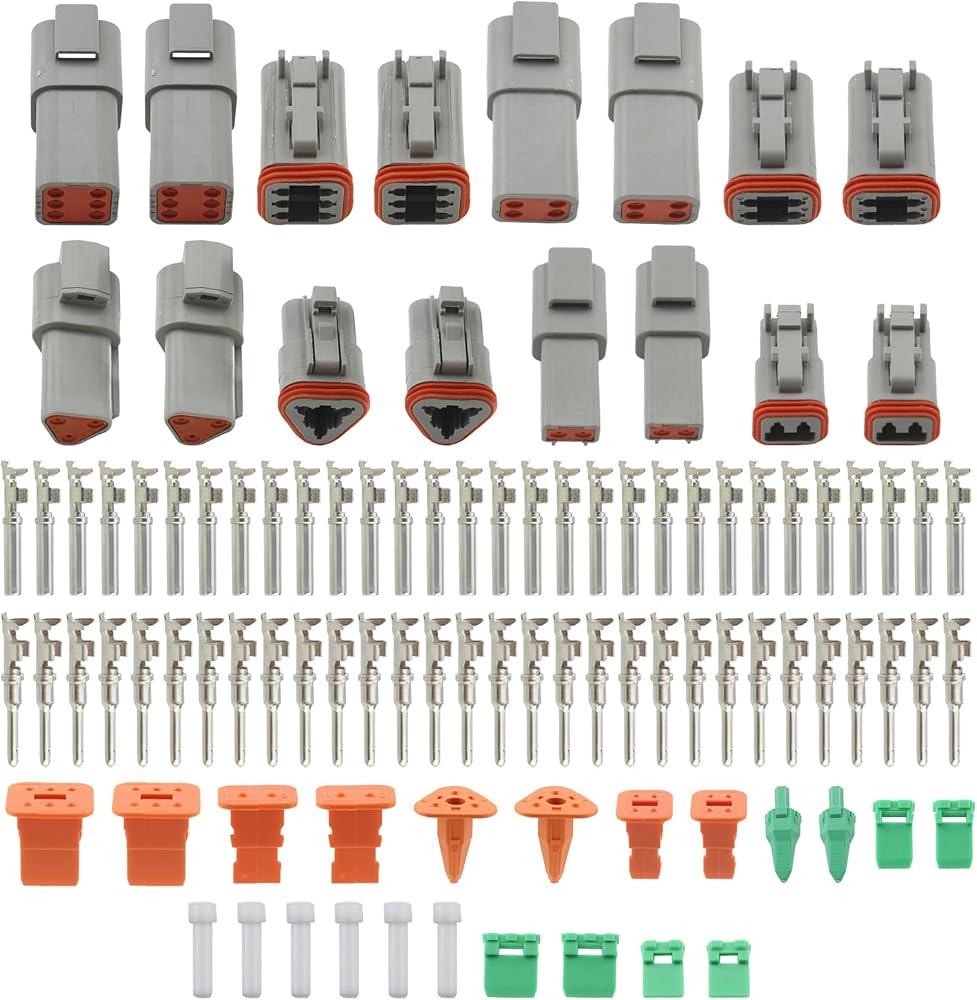

Package includes:
2 Sets 2 3 4 6-pin connectors(each have a male plug and a female plug),
30 pairs stamped terminals(12 pcs pins and 12 pcs sockets),
6 pcs seal plugs.

▶Size 16 Contacts:
Contact Size: 16#
Material: Tin Bronze/Nickel plate
Current Rating: 13-Amps
Wire Range: 20-14AWG
Mating Pin Diameter : 1.59 mm [ .063 in ]
Terminal Transmits : 0 – 24 A (Low Power)
Crimp Type : Indent(4-indent crimper)

▶ Connector Housings:
IP68 rating, Moisture Resistance.
Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.

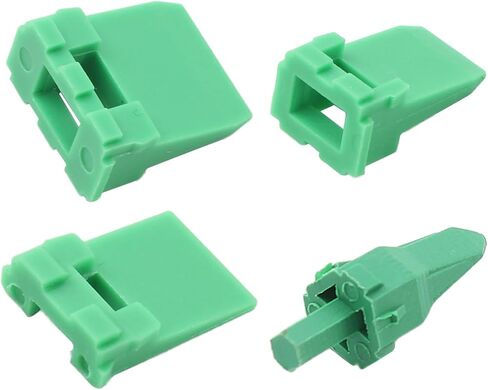

▶Wedgelock:
The wedgelocks help confirm proper contact alignment within each connector.
Secondary wedgelocks are assembled at the mating interface and press into place.

▶Sealing Plugs:
To prevent open cavities from entering contaminant connectors and to maintain the integrity of the seal, any unused cavities must be filled with appropriately sized sealing plugs.
