Aluminum Oil Pan Kit 302-1 Replacement for 1955-1987 Muscle Car Classic Car Trucks 4.8L 5.3L 5.7L 6.0L 6.2L LS1 LS2 LS3 LS6 Engines LS Swap Retrofit Oil Pan

KWD 45
Brand
SEBLAFF
Weight
7.3 kg
– 1 +

Special Features

  • Replacement for 1955-1987 Muscle Car Classic Car Trucks 4.8L 5.3L 5.7L 6.0L 6.2L LS1 LS2 LS3 LS6
  • Made by quality material, not easy to damage with long service life and stable performance
  • Oil pan kit have traditional quality cast aluminum appearance with clean exterior styling
  • Collect and store the lubricating oil flowing back from the surface of the engine, emit part of the heat
  • Engine location may need to be adjusted (up/down or fore/aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type

Description

Aluminum LS Swap Retrofit Oil Pan Kit 302-1

Replacement for
1955-1987 Muscle Car Classic Car Trucks
LS Gen III and GEN IV V8 LS1 LS2 LS3 LS6 LSX 4.8L 5.3L 5.7L 6.0L 6.2L

Please Note
For G-Body applications, use part number 302-2 as the 302-1 swap oil pan is not compatible with a G-Body. Does not work with G-Body applications
Requires use of LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
Please kindly check the part number before purchasing

Specifications
Part Number: 302-1
Sump Style: Wet
Sump Location: Rear

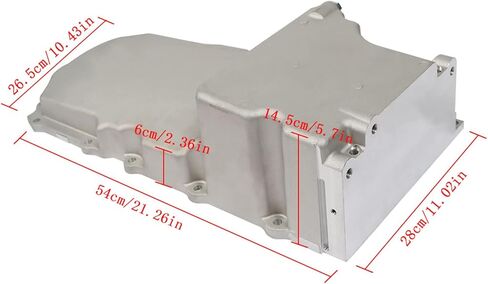

Oil Pan Depth: 5.89 inch
Maximum Stroke: 4.25 inch
Oil Pan Capacity: 5.5 quarts
Total Oil Capacity: 6.0 quarts with stock filter
Surface Finish: Polished
Material: Aluminum

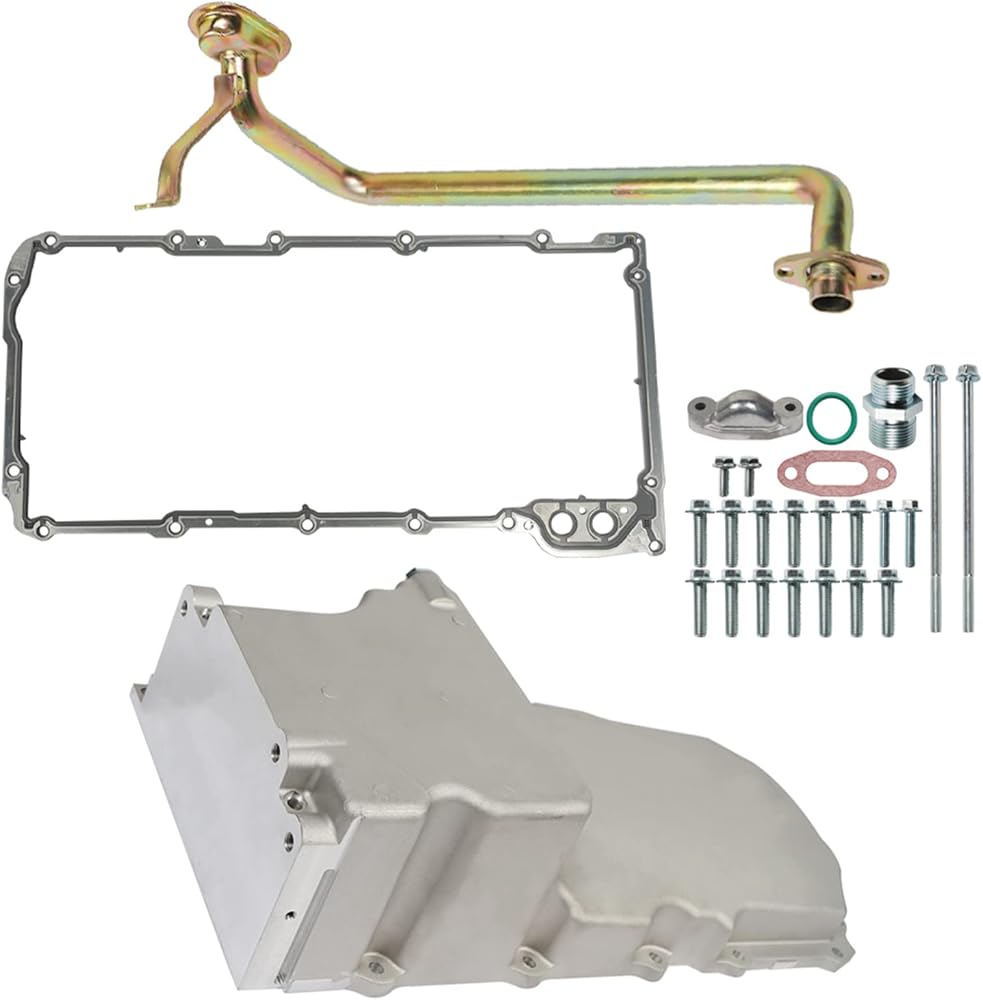

Pacakge Includes
1 x Oil Pan
1 x Oil Pan Gasket
1 x Sump Baffle

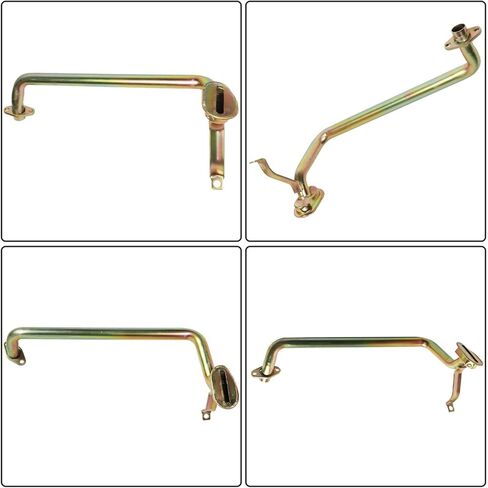

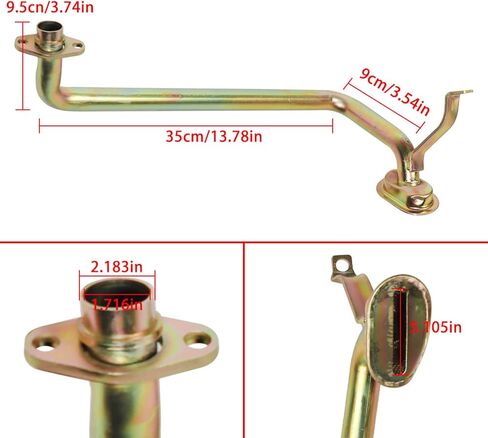

1 x Pick-Up Tube
1 x Sump Plug
1 x Oil Filter Stud
1 x Oil Passage Cover
As Picture
