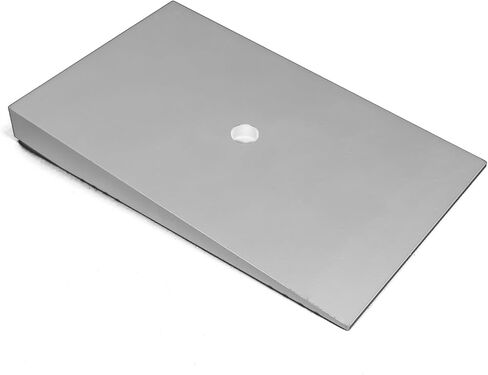

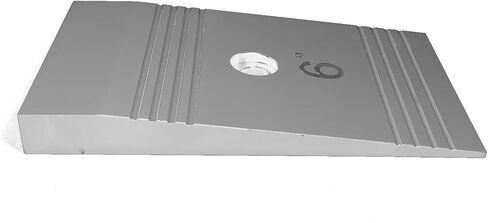

Universal Pinion Angle Correction Shims

Purpose
These shims are designed to adjust the drivetrain angle of your vehicle, reducing vibrations caused by suspension modifications or lift kits, improving driving comfort, and extending component lifespan.

Installation Instructions
1. Preparation: Safely lift the vehicle to a working height and ensure the workspace is clean.
2. Disassembly: Loosen the bolts connecting the leaf spring to the axle.
3. Shim Placement: Insert the shims between the leaf spring and the axle, with the thinner edge facing the front of the vehicle.
4. Reassembly: Re-tighten the bolts securely to ensure all components are properly aligned.
5. Final Check: Verify that the drivetrain angle has been corrected and vibrations are minimized.

Notes
· Ensure proper alignment of the shims and leaf springs during installation.
· If the factory center pin is insufficient for secure installation, consider purchasing extended center pins.

Package Contents

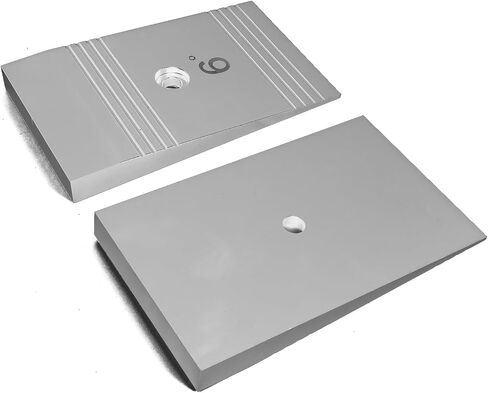

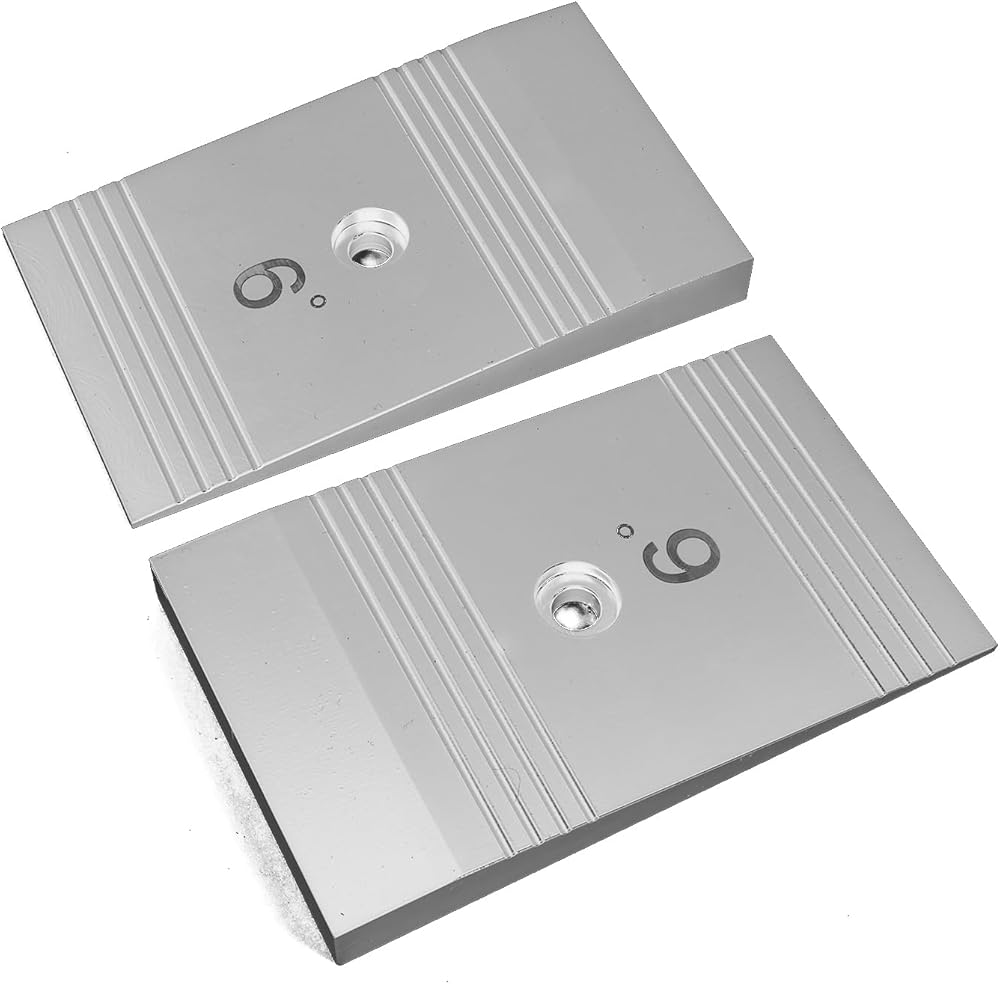

2 x Correction Shims
