[Installation]- Easy to follow wiring diagram simplify wiring your electric fans. RED to 12VDC positive battery terminal, COFFEE to Fan Positive, BLACK to Ignition, GREY to Sending Unit per wiring diagram. You can direct replace it for10, 12, 14, and 16 inch cooling fans

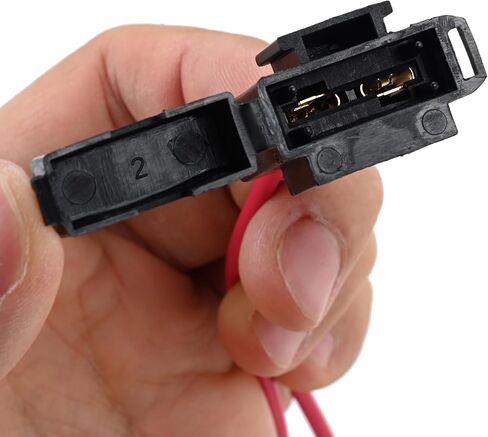

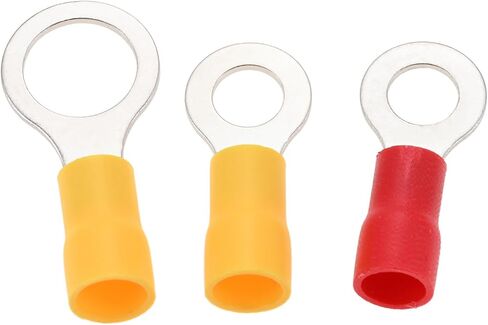

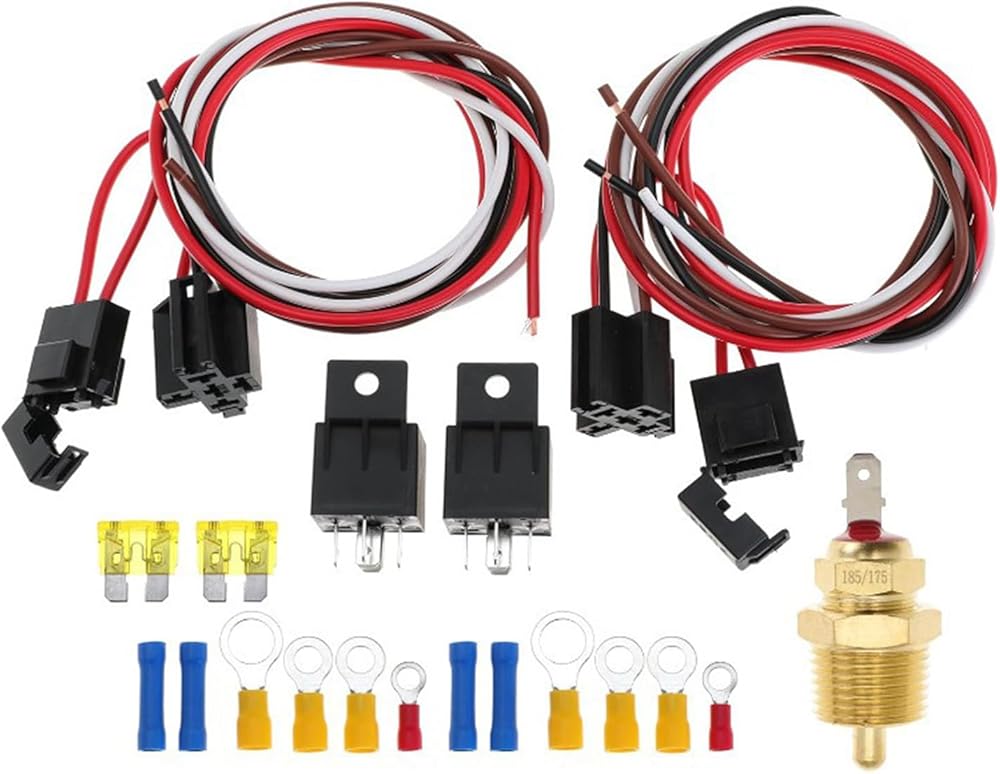

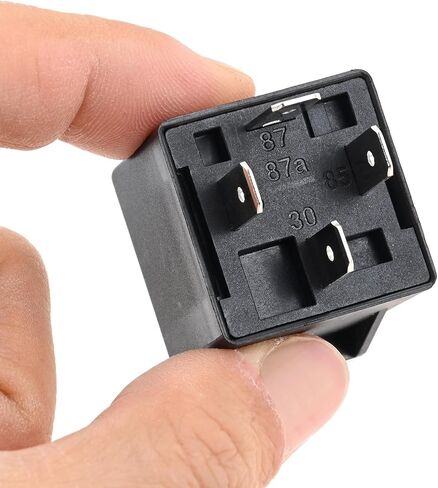

[Package Include]- 2 Pcs x 40A relay, 2 Pcs x wiring harness, 1 Pc x 3/8" thermostat switch, 1 Pc x 3/8" to 1/2" adapter, 2 Pcs x 20 amp fuses, 8 Pcs x ring terminals, 4 Pcs x wire connector
[warm note ]- The temperature switch is OE style. It can mount in the cylinder head of the engine or any water jacket if needed. The thermostat must be grounded through the threads to the engine to work, and the engine must be grounded

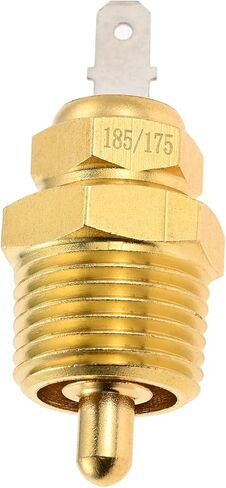

[Temperature Information]- The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included. Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. Special attention is paid to that you need to run a 160 degrees thermostat when running this kit with this temp switch

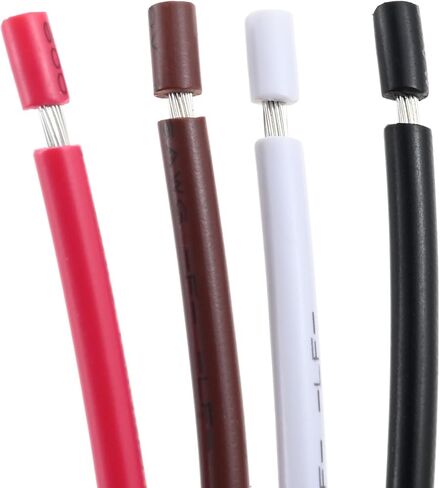

[Amps Information]- The 14AWG wires (15 amps) are not bigger enough for high amps draw. You must crimp or solder bigger wires,If you intend to mount high-profile fans

وصف

Dual Electric Fan Wiring Kit Dual Electric Fan Relay Kit with Thermostat Radiator Fan Temperature Sensor Switch 185 On 175 Off
