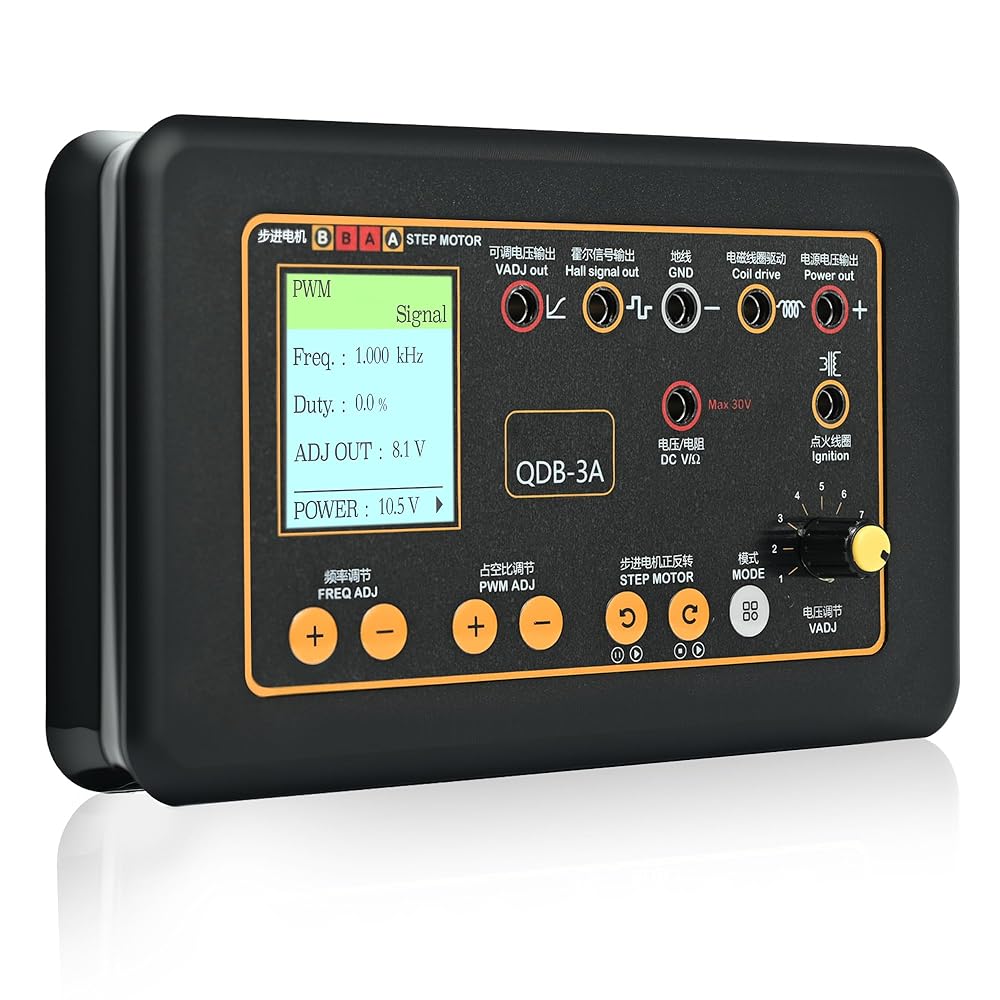

QDB-3A Ignition Coil Tester, Drive Automobile Ignition Coil Tester Tool, Injector Solenoid Valve Tester, for Idling Stepper Motor Automobile Fault Detector, 1.8” Color Display

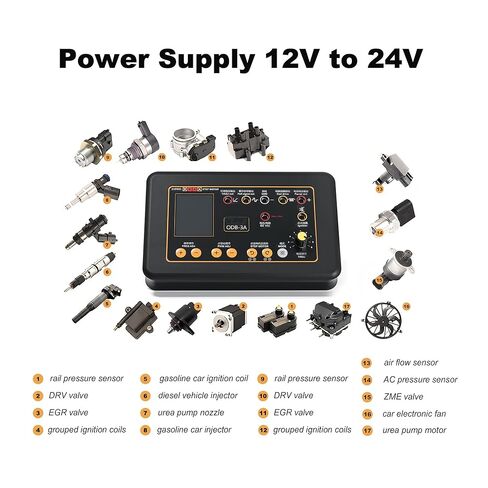

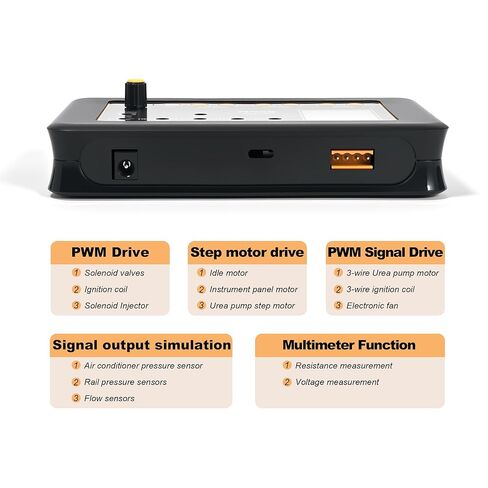

Test Capabilities: Ignition coil tester can directly test 12V-24V gasoline/natural gas engine ignition coils, gasoline/diesel vehicle injectors (excluding piezo injectors), duty cycle-controlled motors, solenoid valves, low-power stepper motors, etc
Duty Cycle Simulation: Ignition coil tester tool can accurately simulate duty cycle sensor signals, providing precise testing for various automotive components

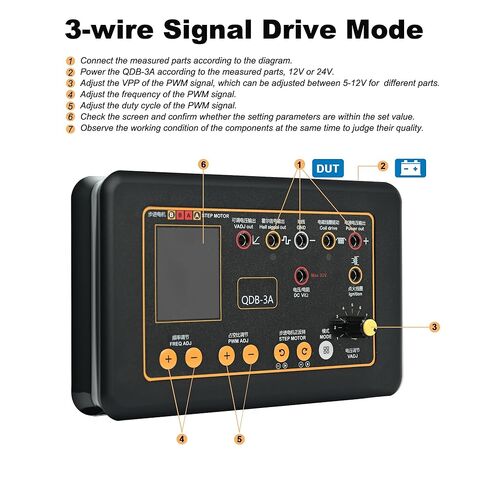

Adjustable Hall Signal: Ignition coil tester features adjustable output frequency, amplitude and duty cycle ratio to simulate various duty cycle sensors, including air conditioning pressure sensors and air flow meters

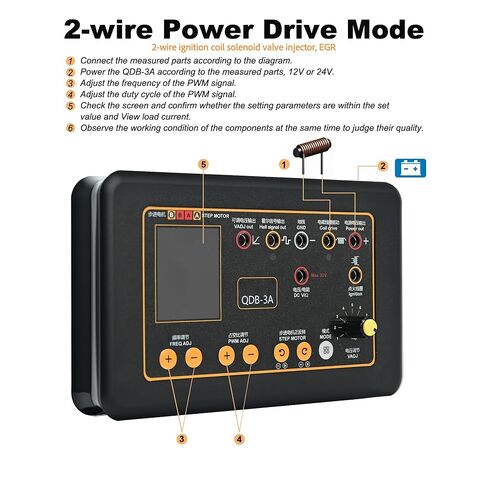

Wide Range: Ignition coil tester offers electromagnetic coil driving current adjustable 0-3.5A, output frequency 1Hz-100kHz, and duty cycle adjustment 1%-100% to meet diverse testing needs

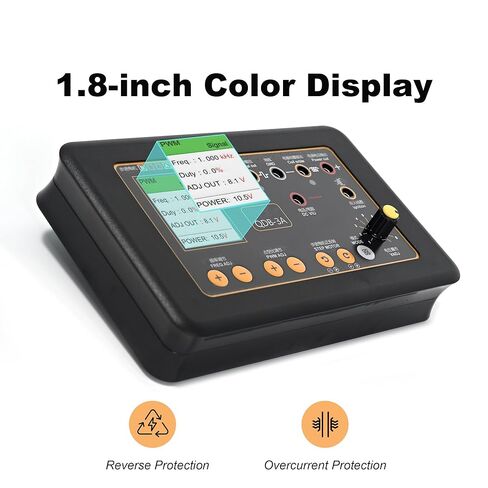

Safety Protections: Built-in reverse connection and over-current protections ensure safe operation during testing, making the ignition coil tester tool compatible with a wide variety of vehicles
User-Friendly: All parameters of the ignition coil tester tool are easily adjustable, allowing for simple operation, perfect for automotive professionals and DIY enthusiasts alike
SPECIFICATION
Power input: 9-26V, 100W
Power output: Max 2.5A
VADJ output: 1.25-14.5V, max 1.5A
PWM drive: 1-100KHz, 0-100% duty, max 3A
PWM signal: 1-100KHz, 0-100% duty, 1.25-14.5V VPP

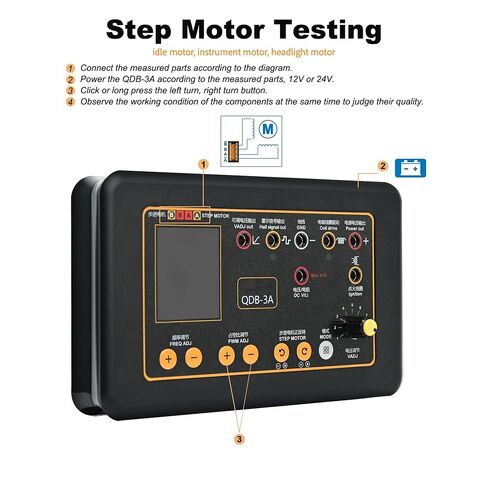

Step motor: Max 1.5A
Operating temperature: 0-55℃
Dimensions: 6.18x3.82x1.18 in

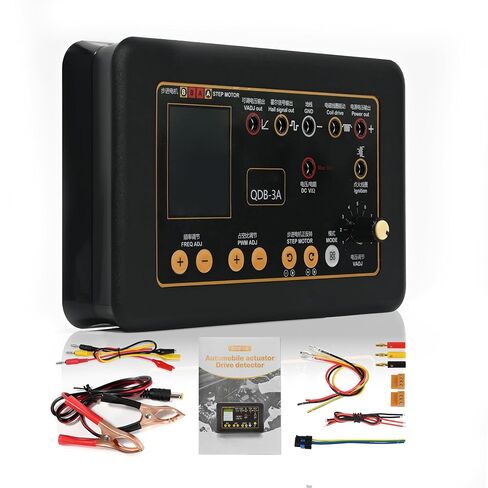

PACKAGE
1 x Ignition Coil Tester
1 x Power Cable
3 x Test Connection Cables
3 x Single Plugs
1 x Idle Speed Stepper Motor Plug
1 x Stepper Motor Welding Cable
