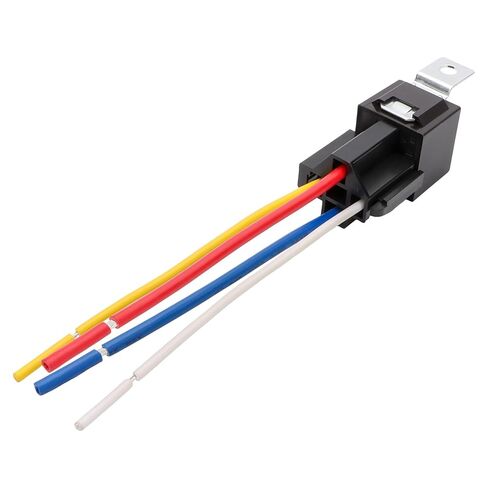

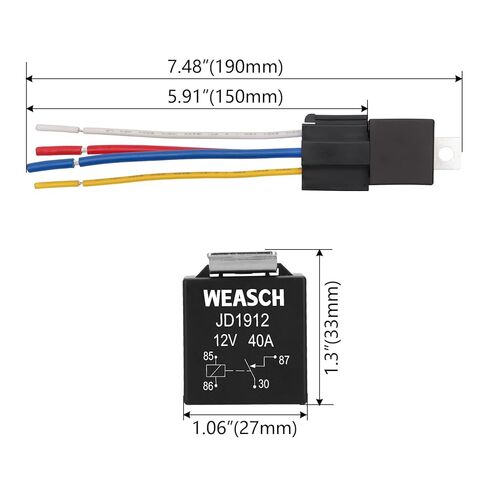

JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait JD1912 Car Relay Harness, 12V 40A, 4 Pin SPST, Iron Backrest with 12AWG Harness Sockets, Automotive Switches and Starters, for Automotive Truck Van Motorcycle Boat (2) in Kuwait

4

KWD 3.500
Brand
Weasch
Item Package Quantity4
– 1 +

Special Features

  • Product Name: Car Relay; Model: JD1912
  • Rated Voltage: 12VDC; Max.Operating Current: 40A
  • Contact: SPST; Number of Pins: 4; Contact Material: Ag Alloy; Insulation Resistance: ≤ 100MΩ

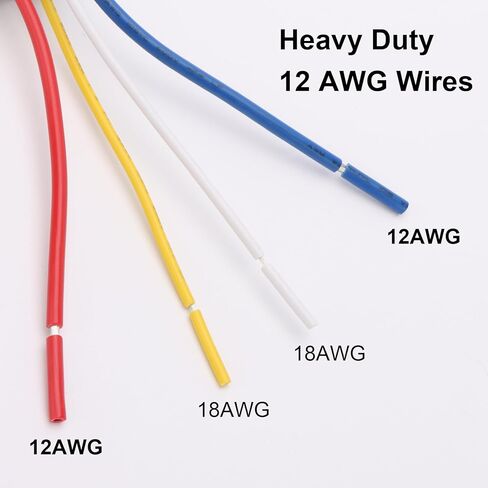

  • The wire on the high-power side of the relay is 12 AWG Tinned copper wire Coil leads use 18 AWG Tinned copper wire, which is safer when used at high currents

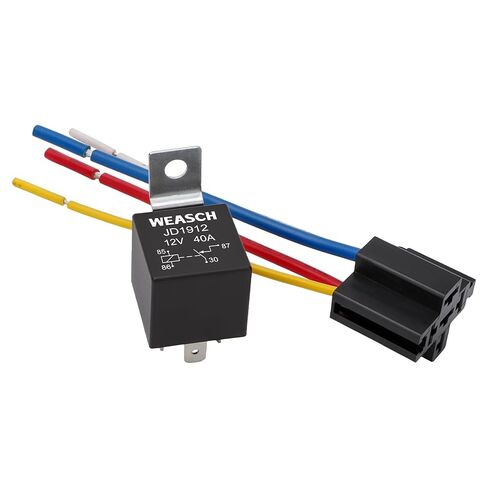

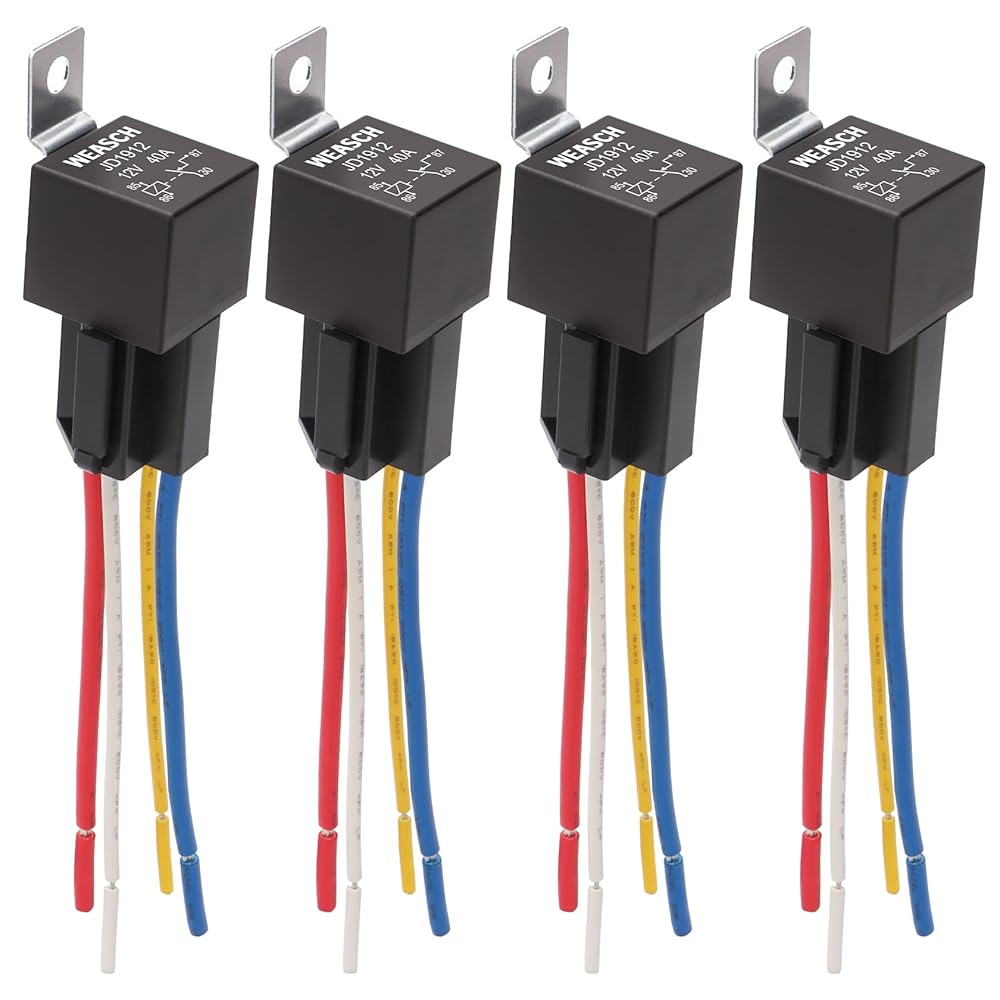

  • Package Content: 2 x JD1912 Car Relay and Socket

Description

Contact Ratings

Contact Form: SPST
Material: AgSn02
Max.Operating Current: 40A
Coil Ratings
Rated Voltage: 12VDC
Nominal Operating Power: 1.6W
Specification
Insulation Resistance: ≤ 100MΩ
Dielectric Strength(Between coil and Contact): 500VAC
Ambient Temperature: -40℃ ~125℃
Operate/Release Time: 10ms/10ms
(min)Mechanical Life: 1000000
(min)Electrical Life: 100000
