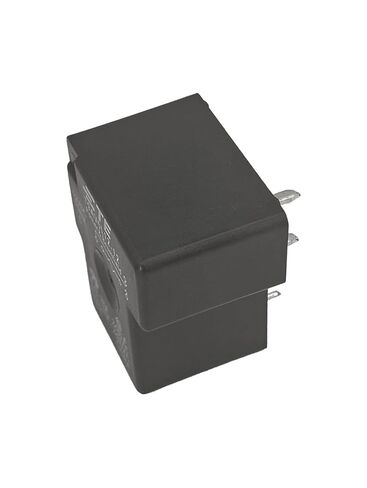

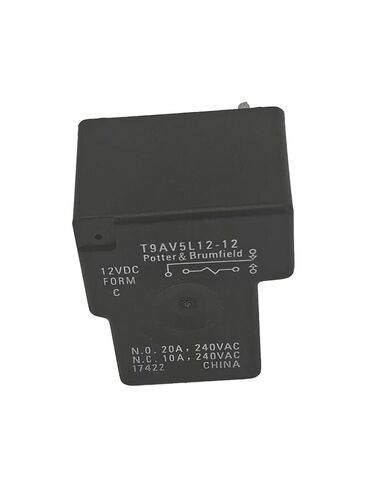

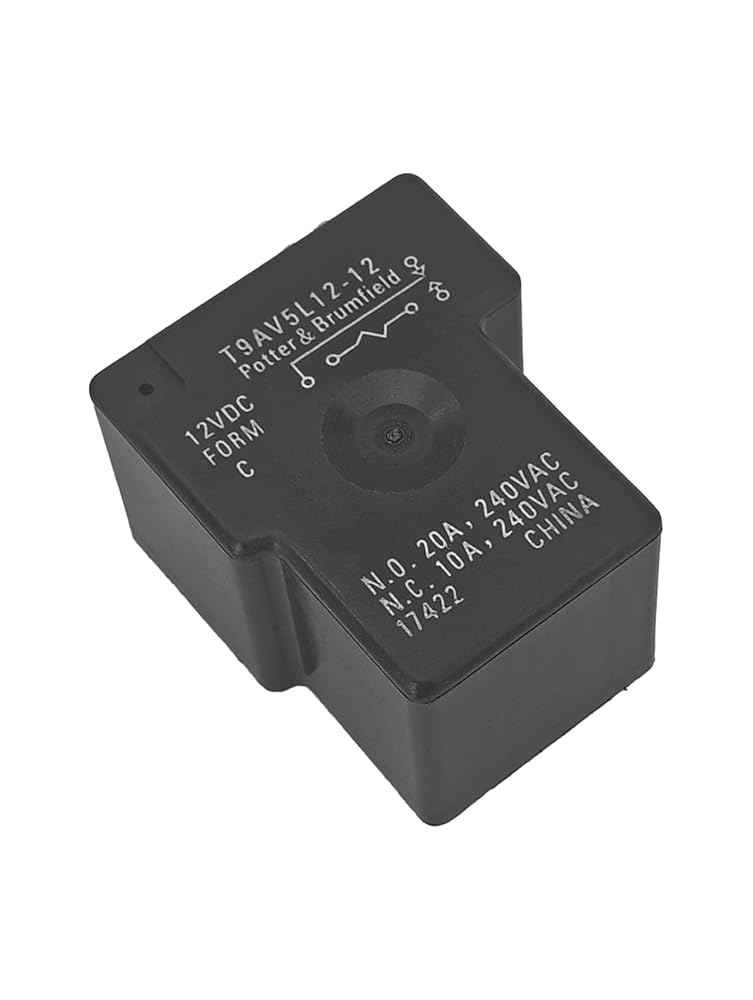

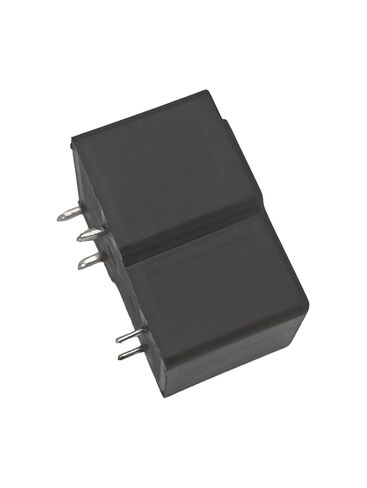

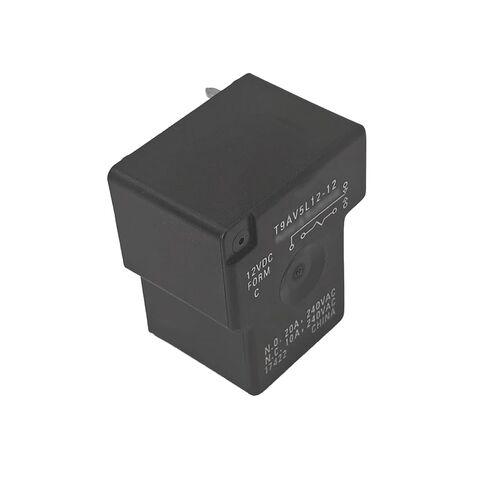

Name: T9AV5L12-12 (Set of 2) 12VDC NO-20A NC-10A 5Pins Relay
Brand: oxinyra
Availability: InStock

Special Features

Power Relay T9AV5L12-12: The T9AV5L12-12 power relay is designed for various applications and offers reliable performance. It is a 5-pin relay capable of handling a maximum current of 20A at 12VDC.
Versatile Mounting Options: Designed for easy integration, this relay features a PCB mount, ensuring hassle-free installation and compatibility with various electronic systems.
1 Form C (SPDT-NO, NC) Contact Form: This relay has a 1 Form C contact form, also known as Single Pole Double Throw (SPDT), with normally open (NO) and normally closed (NC) positions. It provides versatility for various automotive electrical systems.
12VDC, 20A Rating: This power relay operates at a voltage of 12VDC and has a maximum current rating of 20A, this relay provides sufficient power to start your vehicle's engine without any issues.

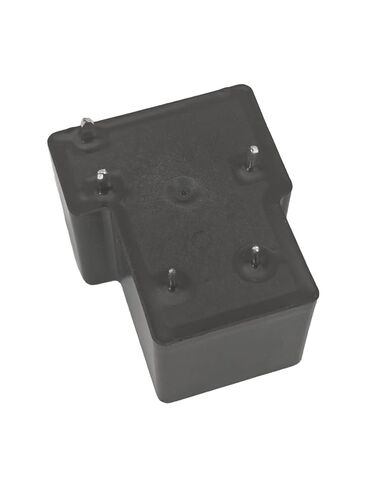

5-Pin Configuration: The T9AV5L12-12 12VDC power relay features a 5-pin configuration, allowing for secure and convenient electrical connections. The pins are labeled for easy installation and ensure reliable signal transmission.

Description

Connector Type: Quick Connect
Contact Material: Silver Alloy
Contact Type: Normally Closed
Coil Voltage: 12 VDC
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Current Rating: 20 A
Contact Termination: Solder Pin
Mounting Style: PCB Mount
Switching Voltage: 277 VAC
Coil Type: Non-Latching
Coil Resistance: 155 Ohms
Current Rating: 20 Amps
Mounting Type: Plug In Mount
Power Consumption: 900 mW
Product Type: General Purpose relay
