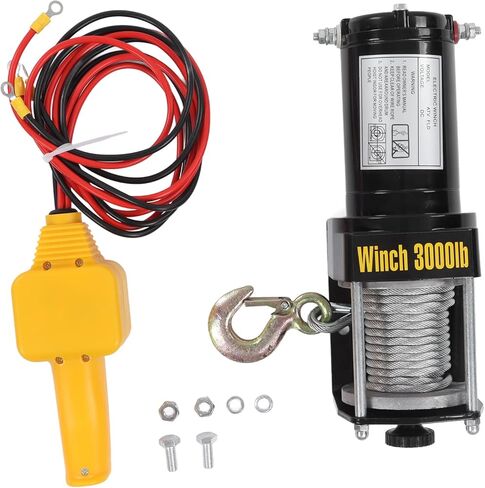

1. [ AND SECURE USAGE] The electric winch kit includes an automatic brake that ensures and controlled It provides braking action, preventing any potential accidents or load slippage.
2. [ADDITIONAL CONTROLLER] The winch kit comes with a convenient controller, allowing for easy and remote It enhances convenience and flexibility, enabling users to control the winch from a distance.
3. [EASY INSTALLATION] With included screws, nuts, and washers, the winch kit can be effortlessly installed. It saves time and effort, allowing users to quickly set up the winch and start using it.
4. [VERSATILE APPLICATIONS] This electric winch is designed for use with ATVs and UTVs, making it suitable for various applications. It is ideal for off-road , recovery operations, and other towing or pulling needs.
5. MATERIALS] Constructed with alloy steel, stainless steel, and copper, the winch is built to withstand conditions. It ensures durability and reliabili

Spec:

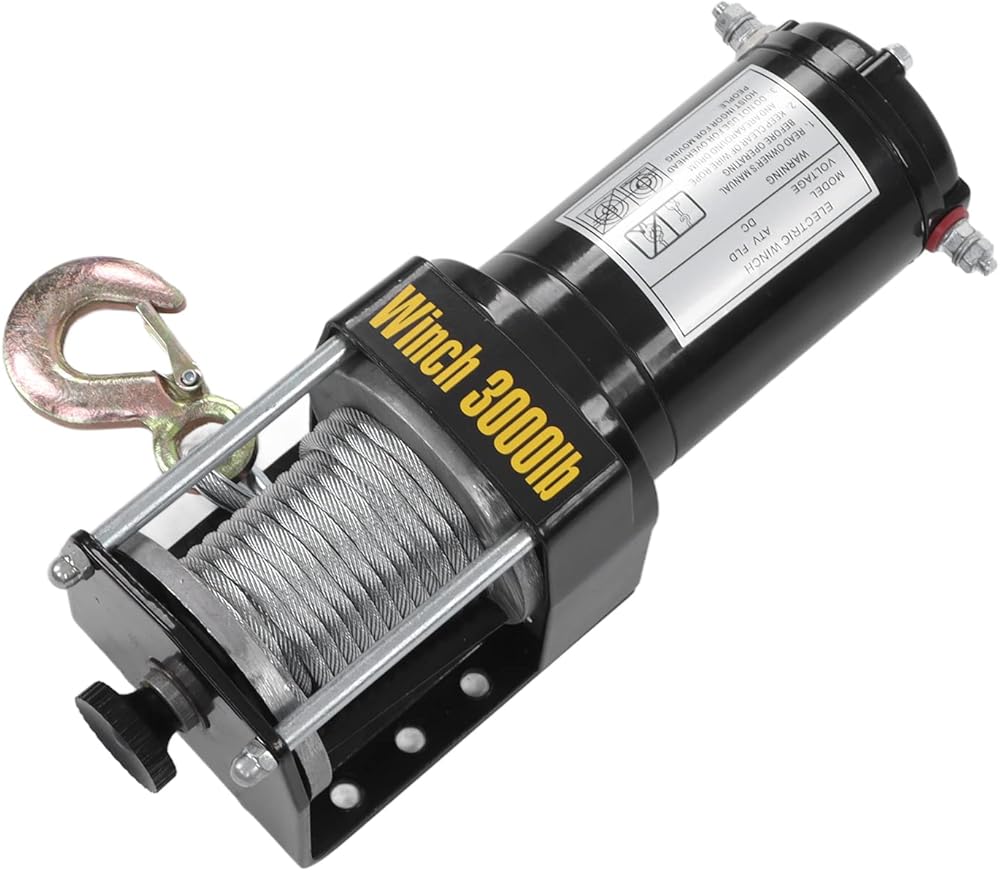

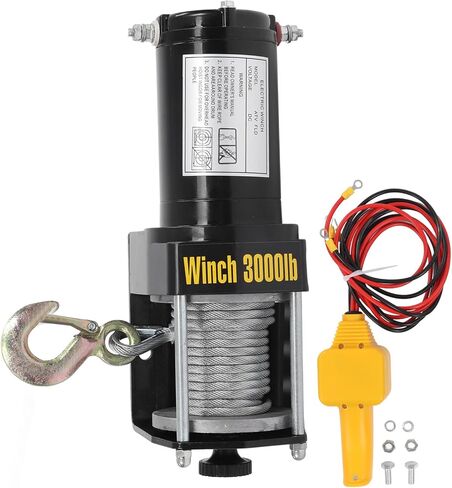

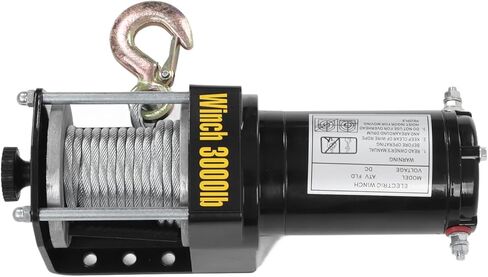

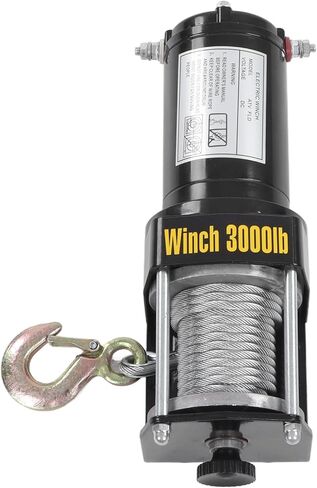

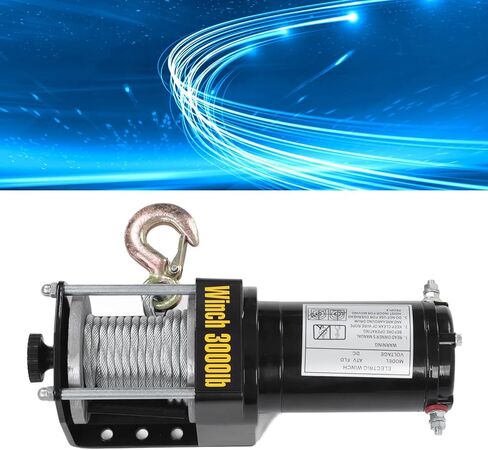

Item Type: Electric Winch Kit
Material: Alloy steel, stainless steel, copper
Rated Pull: 3000lbs (1361kg)
Motor: 1.1kw/1.4hp
Gear Ratio: 150 to 1
Mode: Planetary gear
Wire Rope: Diameter: Approx. 4.8mm / 0.19in, Length: Approx. 6meter / 19.69ft
Roll Size(diameter x length): Approx. 31.5 x 72mm / 1.24 x 2.8in
Braking Device: Automatic brake
Dimension(L x W x H): Approx. 299 x 100 x 105mm / 11.8 x 4 x 4.1in
Pulling force, speed, current
Pulling force Ibs(kg) Speed ft/min(m/min) Current(A)
0 10.8)3.3) 14
1000(454) 8.2(2.5) 60
2000(907) 3.6(1.1) 100
3000(1360) 2.6(0.8) 130
Layer pulling force and layer rope capacity
Layer Rated pulling force lbs(kgs) Wire rope length on drum ft(m)
1 3000(1361) 4.6(14)
2 2320(1052) 11.5(3.5)
3 1890(858) 17.1(5.2)
4 1590(720) 24.6(7.5)
5 1380(620) 34.4(10.5)

Package List:
1 x Electric Winch
1 x
