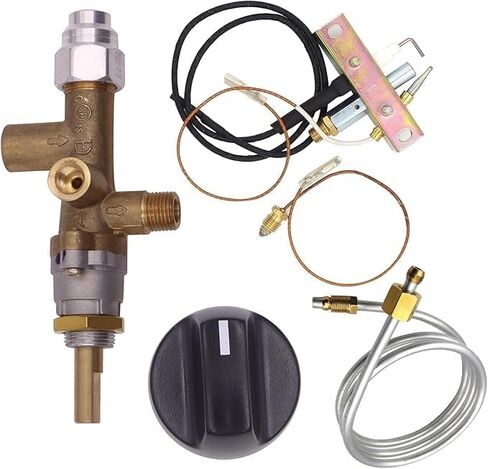

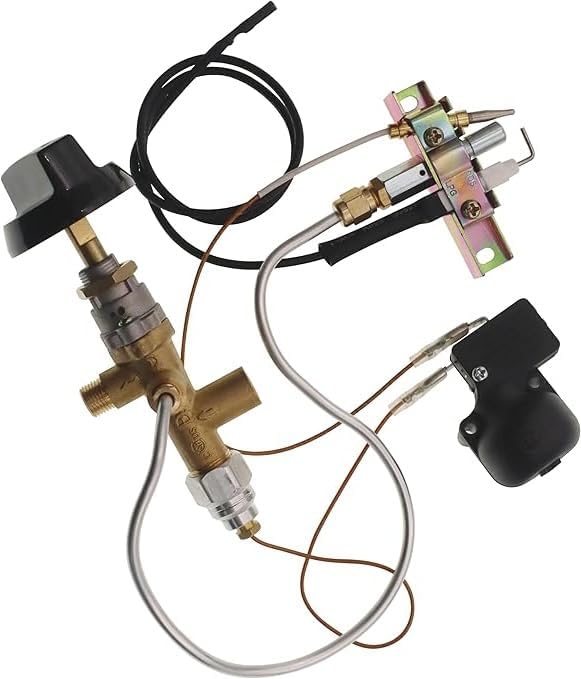

Pilot thread is M8*1 for copper tube Main control valve with inlet, outlet & Pilot with safetyWire length: 9.84inch on pilot burner & 7.87in for spare wire,Terminal: Flat 4.8mm universal

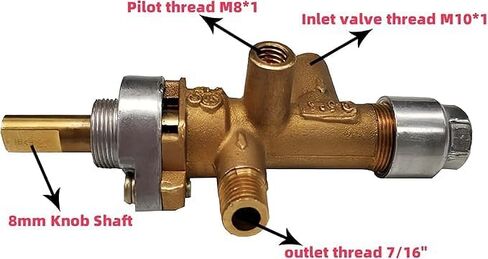

Inlet valve thread M10*1, outlet thread 7/16", Pilot thread M8*1 Please refer to the example picture for the appropriate assembly and installation. Copper sealing rings need to be placed at both ends of the aluminum tube, and nuts and caps need to be used to fasten them to the valve and the pilot light respectively.

Patio Heaters THP-ATM Anti Tilt Switch for Patio Heater,FD4 Dump Switch 250VAC 15A,125VAC 20A T125

2 pc 4mm Sealing rings,1 x 4mm aluminum tube 39.5 inches, 1 x internal thread M8*1 set of 4MM pipe, 1 x external thread M8*1 set of 4MM pipe Diameter of the aluminum tube is 0.16“(4mm),Valve Pilot Burner Tube Pipe Assembly,Gas Pilot Tubing

Widely Used for propane natural gas pilot burner assembly, Replacement for Robertshaw gas valve and oil tubing

Valve Pilot Burner Tube Pipe Assembly,Gas Pilot Tubing Both Side with M8*1 Male and Female Nut and 0.16"(4mm) compression fittin olive

The entire kit is easy to replace and solves various problems at once.After the valve is installed as a whole, it is necessary to test whether each part is connected tightly.

15A switch weak Current Dump switch for Propane Gas Heaters, Minivolt Current Model for Gas Only with 4.8mm terminals, This model is suitable for room gas heater, outdoor patio heater and other Thermoelectric gas products

For safety, if the heater tips or falls over, this device will automatically shut your heater off With two wires can connect dump switch for space heater

Can be used in Garden Treasures heater model 0574422 sold at Lowes in 2014/2015. Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS
