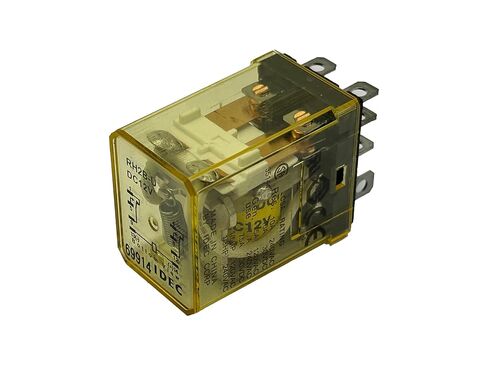

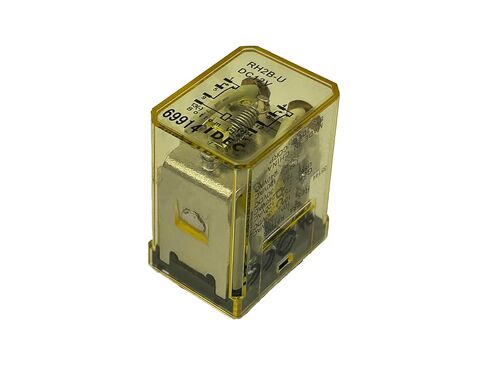

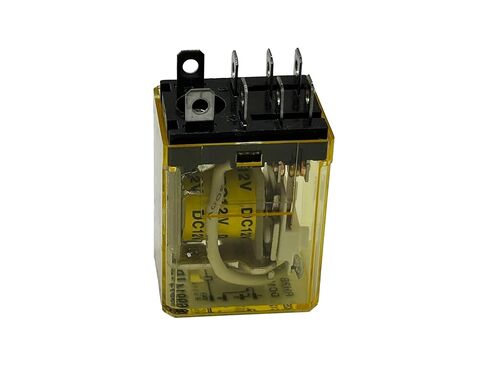

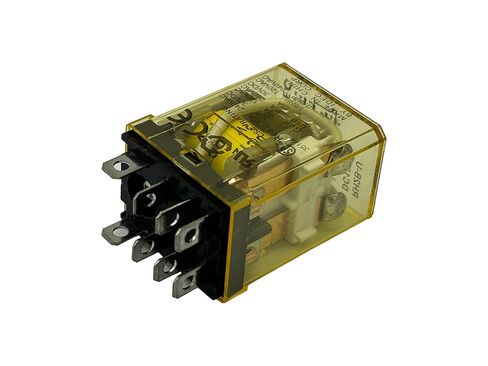

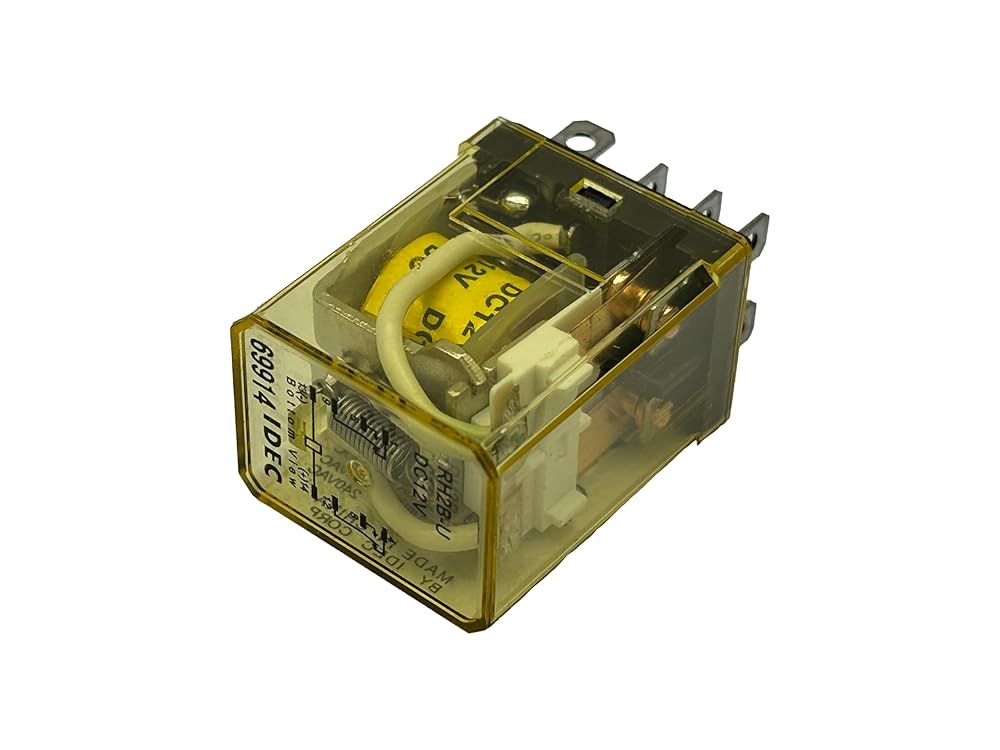

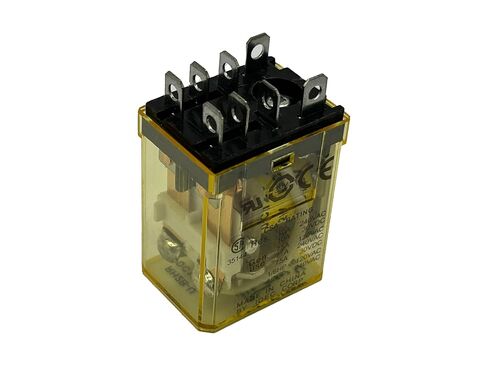

RH2B-UDC12V Plug-in 10A DPDT Power RH Series Relay

KWD 6
KWD 6.500
ماركة
oxinyra
وزن
90 g
– 1 +

مميزات خاصة

  • Power Relay RH2B-UDC12V: The RH2B-UDC12V power relay is designed for various applications and offers reliable performance. It is a 4-pin relay capable of handling a maximum current of 10A at 12VDC.
  • Versatile Contact Form: Equipped with 2 Form C (DPDT-NO, NC) contacts, offering flexibility in switching applications. Users can choose between Normally Open (NO) and Normally Closed (NC) configurations to suit their specific needs.
  • Efficient Terminal Design: Featuring blade terminals for secure and hassle-free electrical connections. The blade-shaped terminals ensure reliable contact and facilitate easy installation.
  • Convenient Plug-In Mounting: Designed for plug-in mounting, facilitating quick and convenient installation without the need for soldering or complex mounting procedures. Users can effortlessly integrate the relay into their circuits or systems.
  • Reliable Coil Voltage: Operates with a 12V DC coil voltage, providing compatibility with a wide range of electrical systems and power sources. This ensures consistent and reliable performance across various applications.

وصف

Mounting Type: Plug In Mount
Contact Type: Dpdt
Coil Voltage: 12 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 10 A
Contact Termination: Plug In
Mounting Style: Panel Mount
Terminal Shape: Blade Terminal
Switching Voltage: 220 VAC, 30 VDC
Coil Type: Non-Latching
Coil Resistance: 160 Ohms
Coil Current: 75 mA
