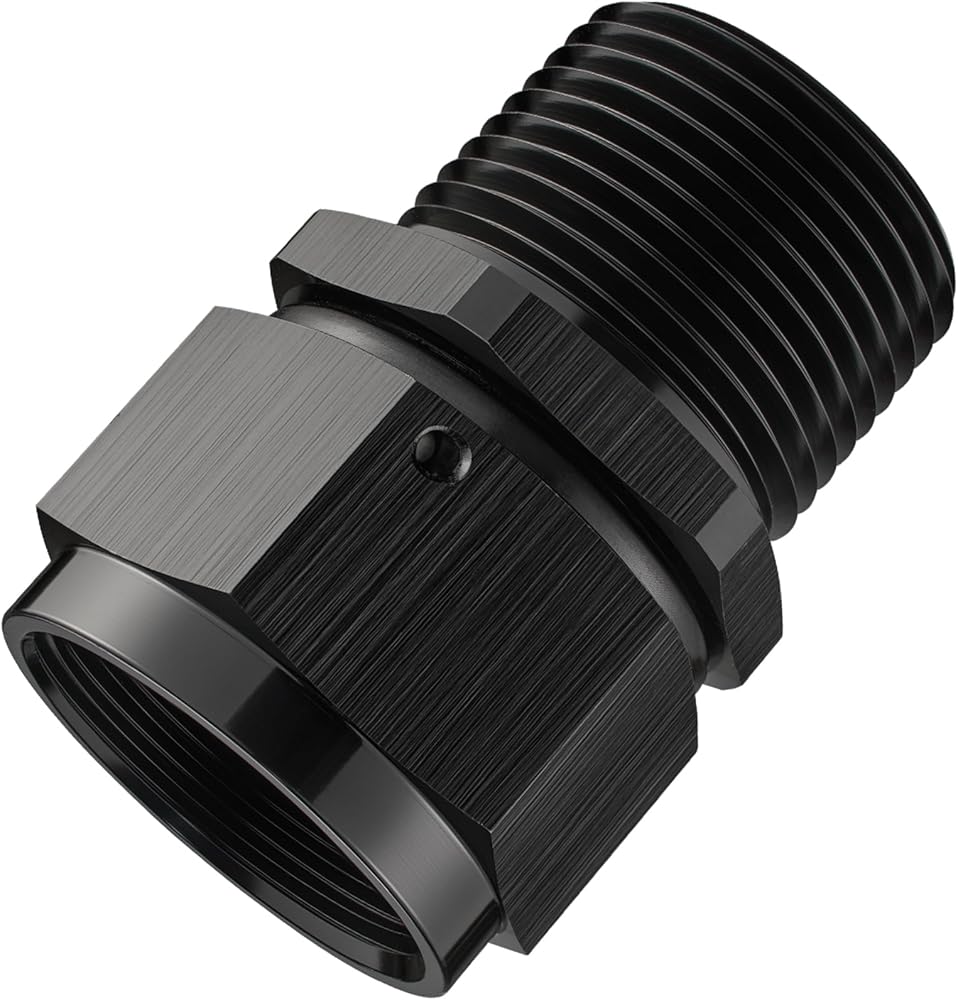

EVIL ENERGY 16AN Female to 1 NPT Pipe Swivel Adapter Fitting Black Aluminum

KWD 8

Brand
EVIL ENERGY
Weight
131 g
1 +

Special Features

  • Size: The thread size of NPT is 1-11.5 NPT, AN16 is 1-5/16-12 UNF
  • Parameter: Max Working Pressure: 1500PSI. Working Temperature Range: -40°F to 250°F
  • Sealing:The AN side of the flare is sealed by a 37 degree angle and the NPT thread side is sealed by a 60 degree tapered thread

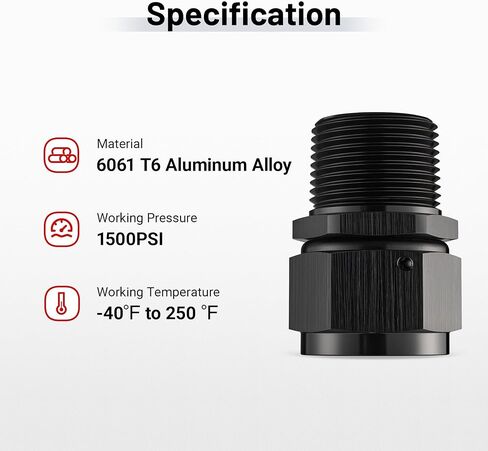

  • Material: Made of aluminum alloy 6061-T6, anodized black surface
  • Application : Widely used in fuel systems,brake systems,etc

Description

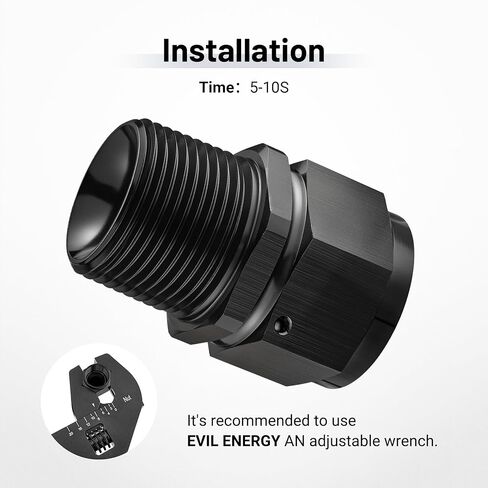

EVIL ENERGY is our brand, we're a direct and professional manufaturer, one of greatest manufacturer and exporter in Tuning parts include intake system, exhaust system, engine system, cooling system, interior&exterior parts.16AN female to male 1 NPT swivel adapter,the thread size of 16AN is 1-5/16-12 UNF, NPT is1-11.5 NPT.The AN side is sealed by a 37 degree angle and the NPT thread side is sealed by a 60 degree tapered thread.It is highly recommended to use sealant or PTFE tape at the NPT side to avoid leakage.Widely used in fuel line,fuel pump,brake line,fuel cell, LS engine,etc.
