4PCS 12mm ON/Off Metal Key Lock Switch Mini Electric Key Switch Ignition Starter Switch 2 Pin SPST 3A 250V AC/5A 125V AC with Terminal Wire Sheath Wiring Cap for Electric Bikes Go Kart

KWD 3
Brand
MKBKLLJY
Weight
80 g
Color12mm & 4 pin
– 1 +

Special Features

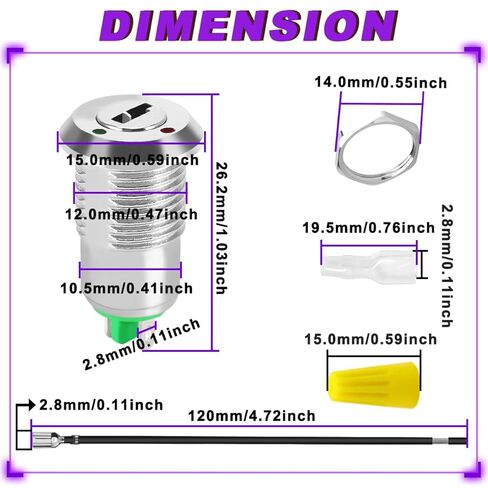

  • 【Dimension】Metal Key Lock Switch:15.0mm x 26.2mm/0.59inch x 1.03inch (W x H); Thread diameter12.0mm/0.47inch; Terminal line length:120mm/4.72inch; Wire Gauge:22AWG; Wiring Cap Width: 6.3.mm/0.24inch; Sheath Inner diameter:2.8mm/0.11inch.
  • 【Wide Application】Metal Key Lock Switch is widely used in electric scooters, golf carts, motorcycles, karts, electric bicycles, smart homes, ships, electronic equipment, industrial fields, etc.
  • 【3A 250V AC 】Indicates that the device can safely pass 3 amperes of current at 250 volts AC.
  • 【5A 125V AC】Indicates that the device can safely pass 5 amperes of current at 125 volts AC.

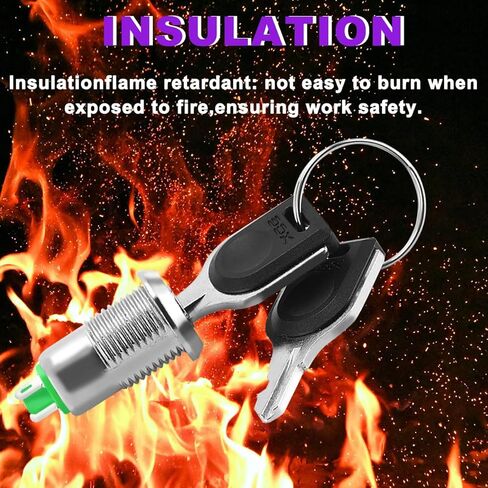

  • 【High conductivity】The materials used are stainless steel and nickel-plated copper, which not only have good conductivity, but also have good mechanical properties and corrosion resistance, which can ensure smooth current transmission inside the equipment and avoid malfunctions caused by poor contact.
  • 【High Sensitivity】The switch knob responds quickly. You only need to apply very little force to turn it to adjust to the desired setting. The operation is smooth and simple.
  • 【Package Include】4PCS Metal Key Lock Switch 8PCS Key 8PCS Red Terminal Wire 8PCS Black Terminal Wire 16PCS 2.8mm Sheath 10PCS Wiring Cap

Description

Detail:

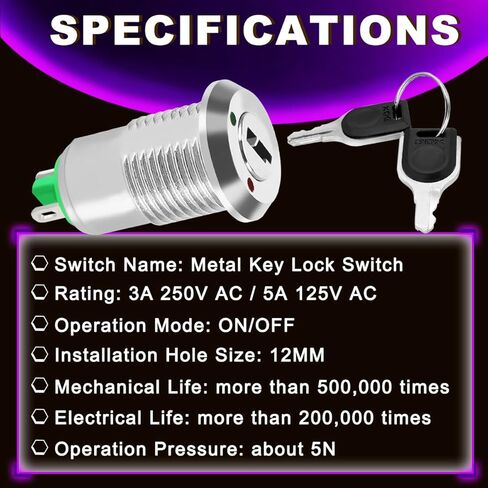

Product name: Metal Key Lock Switch
Rating: 3A 250V AC / 5A 125V AC
Operation Mode: ON/OFF
Number of Positions: 2
Terminal: pin
Connector Type:Plug In
International Protection Rating:IP54
Installation hole size: 12MM
Shell material: nickel-plated brass/stainless steel
Mechanical life: more than 500,000 times
Electrical life: more than 200,000 times
Operation pressure: about 5N

Please pay attention to the rated voltage and current limit of the switch, and do not apply voltage or current exceeding the limit to the switch. Otherwise, the switch may be damaged.

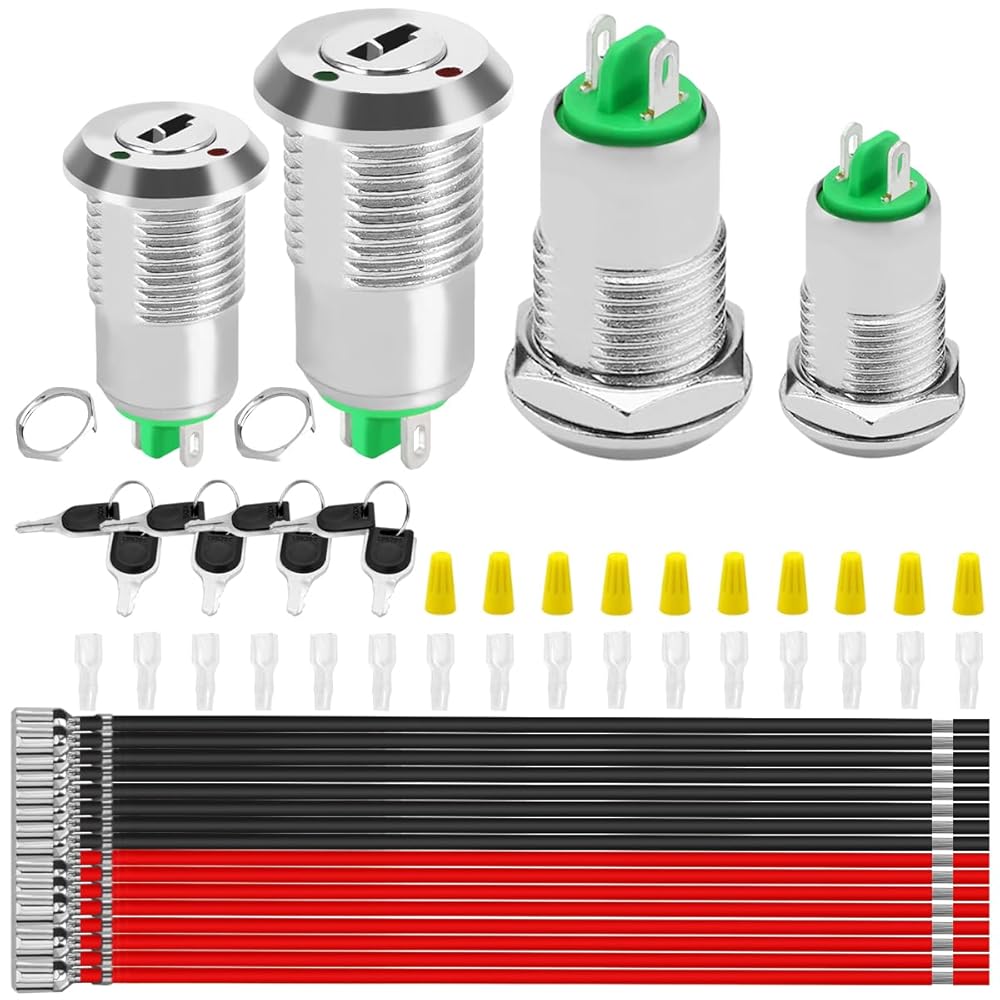

Package Include:
4PCS Metal Key Lock Switch
8PCS Key
8PCS Red Terminal Wire
8PCS Black Terminal Wire
16PCS 2.8mm Sheath
10PCS Wiring Cap
